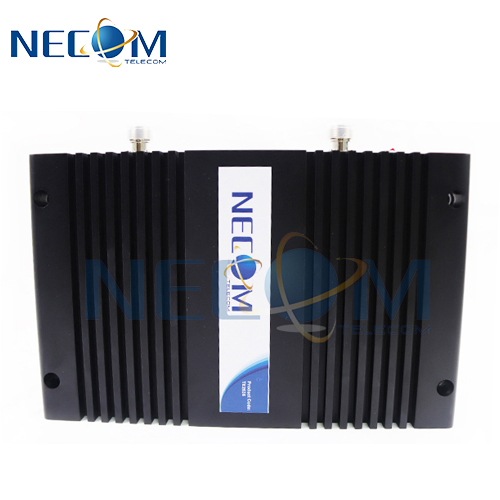

Cell Phone Signal Booster Pico-Repeater 3G2600MHz Wireless Signal Extender
Pico-Repeater TE-2630 2633 2635B
Brief Description:
2600MHz Pico-Repeater is intended to strengthen the signal of 2600MHz mobile phone in the buildings. Ideal for use in areas where the 2600MHz signal is weak to cause Call dropout or Cant connection. The device improves the voice calls and data VOICE GPRS and EDGE (depends of the signal operator).
Features:
*High system gains.
*Full duplex and double-end design, external power supply, and convenient installation.
*ALC technology with auto-steady function adopted.
*Provide power indication and uplink and downlink indications.
*With the amplified linear power, the inter-modulation an spuriousness are suppressed effectively.
*The reliability conforms to GB6993-86 standards.
*The electromagnetic compatibility conforms to ETS300 609-4 standards.
Applicable place:
It can be applied in Building rooms there have weak signal of mobile.
Specification:
Frequency Range:
TE-2635B (Uplink:2500-2570MHz; Downlink:2620-2690MHz;);
Gain: TE-2635B (Uplink)Gp≥80dB; (Downlink):Gp≥85dB;
Outout Power: TE-2635B ≥35dBm;
Pass band ripple: ≤4dB;
Guard band rejection:(BW-60dB) ≤42MHz;
（BW-70dB）≤45MHz;
I/O impedance: 50Ω/N Connector;
I/O return loss:≤-10dB;
Noise figure:≤-8dB;
Intermodulation attenuation (Po=13dBm):≤-40dBm;
Transmission: ≤0.5μs;
Ambient:-10℃-50℃;
Power Supply: AC110-220V±10%/45-55Hz;
Size:148mm×106mm×33mm;
Reliability:To the GB6993-86 standard;
Electromagnetic:To the ETS300 694-4 standard;
Function:
a) Power supply LED denote;
b) Export power LED denote;
Order Information:
Pico-Repeater 3G2600MHz TE-2635B:Output power 35dBm/Gain 85dB Cover area 3500-4000 square meters;
Package contents:
1 pcs booster
1 set power supply
1 pcs user manual
1 set installation screws
