VS-MPDJ07 Backpack Counter-Drone Jammer: 7-Band, 350W Portable Drone Defense for Security Teams

Drones have become part of everyday life — flying over stadiums, power plants, airports, private estates and emergency scenes. Most flights are harmless, but a single unauthorized UAV can disrupt an event, invade privacy, or threaten a critical operation. Stationary counter-drone systems protect one fixed point. The problem? Threats don't stand still. Neither should your defense. The Vodasafe VS-MPDJ07 is a backpack-mounted, 7-band counter-drone system that packs 350 W of jamming power onto your team's back — built for security units, first responders and infrastructure teams that need to move fast and secure anywhere.

Why Portable Counter-Drone Protection Matters More Than Ever

Traditional anti-drone installations — tower-mounted or vehicle-based systems — are excellent at guarding a single perimeter. But modern security work is mobile:

·       Patrols and convoys change position constantly and cannot rely on fixed coverage.

·       Temporary events (concerts, sports, political summits) need protection that deploys in minutes, not days.

·       Large or multi-site venues would otherwise require several expensive fixed systems.

·       Field and border operations often take place far from any power outlet or installation.

A portable counter-drone system closes this gap. It gives an operator full airspace control on foot — no vehicle, no fixed tower, no infrastructure required.

Meet the Vodasafe VS-MPDJ07

The VS-MPDJ07 is a high-power, backpack-mounted counter-drone jammer developed by SZ Vodasafe, a security and countermeasure manufacturer serving customers worldwide since 2010. It combines seven independent jamming channels, a rugged field-ready build and an ergonomic backpack design — so one operator can neutralize unauthorized drones across a wide area, wherever the mission takes them.

Weighing only 16.2 kg including its built-in battery, the VS-MPDJ07 is significantly lighter than many competing backpack jammers, and its 49 × 35 × 19 cm body fits easily into vehicle trunks and equipment rooms when not in use.

Seven Bands Cover the Drones Your Team Will Actually Face

The VS-MPDJ07 is built around 7 independent jamming channels, each delivering a stable 50 W of output — 350 W total. Together they cover the frequency bands used by mainstream consumer and commercial drones, ensuring compatibility with more than 95% of drones on the market.

Table 1— VS-MPDJ07 7-band jamming channels

Because the channels operate independently, operators can activate only the bands they need — for most scenarios, engaging 2.4 GHz, 5.8 GHz and GPS L1 is enough to counter over 95% of common drones while keeping interference targeted.

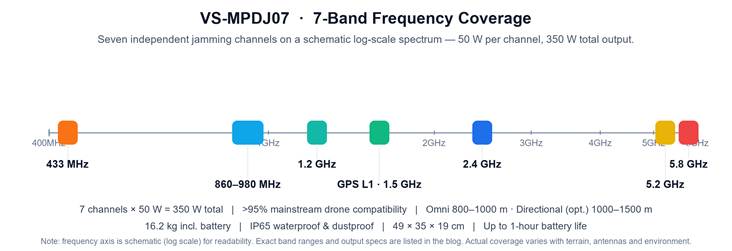

Figure 1 — VS-MPDJ07 7-band frequency coverage.

Built for the Field, Not Just the Showroom

Field equipment earns its keep in rain, dust, heat and rough handling. The VS-MPDJ07 is engineered for exactly those conditions:

Lightweight, durable casing — high-quality plastic construction keeps weight down while protecting internal components; a public-safety-grade resin coating resists water, dust, corrosion and extreme temperatures.

IP65 protection — fully protected against dust ingress and low-pressure water jets, from humid rainforests to arid deserts.

Impact-resistant design — withstands minor impacts and vibration during field operations and outdoor events.

Smart cooling system — an ultra-large heat sink plus two large-diameter cooling fans keep power amplifiers at optimal temperatures, so performance stays consistent even in extended jamming sessions.

Wide operating range — works from -20 °C to 75 °C, with 35%–95% (non-condensing) humidity tolerance.

Powered for All-Day Operations

The VS-MPDJ07 offers three power paths so missions are never cut short:

AC input (100V–240V) — global voltage compatibility for stationary deployment at checkpoints, venues and facilities.

DC input (24V) — connect to vehicle batteries or external power for mobile operations.

Built-in rechargeable battery — a 24V 30Ah lithium pack delivers up to 1 hour of continuous operation on a full charge, with overcharge, over-discharge and short-circuit protection for safety and longevity.

Simple Enough for Rapid Deployment

When a drone appears overhead, there is no time for complicated setup. The VS-MPDJ07 is designed to be operated by users of any technical level:

Numbered antenna connections — each antenna port and antenna is clearly numbered, preventing misconnections that can cause short circuits or reduced performance.

Intuitive LCD display — shows remaining battery, active jamming channels and operating status at a glance.

Remote control included — dedicated buttons for each channel let the operator switch specific bands on or off with a single press.

Fast response — jamming takes effect within 3–5 seconds; affected drones immediately lose control and either return to their launch point or land safely, minimizing collateral risk.

VS-MPDJ07 Specifications at a Glance

Table 2— VS-MPDJ07 technical specifications

Where Security Teams Deploy the VS-MPDJ07

The VS-MPDJ07 is a versatile tool for a wide range of missions:

Event security — protect concerts, sports events, weddings and large gatherings from drones that pose safety risks or invade privacy.

Critical infrastructure — safeguard power plants, airports, seaports, government buildings and public safety facilities from surveillance, sabotage or attack.

Private property — defend residential estates, farms, vineyards and industrial complexes from trespassing drones, theft or vandalism.

Law enforcement & border operations — support police, border patrol and public safety units during missions, surveillance operations and emergency responses.

Film & media production — prevent unauthorized drones from interfering with shoots, live broadcasts and aerial photography.

Public safety & emergency services — help fire departments, ambulance services and disaster teams clear airspace of drones that hinder rescue operations.

What's in the Box

1 × VS-MPDJ07 Backpack-Mounted Counter-Drone Jammer

7 × High-Gain Omnidirectional Antennas (16 dBi)

1 × High-Gain Directional Panel Antenna (16 dBi, optional)

1 × AC Power Charger (100V–240V)

1 × DC Power Charger (24V)

1 × Remote Control (with battery)

1 × User Manual (English)

1 × Carry Bag (for accessories)

1 × Waist Belt (for backpack ergonomics)

Why Security Buyers Choose Vodasafe

Trusted manufacturer — SZ Vodasafe has designed and produced security and countermeasure technologies for global customers since 2010.

Proven coverage — 7-band architecture ensures compatibility with nearly all mainstream drones in any scenario.

Genuinely portable — lightweight backpack design with padded, adjustable straps and waist belt for extended operations.

Built to last — resin-coated, IP65-rated construction and an efficient cooling system handle harsh environments and continuous use.

Easy to operate — intuitive controls, clear LCD and numbered antenna connections suit users of all experience levels.

·       Real after-sales support — 1-year warranty, lifetime maintenance, 24/7 technical support, a 24-hour response to inquiries, plus an English manual, video tutorials and optional on-site training.

Compliance and Responsible Use

The VS-MPDJ07 is designed for authorized security, law enforcement and defense operators. Signal countermeasure equipment is regulated in many countries — buyers are responsible for ensuring lawful use, applicable authorization and any required licensing in their jurisdiction. Vodasafe recommends deploying this system only for legitimate security operations and in full compliance with local laws.
