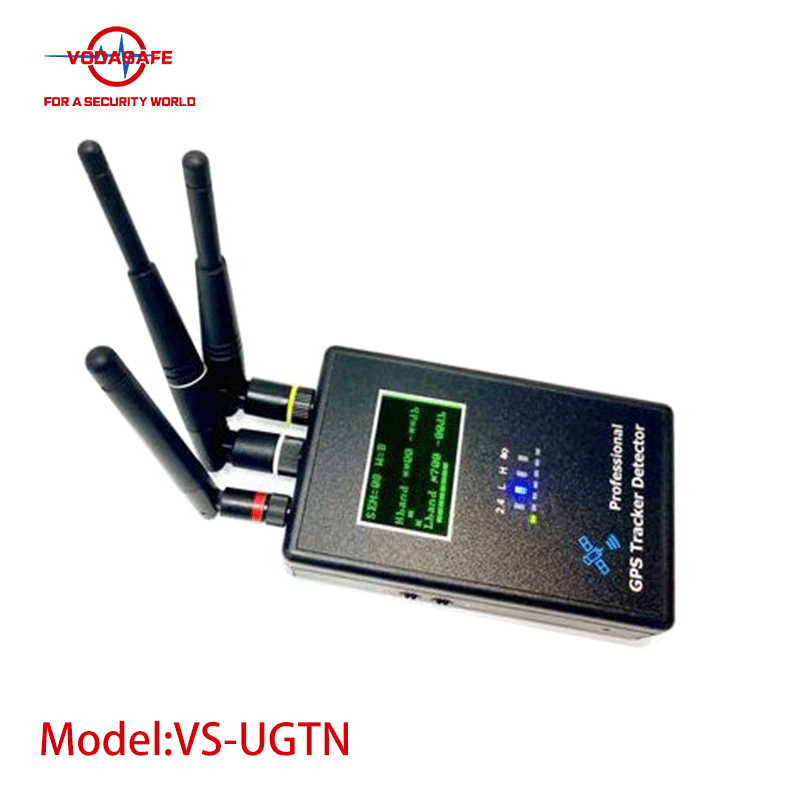

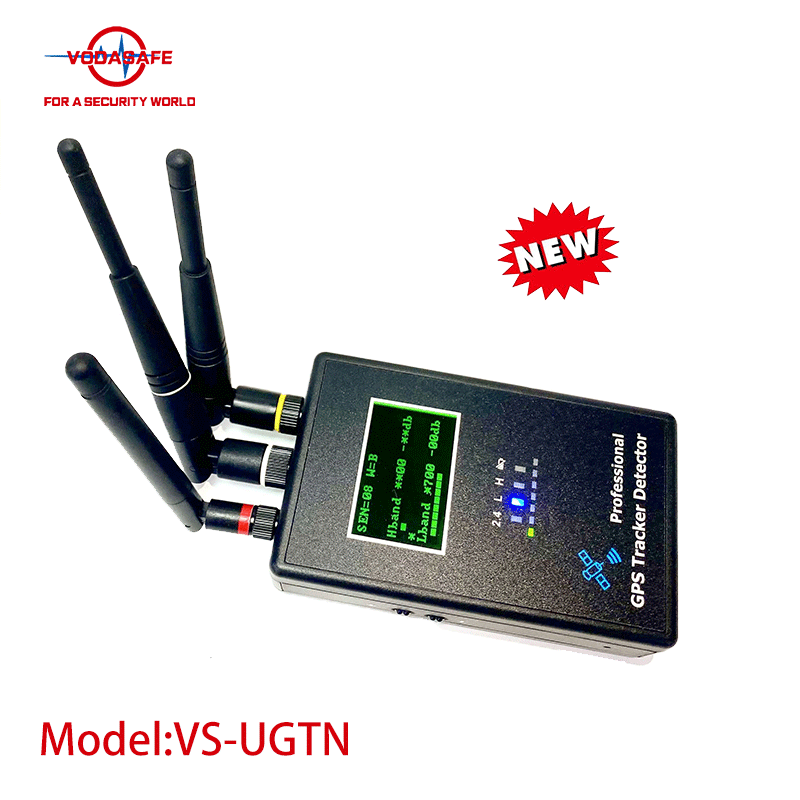

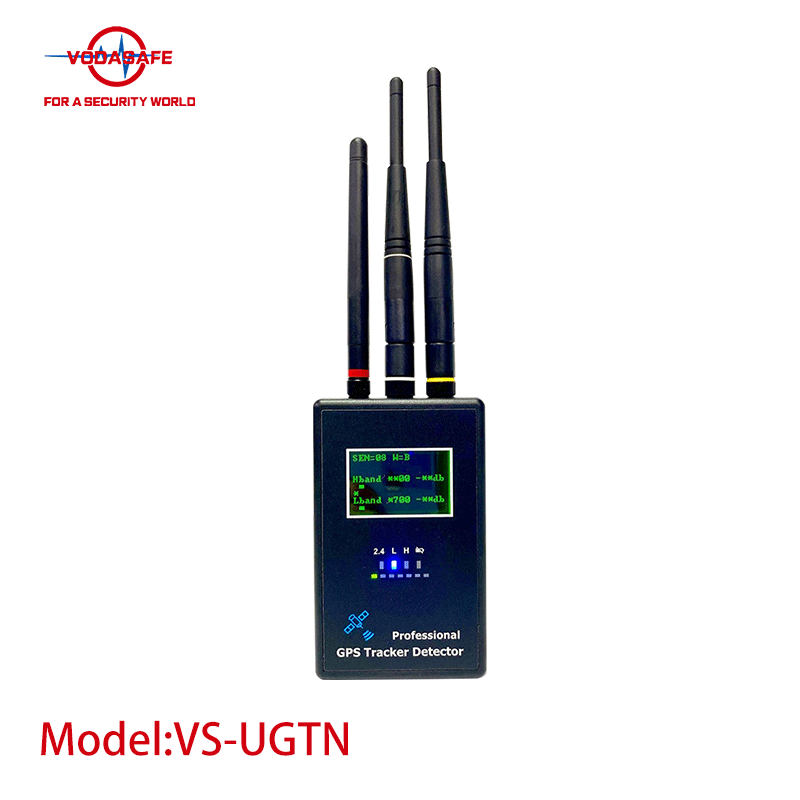

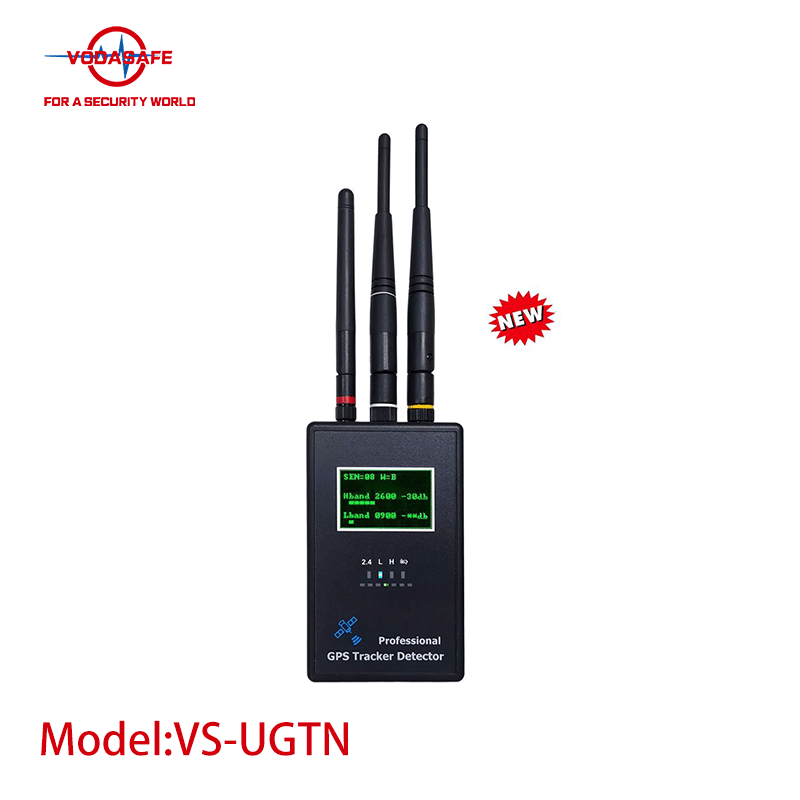

VS-UGTN Professional GPS Tracker Detector by SZ Vodasafe
Description:
The VS-UGTN Professional GPS Tracker Detector, developed by SZ Vodasafe, is a cutting-edge device designed to detect 2G/3G/4G GPS trackers and hidden 2.4GHz WiFi IP cameras. Engineered for precision and reliability, this detector offers advanced features to safeguard your privacy in various environments, from vehicles to private spaces. Its sophisticated design and robust functionality make it an essential tool for anyone concerned about unauthorized tracking or surveillance.
Features:
Comprehensive Signal Detection
GPS Tracker Detection: Effectively identifies GPS trackers using GPRS, SMS, and 2G/3G/4G network technologies, regardless of transmission protocols.
2.4GHz WiFi IP Camera Detection: Specialized module to detect hidden cameras with transmission power as low as 1mW, up to 4 meters away at Level 08 sensitivity.
Frequency Bands: Covers low bands (700, 800, 900 MHz) and high bands (1700, 1800, 1900, 2100, 2300, 2400, 2600 MHz), ensuring broad-spectrum coverage.
Advanced Sensitivity Control
17 Sensitivity Levels (00-16): Divided into two benchmarks:
Low (L): Levels 00-09 (10 levels) for precise near-range detection
High (H): Levels 10-16 (7 levels) for extended detection range
Default Sensitivity: Level 08, detecting mobile signals up to 2.1 meters (default) or 5 meters (as specified), adjustable via +/– buttons.
Clear Signal Indication
LCD Display: Shows detected frequency band, signal strength (dB), and 8-bar signal strength indicator (representing 7 levels).
LED Indicators:
Upper row: Blue LEDs for 2.4GHz detection, sensitivity (L/H), and low battery (red).
Lower row: Green LED for band scanning.
Versatile Warning Modes
Four Modes:
BV: Beep + Vibration (Default)
B: Beep only
V: Vibration only
S: Silent (compatible with earphones for discreet detection)
Flexible Power Options
Battery Compatibility:
4 x AAA/UM-4 rechargeable batteries or dry batteries
5V 1A USB charger
Power bank support (mini USB port on right bottom side)
Battery Life: Approximately 6 hours in standby mode when fully charged
Charging Time: ~6 hours for a full charge (red light for quick charging, green for slow charging at 70% capacity)
Robust Construction
Dimensions: 11.6 x 7 x 3.3 cm (excluding antenna)
Weight: Approximately 215g
Durability: Designed to resist interference, with advanced noise reduction technology
Technical Specifications
|
Detection Frequencies |
700, 800, 900, 1700, 1800, 1900, 2100, 2300, 2400, 2600 MHz (2G/3G/4G); 2.4GHz (WiFi IP cameras) |
|
Sensitivity Levels |
00-16 (17 levels total), with L (00-09) and H (10-16) benchmarks |
|
Signal Strength Indication |
8 bars representing 7 levels |
|
Warning Modes |
Beep + Vibration, Beep, Vibration, Silent (with earphone support) |
|
Power Source |
4x AAA/UM-4 batteries, 5V USB charger, power bank |
|
Battery Life (Standby) |
~6 hours |
|
Charging Time |
~6 hours |
|
Dimensions |
11.6 x 7 x 3.3 cm (excluding antenna) |
|
Weight |
~215g |
How to Use
Battery Installation
Locate the battery compartment on the rear side.
Insert 4x AAA/UM-4 batteries following the +/- polarity marks.
Secure the battery cover.
Power On/Off
Slide the power switch (marked "1" for on, "0" for off) located at the center of the right side.
Sensitivity Adjustment
Press + to increase sensitivity (extends detection range).
Press - to decrease sensitivity (narrows detection range for precise targeting).
2.4GHz Camera Detection Mode
Press and hold the + button for 2 seconds to activate. The '2.4' blue LED will light up.
In WiFi-heavy environments, turn off routers or set sensitivity to L to minimize interference.
Exit by pressing and holding + for 2 seconds.
Signal Source Search
Set warning mode to B or S (use earphone in Silent mode).
Press both + and - to lock the detected frequency band (asterisk * appears above the band).
For vehicle detection: Drive at >10 mph (16 km/h) to activate motion-sensitive trackers, then sweep the device.
When signal strength exceeds -10 dB (7 bars), lower sensitivity to approach the source gradually.
Unlock the band by pressing both + and - if no signal is detected, then increase sensitivity to rescan.
Safety & Usage Notes
Battery Care:
Remove dry batteries before connecting a power bank or charger.
Avoid overcharging (>24 hours) or over-discharging to prevent battery damage.
Remove batteries if unused for over a month to prevent leakage.
Environmental Protection:
Keep away from water, extreme heat, or humidity.
Avoid impacts or dropping.
Do not use the antenna to touch metal surfaces or signal sources.
Warranty:
Unauthorized repair or disassembly voids the warranty.
Damage from static electricity or improper use is not covered.
Applications
Vehicle Surveillance: Detect hidden GPS trackers in cars, motorcycles (do not use while riding), or commercial vehicles.
Privacy Protection: Scan dressing rooms, offices, or private spaces for hidden 2.4GHz WiFi IP cameras.
Personal Security: Ensure no unauthorized tracking devices are placed on personal belongings or vehicles.
Package List
VS-UGTN GPS Tracker Detector
User Manual
(Optional) USB Charging Cable
(Optional) Earphone for Silent Mode
Compliance & Warranty
Manufacturer: SZ Vodasafe
Made in China
Copyright © 2025 SZ Vodasafe. All rights reserved.
Warranty Terms: Refer to the separate warranty document for details.
Disclaimer
Specifications are subject to change without prior notice.
The device is intended as an auxiliary tool and does not replace professional supervision.
SZ Vodasafe assumes no liability for damage caused by misuse or malfunction.
For more information or support, contact SZ Vodasafe customer service. Stay protected with the VS-UGTN – your trusted partner in privacy and security.
