Cellphone Repeater

4glte 700 Te730 Full Band Pico-Repeater, Mobile Radio Repeater, Mobile Signal Booster, Wireless Repeater, GSM Repeater,

Item No.: TE-730
700MHz full-band micro-repeater 30dBm mobile signal repeater TE730, suitable for areas where the 700MHz signal in the building is weak, causing the call to be interrupted or unable to connect.
INQUIRY
Description
4glte 700 Te730 Full Band Pico-Repeater, Mobile Radio Repeater, Mobile Signal Booster, Wireless Repeater, GSM Repeater

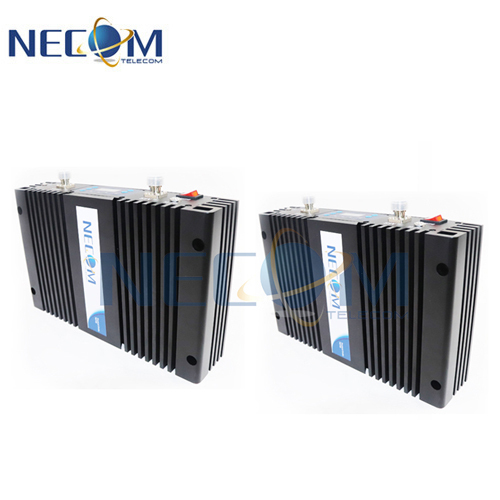

4GLTE 700 TE730 Full Band Pico-Repeater

Brief Description:
This model  signal booster 4glte700MHz,with an outdoor donor antenna could receive the signals and bring good signals in a relative good signal sources places and pass the signal to the amplifier and then spread it to where the
Signal is weak. Such as parking lots, basements, elevators and some hotels etc. These products need to be used in remote areas of the mountains.The machine can cover a range of 500-3000 square meters in some places where some signals are relatively simple.If the signal environment is not very good, the coverage area will be small.
Only amplifying the downlink signal will not effect on the operation of the base station.

Features:
*High system gains.
*Full duplex and double-end design, external power supply, and convenient installation.
*ALC technology with auto-steady function adopted.
*Provide power indication and uplink and downlink indications.
*With the amplified linear power, the inter-modulation and spuriousness are suppressed effectively.
*The reliability conforms to GB6993-86 standards.
*The electromagnetic compatibility conforms to ETS300 609-4 standards.

Applicable place:
It can be applied in Building rooms there have weak signal of mobile.
Specification:
Frequency Range:
1. TE-730B (Uplink: 703-748MHz; Downlink: 758-803MHz);
Gain:
1. TE-730B (Uplink)Gp≥75dB (Downlink) Gp≥80dB;
Outout Power
1. TE-730B ≥30dBm 1W;
Pass band ripple:≤4dB;
Guard band rejection: (BW-60dB)≤120MHz;
(BW-70dB)≤127MHz;
I/O impedance: 50Ω/N Connector;
I/O return loss: ≤-10dB;
Noise figure: ≤-8dB;
Inter-modulation attenuation(Po=13dBm):≤-40dBm;
Transmission: ≤0.5μs;
Ambient: -10℃-50℃;
Power Supply: AC110-220V±10%/45~55Hz;
Size: 350mm×230mm×60mm;
Weight: 4.5kg;
Reliability: To the GB6993-86 standard
Electromagnetic: To the ETS300 694-4 standard
Function:
a) Power supply LED denote
b) Export power LED denote

Package contents:
1 pcs booster
1 set power supply
1pcs user manual
1 set installation screws
