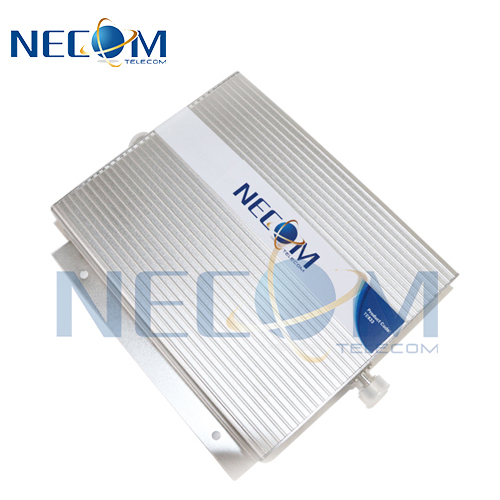

Pico-Repeater TE-833B
Brief Description:
850MHz Pico-Repeater is intended to strengthen the signal of 850mhz mobile p
hone in the buildings. Ideal for use in areas where the 850mhz signal is weak to cause Call dropout or Cant connection .The device improves the voice calls and data VOICE GPRS and EDGE (depends of the signal operator)
Features:
*High system gains.
*Full duplex and double-end design, external power supply, and convenient installation.
*ALC technology with auto-steady function adopted.
*Provide power indication and uplink and downlink indications.
*With the amplified linear power, the intermodulation an spuriousness are suppressed effectively.
*The reliability conforms to GB6993-86 standards.
*The electromagnetic compatibility conforms to ETS300 609-4 standards.
Applicable place:
It can be applied in Building rooms there have weak signal of mobile.
Specification:
Frequency range:
Uplink:824-849MHz;
Downlink:869-894MHz;
TE-833B
Gain(dB): Uplink: Gp≥75
Downlink:Gp≥80;
Output Power: ≥33dBm;
Pass band ripple: ≤4dB;
Guard band rejection:(BW-60dB)≤42MHz(BW-70dB)≤45MHz;
I/O impedance: 50Ω/N Connector;
I/O return loss: ≤-10dB;
Noise figure: ≤-8dB;
Intermodulation attenuation(Po=13dBm): ≤-40dBc;
Transmission: ≤0.5μs;
Ambient: -10℃~50℃;
Power supply: AC110~220V±10% 45~55Hz;
Size: 148mm×106mm×33mm;
Reliability: To the GB6993-86 standard;
Electromagnetic: To the ETS300 694-4 standard;
Function: a) Power supply LED denote b) Export power LED denote
Package contents:
1 pcs booster
1 set power supply
1pcs user manual
1 set installation screws
