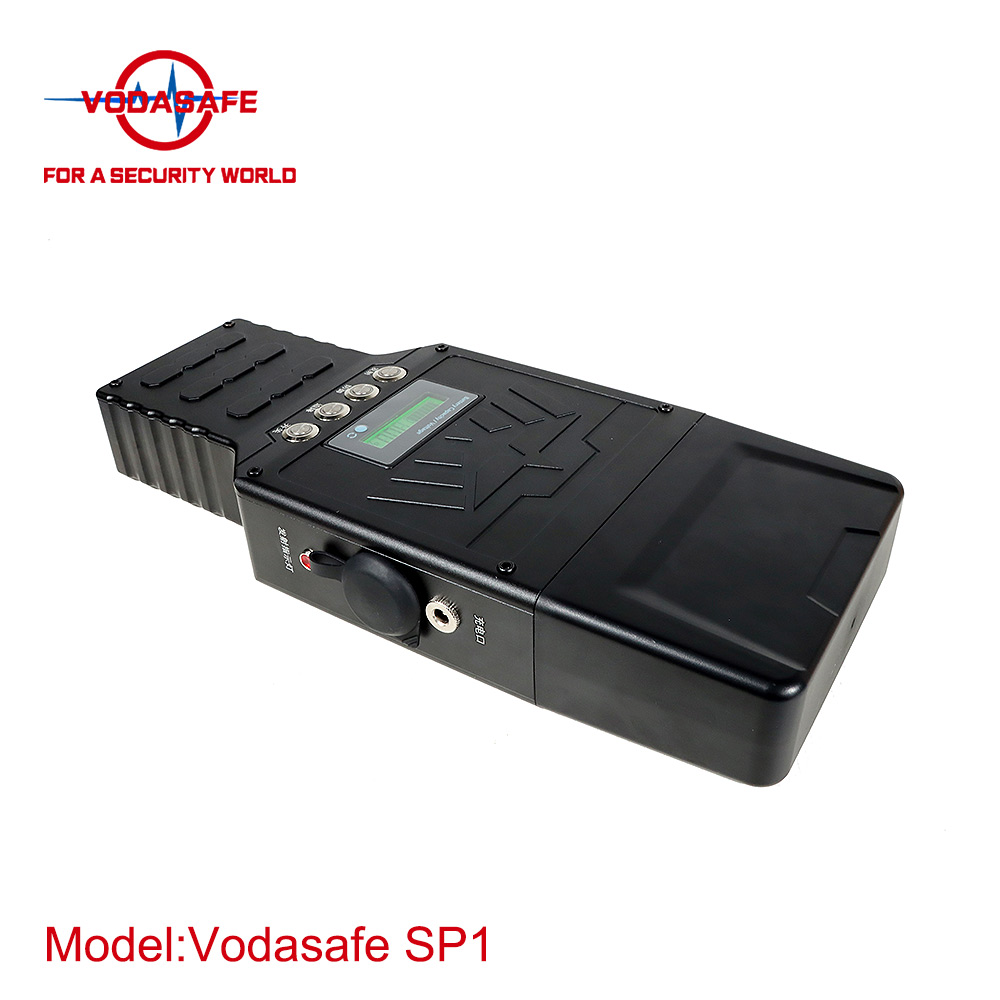

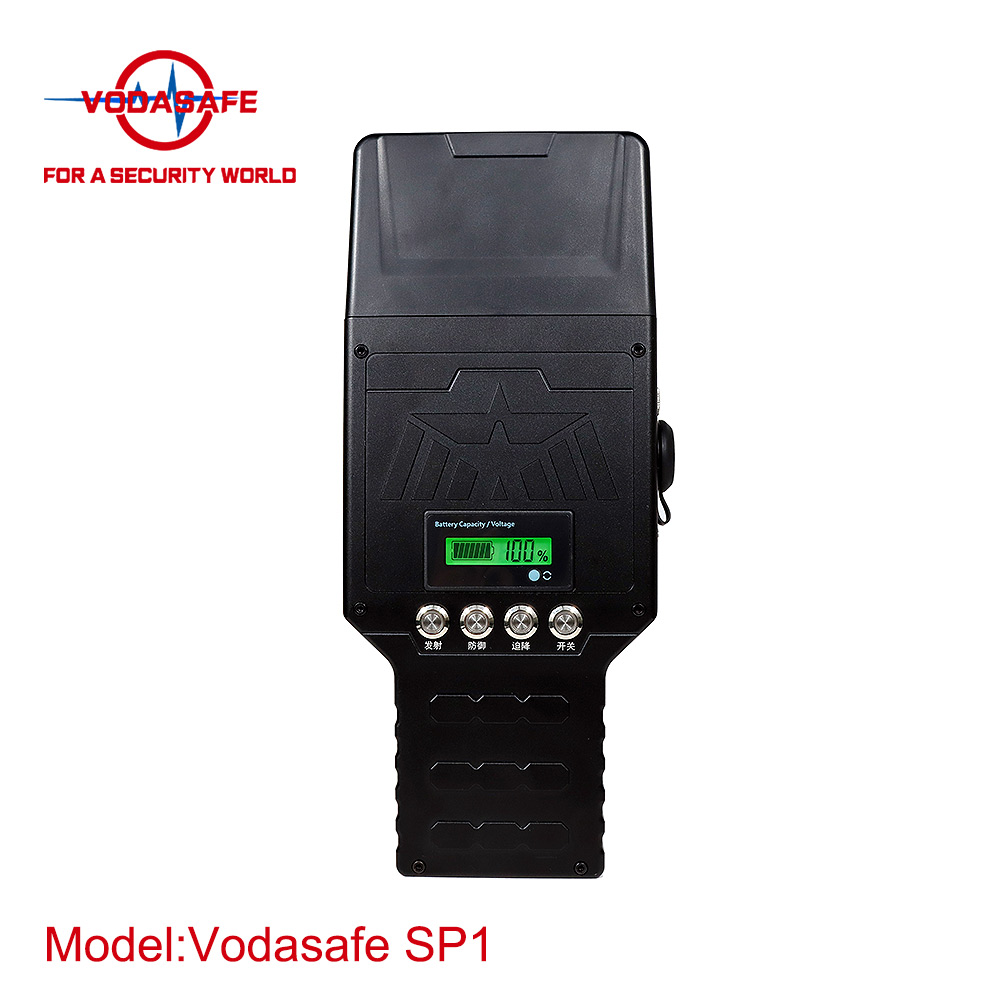

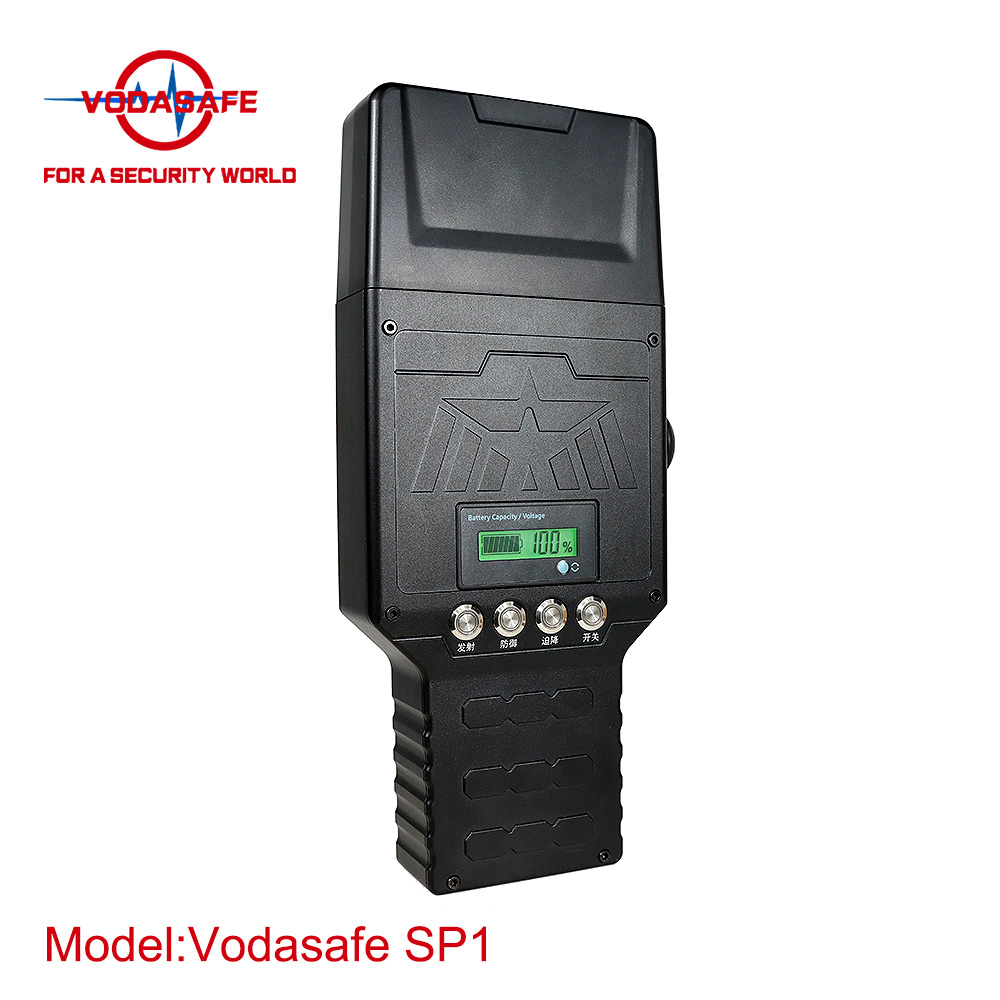

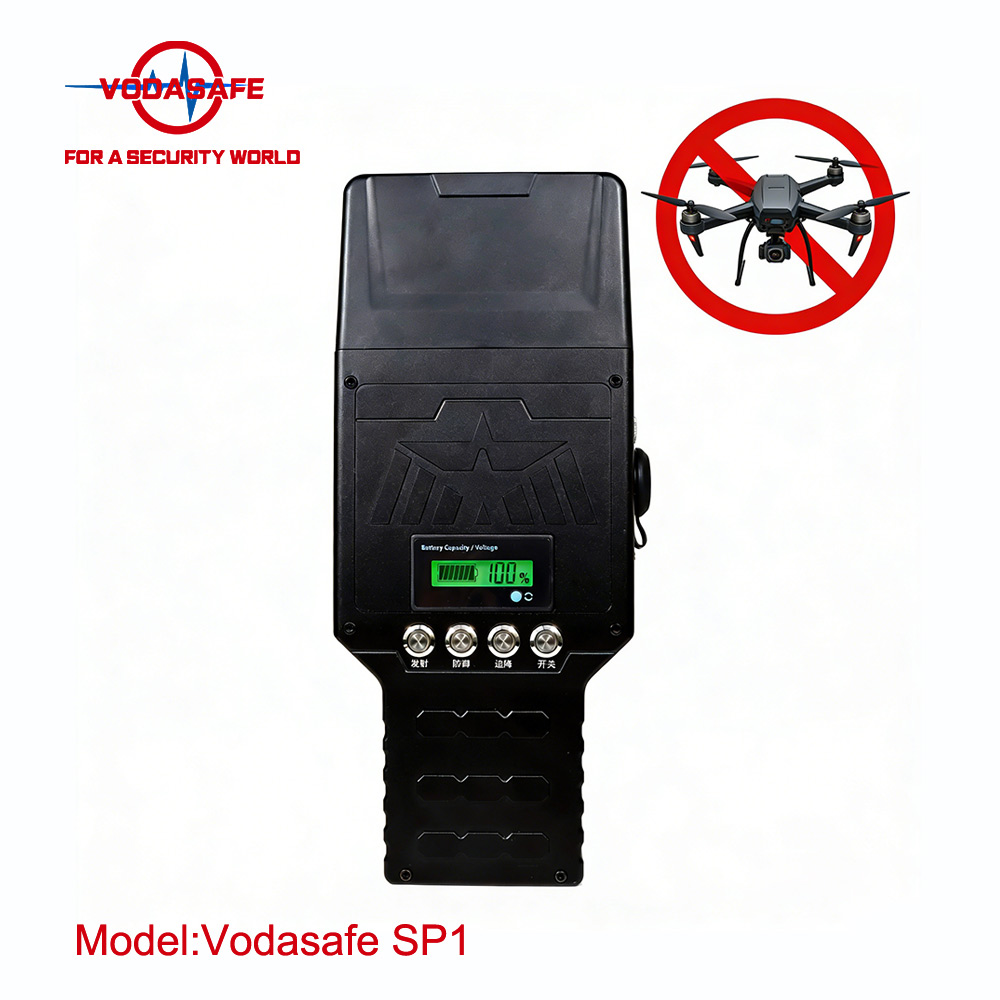

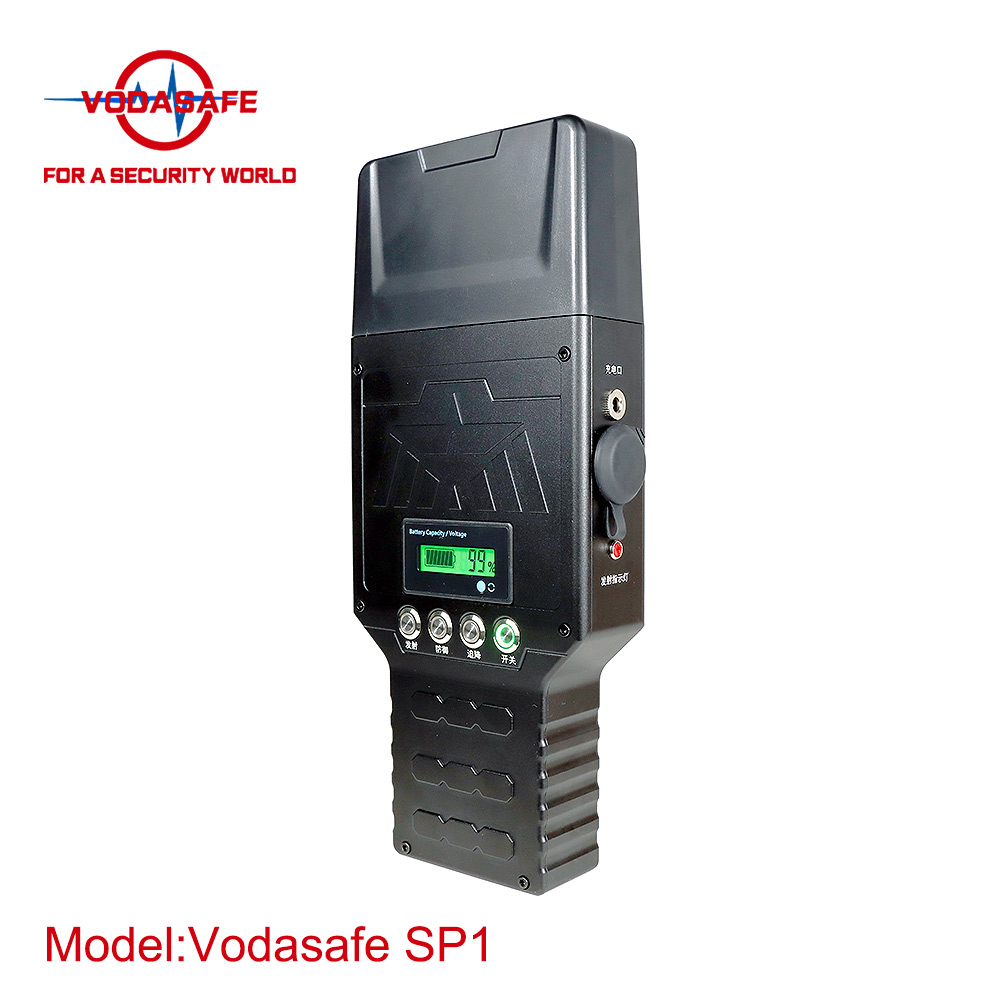

Handheld Navigation Deception Device
Model：Vodasafe SP1
PRODUCT INTRODUCTION
This navigation deception device is a highly accurate device for generating simulated navigation signals. By receiving real satellite signals to obtain precise time and real-time ephemeris data, achieve high-precision simulation of real signals, with a time synchronization accuracy of within 100ns. ,Acting on the satellite navigation system of "black-flying" UAV, forcing the target to be unable to fly according to the original track, realizing the target driving away, circular motion, no-fly zone and other treatment, so as to ensure the safety of low-altitude protected area.，realizes functions such as control and status reporting through RJ45 network interface communication.
Deception function：
Unmanned aerial vehicle directional disengagement: induce the unmanned aerial vehicle to disengage in a specified direction
Unmanned aerial vehicle navigation forced landing: trigger the unmanned aerial vehicle to perform an autonomous forced landing
Unmanned aerial vehicle navigation defense: force the unmanned aerial vehicle to be unable to enter the designated area
Product Features
1: Navigation deception can effectively deal with O3, O4 strong anti-jamming and 4G/5G UAVs, and the dry-to-pass ratio can reach 10:1

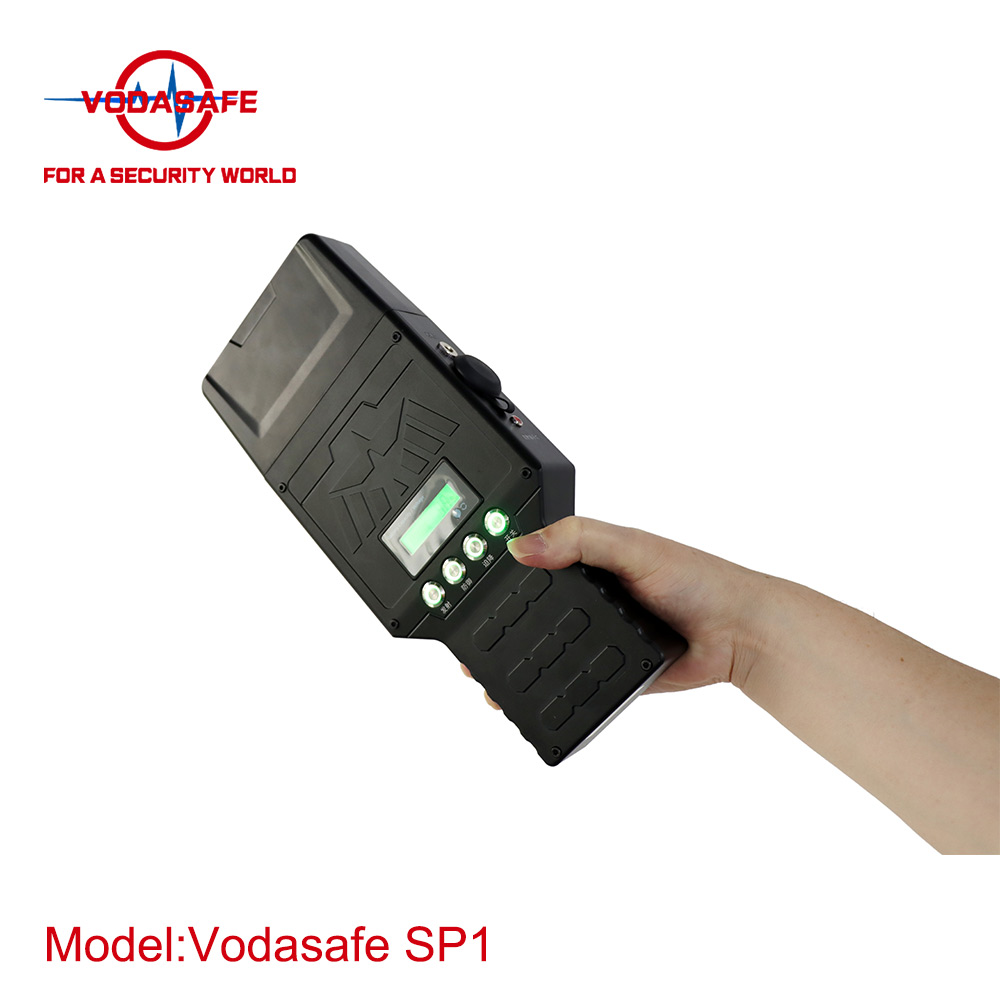

2: Handheld lightweight, easy to carry, suitable for rapid deployment in various emergency situations
3: Multi-target disposal, which can simultaneously induce "black flight" targets in multiple directions
4: The transmit power can be adjusted to meet the coverage requirements of different areas
5: adopt low power design, can run for a long time, suitable for long-time security task
6: RJ45 network port to connect the host computer software setting and check the working status
|
Item |
Indicators |
|
Frequency bands |
GNSS frequency point signals: GPS L1、GLONASS G1、BD B1、Galileo E1 |
|
Transmit power |
70dBm to +10dBm (default output +10dBm) |
|
Power adjustment step |
1dB |
|
deception range |
1000m |
|
Deception function |
No-fly zone, directional drive-away, circumferential defense |
|
Antenna Type |
Build in omni antennas |
|
Battery life |
≥4h Built-in battery (replaceable) |
|
Display |
Battery power display, working voltage |
|
Use Environment |
-20℃~70℃ |
|
Dimensions |
290X130X46 mm |
|
Weight |
1.5kg |
|
Package Weight |
4kg |
|
Upgrade Extension |
Support High Power Customized |
