Full-band mobile coverage

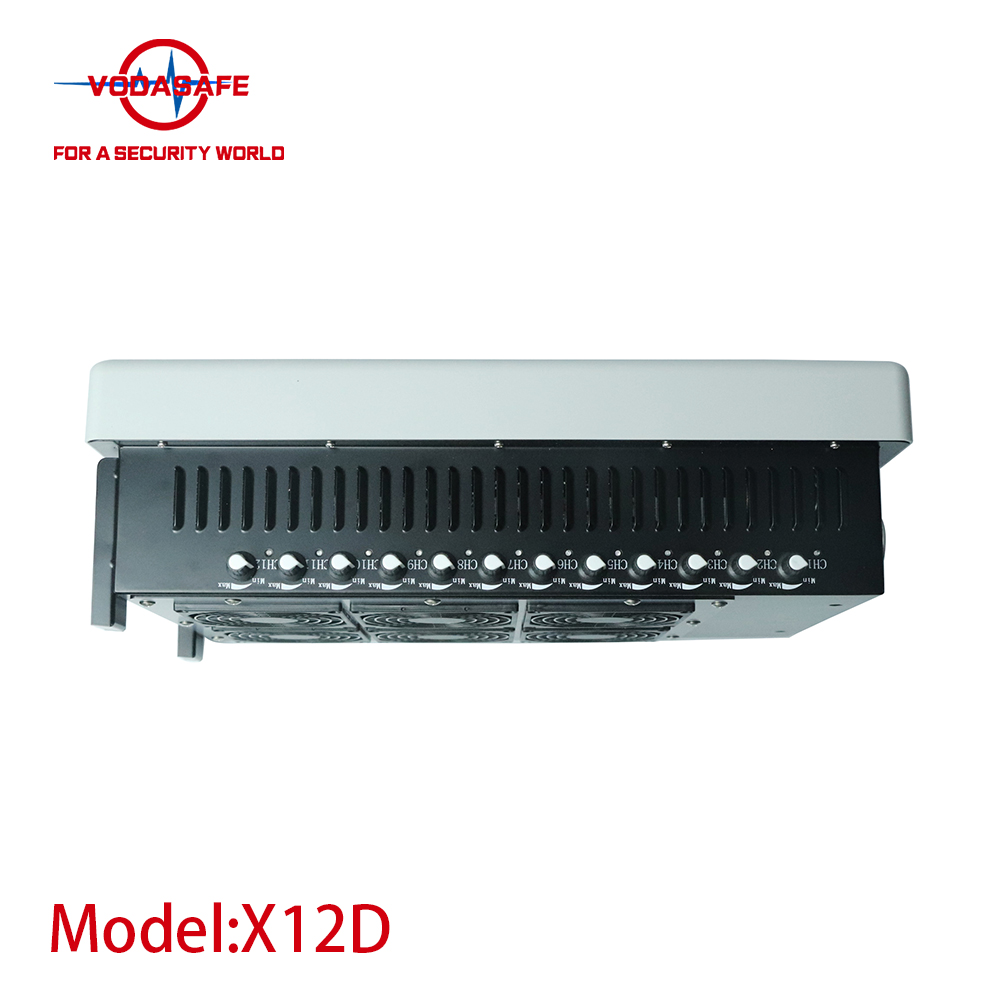

X12D is the nemesis of wireless cheating devices such as mobile phones, Wi-Fi, Bluetooth, and electronic watches. It serves as the security guardian and purification expert for confidential venues and standardized examination halls.
This jammer is a directional, full-band communication signal blocker, representing the seventh generation of eco-friendly signal jammers. It exclusively blocks the reception of mobile devices at the site, causing no impact whatsoever on surrounding base stations.
High-power
All models in this series employ channelized output, with individual transmitter power not exceeding 120W and each channel output ranging from 5W to 10W.
The X12D device utilizes a directional antenna array, significantly extending its effective jamming range. It blocks all mobile phone signals within 8 to 50 meters (depending on base station signal strength), completely severing communication between all mobile devices within the jamming zone and the outside world.
l Effectively shields GSM/CDMA/DCS/WCDMA/LTE/Wi-Fi (tri-band)/5G (broadcast 5G) and other frequency bands;
l Built-in dual switching power supply and high-performance aluminum alloy heat sink ensure excellent short-term operational stability;
l Features six silent cooling fans.
l ·Utilizes advanced foreign chips and technology with soft-start circuit design for high integration;
l ·Employs ultra-high-frequency interference technology; waterproof design enables indoor/outdoor use.
l ·Features multi-channel segmented independent shielding technology for enhanced effectiveness;
l ·Manual switch controls operation with effective shielding range of 8m-100m (depending on carrier network signal strength);
l Capable of extended uninterrupted operation;
l Interference frequency bands expandable per user requirements;
l · Primary application scenarios:
l Confidential meeting venues in government agencies, enterprises, etc.;
l Courts, detention centers, and prisons of all sizes;
Any location prohibiting mobile phone
|
Physical Parameters |
Performance and Specifications |
||||
|
Dimensions |
435 x 293 x 130 (L x W x H). |
||||
|
Weight |
7.2 kg (main unit). |
||||
|
Electrical Parameters |
Channel |
Block signals |
Operating frequency |
Band Output Power |
Channel output power |
|
CH1 |
China Broadcasting Network 5G/China Mobile 5G |
758-803MHz |
40dBm |
5dBm/30KHz(min) |
|
|
CH2 |
CDMA/Telecom 2G/4G |
869-880MHz |
40dBm |
5dBm/30KHz(min) |
|
|
CH3 |
GSM/Mobile 2G China Unicom 4G |
925-960MHz |
40dBm |
5dBm/30KHz(min) |
|
|
CH4 |
DCS Mobile 2G/4G China Unicom 4G China Telecom 4G |
1805-1918MHz |
40dBm |
2dBm/30KHz(min) |
|
|
CH5 |
PHS Mobile 2G/4G China Unicom 4G China Telecom 4G |
1805-1920MHz |
40dBm |
2dBm/30KHz(min) |
|
|
CH6 |
3G Mobile China Unicom China Telecom 3G 4G |
2010-2170MHZ |
40dBm |
2dBm/30KHz(min) |
|
|
CH7 |
3G China Unicom China Telecom 3G 4G |
2110-2170MHZ |
40dBm |
2dBm/30KHz(min) |
|
|
CH8 |
4G1 Mobile 4G (Indoor Coverage) |
2300-2390MHZ |
40dBm |
2dBm/30KHz(min) |
|
|
CH9 |
WIFI2.4G 5.8G |
2400-2483MHZ/5725-5850mhz |
37dBm |
2dBm/30KHz(min) |
|
|
CH10 |
Mobile 4G 5G |
2515-2600MHZ |
39.5dBm |
2dBm/30KHz(min) |
|
|
Mobile 4G 5G |
2600-2675MHZ |
39.5dBm |
2dBm/30KHz(min) |
||
|
CH11 |
5G1 Telecom 5G |
3400-3500MHz |
39dBm |
2dBm/30KHz(min) |
|
|
5G2 China Unicom 5G |
3500-3600MHz |
39dBm |
2dBm/30KHz(min) |
||
|
CH12 |
5G2 Mobile 5G (Indoor Distribution) Wi-Fi 5.2G |
4800-4900MHz/5150-5350MHZ |
37dBm |
2dBm/30KHz(min) |
|
|
Shielding Range |
8–50 meters (depending on the strength of the mobile carrier's network signal) |
||||
|
Power Supply and Power Consumption |
AC 110-220V/DC 24V/20A, Power Consumption: 480W. Built-in dual switching power supply. |
||||
|
Environmental Parameters |
|
||||
|
Operating/Storage Temperature |
Operating temperature: -10°C to +55°C; Storage temperature: -20°C to +60°C. |
||||
