800W High power Jail Cellular Jammer Model:CPJ6022
Prison Jammer

High Quality High Power Prison Drone Jammer, 2G/3G/4G/VHF/UHF/GPS/Uav Blocker Cover Radius 50-150m

Item No.: PJ650B
The 300-watt high-power prison jamming system PJ650 has a shielding range of 50-150 meters and an antenna power of up to 50 watts per band, shielding all communication equipment signals.
Add to Inquiry
Description
High Quality High Power Prison Drone Jammer, 2G/3G/4G/VHF/UHF/GPS/Uav Blocker  Cover Radius 50-150m

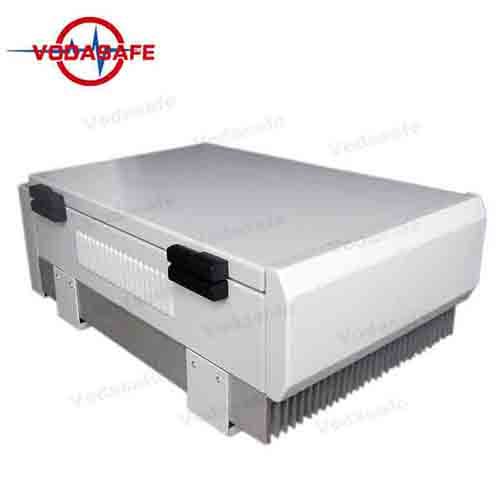

High Power Prison Jamming System
Vodasafe PJ650
6bands W/50W each

Brief description:
Vodasafe High Power prison Jamming system PJ650 Series are designed to block all wireless Networks including cellular bands such as iDen, TDMA, CDMA, GSM, UMTS, DCS, PHS, PCS, 3G,4G LTE,Wi-Fi ,Bluetooth,GPS
AMPS, N-AMPS, NMT, TACS. Telephones or other electronic communication devices .In the working range of Jammer PJ650 ,the wireless device will be unable to receive signals and in the case of a mobile phone, cant dial outgoing calls. The jamming range depends entirely on the signal strength in a given area. the PJ650 model that fits the appropriate commercial or institutional application.

Features:
  • Up to Six Frequency Bands;
  • PLL Synthesized Signal Source;
  • Scew controls to adjust Output Power;
  • 12-15dBi Directional Antennas each Band;
  • Only Interferes w/Downlink Base Station Frequencies;
  • Slow Start-up Circuitry for Long Term Reliability;
  • Over Temperature and VSWR Protection;
  • Status/Alarm LEDs;
  • Fan Cooled Rack Enclosure with Casters;
  • 100-240VAC Power Supply Source;
  • Optional Status Monitoring Software for Client PC;

Applicable place:
Jammers for prisons and other large sensitive locations such as military or governmental compounds. Homeland Security, Correctional Centers
Petrochemical Industry, Sports Venues and Theaters, VIP Convoy Protection, Bomb Prevention/Disposal, Schools and Universities Government and Military, Power Generating Plants.

Specification:
Total Output Power: 300W;
Cover Radius: 50-150m(under Signal level ≤-85dBm)@according to the signal density mobile network;
Jamming type: Sweep Jamming;
Antenna Type: Directional Antenna or Omini-directional antenna;
Remote control on/off: (3-5m);
Power Supply: AC adapter (50 to 60Hz/100 to 240V AC –DC27V)
Electric Filed (SAR): Compatible with ICNIRP Standards (Human safe)
Operating Temp: -20 to +50℃;
Storage Temp: -40 to +60℃;
Humidity: 5%-80%;
Dimension(LXWXH): 690 x 500x 350mm not include antennas

Net Weight:65kg  G.W/CTN:100kg

Optional frequency:
1. CDMA/GSM:850-894MHz 50W;
2. GSM:925-960MHz 50W;
3. GSM/DCS:1805-1880MHz 50W;
4.3G/UMTS:2110-2170MHz  50W;
5.4GLte:790-826MHz  50W;
6.4G/WiMAX:2620-2690MHz 50W;
7.Wi-Fi2.4G:2400-2485 MHz  50W;
8.4G2:2500-2570 MHz  50W;
9.GPSL1:1570-1610 MHz 50W;
10.GPSL2:1200-1300MHz  50W;
11.GPSL3:1380-1400MHz  50W;
12.Wi-Fi5.8G:5725-5850MHz  50W;
13.VHF:135174MHz 50W;
14.UHF:400-470MHz 50W;
15.RC433MHz:433MHz 50W
16.RC315MHz:315MHz 50W
17:CDMA450MHz:450-470MH50W

Package contents:
1 pc One main jammer unit
6 pcs Directional Antennas 65 Degree
1 pc Antennas frame with 1.5m cable
1 pc Power cord
1 pc Wireless OFF/ON remote controller 315Mhz

Order Information
Vodasafe PJ650B: Jamming for 2/3/4G Cellphone +GPSL1
We could supply customized service by your detail requirements about frequencies setting. All 6 Frequency modules we can mix very flexibly.
