800W High power Jail Cellular Jammer Model:CPJ6022
Mobile Phone Jammer

Highpower Stationary 16Bands Jammer/Blocker Vodasafe X16plus

Item No.: X16plus
This is a high multi-Use ,powerful Jammer , This jammer provides 16 bands of coverage (see below) with a total power output of 91 Watts .
his model is  to coverage mobile phone frequencies used in most parts of the world countries Europe, Asia, Australia
Add to Inquiry
Description
Highpower Stationary 16Bands Jammer/Blocker Vodasafe X16plus

Brief description:
This is a multi-Use ,powerful Jammer , This jammer provides 16 bands of coverage (see below) with a total power output of 91 Watts .
his model is  to coverage mobile phone frequencies used in most parts of the world countries Europe, Asia, Australia, Africa.
this unit will jam standard GSM ,3G,  4G and 4G LTE, 4G WiMAX all types of Android phones, Tablets, Smart Phones, iPhones, GPS, Lojack Tracking devices ,remote control signals from various devices such as rc cars, rc boats, alarms, wireless sensors, amateur or professional remotely controlled toys, etc .
Creating a range of up to 70 meters in "forbidden" zone for all all mobile, wifi, rc and tracking devices. to provide you with complete coverage. giving you the privacy, security, and peace of mind that you need.
TIncluded vehicle power supply allows flexibility for you to take the unit with you and use it while mobile. prevent "leakage" of important information along the way saving you from intrusive phone calls.

Features:
*Adjustable working range you can avoid blocking adjacent areas
* multi-Use ,powerful Jammer
*Each of 18 frequency is separately and Adjustable
*Friendly use and maintenance
* 24/7hours working, Could continue to work
*Good cooling system with unique case as big heat sink and 5 fans inside, low noise
*Portability: Vehicular power cable also included Could be used in Vehicle directly jamming car bomb

Applicable place:
It can be applied in a meeting room, conference room, museum, gallery, theater, concert hall, church, temple, restaurant, classroom, training center, factory, bank, train, car, bus, etc.

Specification:
Total Outputpower:100W
Cover Radius: 10-70m(under Signal level ≤-85dBm)@according to the signal density mobile network
Jamming type: Sweep Jamming
Antenna Type: 5dBi external omni-directional
Power Supply: AC adapter (50 to 60Hz/100 to 240V AC-DC24V) with car charger
Notice:
Electric Filed (SAR): Compatible with ICNIRP Standards (Human safe)
Operating Temp:-20 to +50℃
Storage Temp:-40 to +60℃
Humidity: 5%-80%
Dimension(LXWXH): 445 x 272x 70mm not include antennas
Inner box dimension:445x4280x80mm
Weight:8kg

Notices:
1.Before linking all the antenna, power supply shall not be switched on at first.Non taking off antenna when the mainframe is in the working condition.
2.The jammer shall be installed in the position with good ventilation.And large-scale things shall be avoided to ensure to the shielding effect.
3.When use the jammer outdoors, preventing water shall be taken into consideration.
4.Antenna shall be used vertical to the ground.
5.If you want to use this device in car, pls buy an inverter of DC12V/24V to AC110-240V, Power≥500Watts

Order information :
X16PLUS A: CDMA/GSM/3G/4GLTE Cellphone/Wi-Fi2.4G/Bluetooth/Walkie-Talkie/Lojack/GPSL1-L5/RC433MHz315MHz868MHz

1. GSM850MHz:850-894MHz;  8W
2.GSM900  925-960MHZ   8w
3. GSM1900MHz or 1800:1805-1880/1920-1990MHz;8W (2GGSM/CDMA/PCS1900/1800MHz)
4. 3G2100MHz:2100-2170MHz;3W (3GUMTS/WCDMA/TD-SCDMA/CDMA) 8W
5. 4GLTE700MHz:700-803 or 790-862MHz; 8W
6. 4G LTE1700 : 1700-1800MHz  8W
7. 4G Wimax 2500-2690 or 2300-2400MHz 8W
8. Wi-Fi/Bluetooth2.4G:2400-2500MHz; 8W
9. GPSL1 1570-1580MHz 4w
10. GPSL2+L5 1170-1280MHz  4w
11. GPSL3+L4 1370-1390MHz 4w
12. LOJACK 167-175MHz  5W
13. VHF 135-174MHz 5W
14. UHF 400-470MHz 5w
15. RC433 430-440MHz 5w
16. RC315 310-320MHz 5w
Total Output Power: 100W

X16PLUS B:CDMA/GSM/3G/4GLTE Cellphone/Wi-Fi2.4G/Wi-FI 5G /Bluetooth/Walkie-Talkie/Lojack/GPSL1-L5/RC433MHz315MHz868MHz

1. GSM850MHz:850-894MHz;  8W
2.GSM900  925-960MHZ   8w
3. GSM1900MHz or 1800:1805-1880/1920-1990MHz;8W (2GGSM/CDMA/PCS1900/1800MHz)
4. 3G2100MHz:2100-2170MHz;3W (3GUMTS/WCDMA/TD-SCDMA/CDMA) 8W
5. 4GLTE700MHz:700-803 or 790-862MHz; 8W
6. 4G LTE1700 : 1700-1800MHz  8W
7. 4G Wimax 2500-2690 or 2300-2400MHz 8W
8. Wi-Fi/Bluetooth2.4G:2400-2500MHz; 8W
9. GPSL1 1570-1580MHz 4w
10. GPSL2+L5 1170-1280MHz  4w
11. GPSL3+L4 1370-1390MHz 4w
12. LOJACK 167-175MHz  5W
13. VHF 135-174MHz 5W
14. UHF 400-470MHz 5w
15. WIFI5.2G  5100-5500MHz  1.2w
16. WIFI5.8G 5500-5900MHz MHz 1.2w

Total Output Power: 100W

We could supply customized service by your detail requirements about frequencies setting.

Optional Function :Remote control on/off (3-5m)

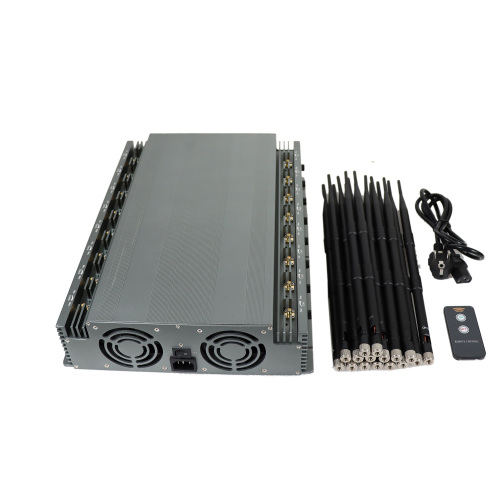

Package contents:
1pc Signal Jammer
1pc AC Charger
1pc Car Charger
16pcs Antennas

All 16 Frequency modules we can mix very flexible,.Any combinations and customizations are possible just send us your inquiry and we will give you our recommendation.
