K68 Wireless Signal & Magnetic Field Detector

Description

K68 Wireless Signal & Magnetic Field Detector
User Manual
Description:
The new-generation K68 detector is built quality, featuring an upgraded LED display that accurately indicates signal source strength. Its intelligent detection mode-after product optimization-redefines efficiency, unveiling a new era of privacy protection to expose all infringements.
Unlike market counterparts, K68 adopts a digital reception mode, expanding detection frequency and effectively filtering out ambient signal noise. Specifically designed for CDMA signal processing, it detects CDMA/WCDMA-based tracking locators-untraceable by conventional detectors-making it ideal for anti-eavesdropping and anti-tracking needs.

Panel & Functions:

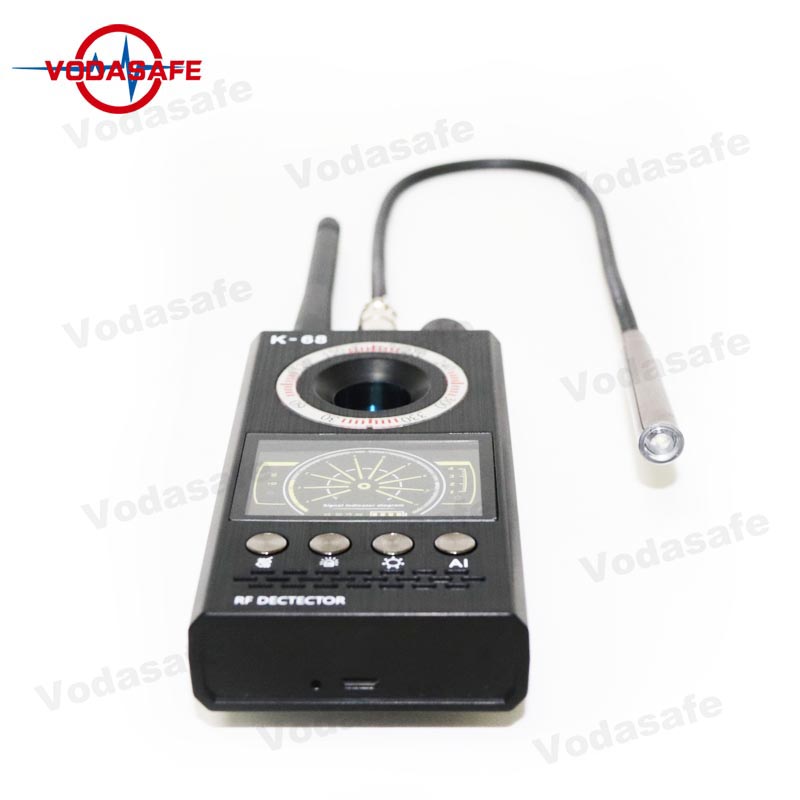

Handheld Design (as illustrated):
Top-left antenna interface: Install the antenna before use.
Middle magnetic probe interface: For detecting magnetic locators and eavesdroppers.
Power & wireless detection switch: Rotate clockwise to adjust sensitivity.
Window azimuth dial: Equipped with a special filter lens for LED infrared laser scanning.
LED display: Shows code-type signal strength and battery level.
Vibration/ring mode switch: Located left of the LED display.
Strong magnetic detection switch: Red light illuminates in standby mode.
Camera detection switch: Four-speed adjustment on the LED display's right.
Intelligent detection mode button
USB charging port.
Charging indicator: Turns off when fully charged.
Operation:
RF Wireless Signal Detection
Step 1: Rotate the knob clockwise to maximum; a long "BIBI" sound indicates detection mode activation, with the LED main screen lighting up.
Step 2: Adjust the knob to the first stage (white zone on LED, levels 1-2) for standby. Signal strength is categorized into 10 levels:
White: Safe signal
Green: Suspicious signal
Yellow: Dangerous signal
Red: Locked signal source
Step 3: In strong signal environments, the pointer fluctuates, triggering buzzer alarms. Closer proximity to the source increases the pointer level (red zone at level 10 locks the target), with vibration frequency escalating to confirm detection.
Sensitivity Adjustment: Higher knob settings expand detection range. If no alarm occurs in the red zone, the signal is out of range.
Special Note: In urban areas, adjust sensitivity gradually to filter out cluttered signals.
Intelligent Detection Mode
Press the smart detection switch after powering on. The device automatically identifies, classifies, and records danger signals (strength >8) every minute. When a signal source transmits, the device alarms five times: the LED pointer stays at level 1, and the buzzer sounds continuously to indicate nearby threats. This function targets intermittent signals from sleeping trackers, hidden cameras, and GPS devices.
Magnetic Field Signal Detection
Attach the magnetic probe, power on, and press the strong magnetic detection switch. The purple indicator on the probe lights up, entering standby. When near a magnetic field source, the probe's white LED and buzzer activate, signaling magnetic suspicious items.
Camera Detection
Power on, press the camera detection switch. The rear laser scanning light flashes; use the fourth-gear frequency (fastest) to scan through the filter lens. Adjust the flicker frequency from fast to slow to locate red reflective spots-indicators of hidden wired/wireless cameras.
Vehicle Magnetic Equipment Detection
Magnetic locators often hide in car bottoms or interiors. Perform grid-based close-range scans under the vehicle, inside the cabin, or under the hood-avoid detecting through the body surface directly.
Application Scenarios
Anti-bug/tracker checks in cars, offices, and negotiation rooms.
Mobile phone eavesdropping detection (abnormal signal emissions during standby).
Electromagnetic radiation monitoring in workplaces and homes.
Cheating equipment detection in gambling settings.
Vehicle inspections for mortgage cars, used cars, and financial company assets.

Specifications

Frequency Range	1MHz-8000MHz
Detection Dynamic Range	>73DB
Detection Sensitivity	≤0.03mV (main frequency band)
Detection Range (10mW source)	- 2.4G: 10sqm - 2G: 15sqm - Mobile bands: 15sqm
Indication Modes	10-level digital tube, buzzer, vibrator
Battery	1200mA polymer lithium (3-hour full charge)
Working Current	80-150mA
Continuous Operation	8-10 hours
Material	ABS plastic
Weight	167g
Dimensions	138mm×60mm×28mm

Packaging List:
Main unit × 1
Antenna × 1
Magnetic probe × 1
User manual × 1
Note: Product color may vary slightly from images.
