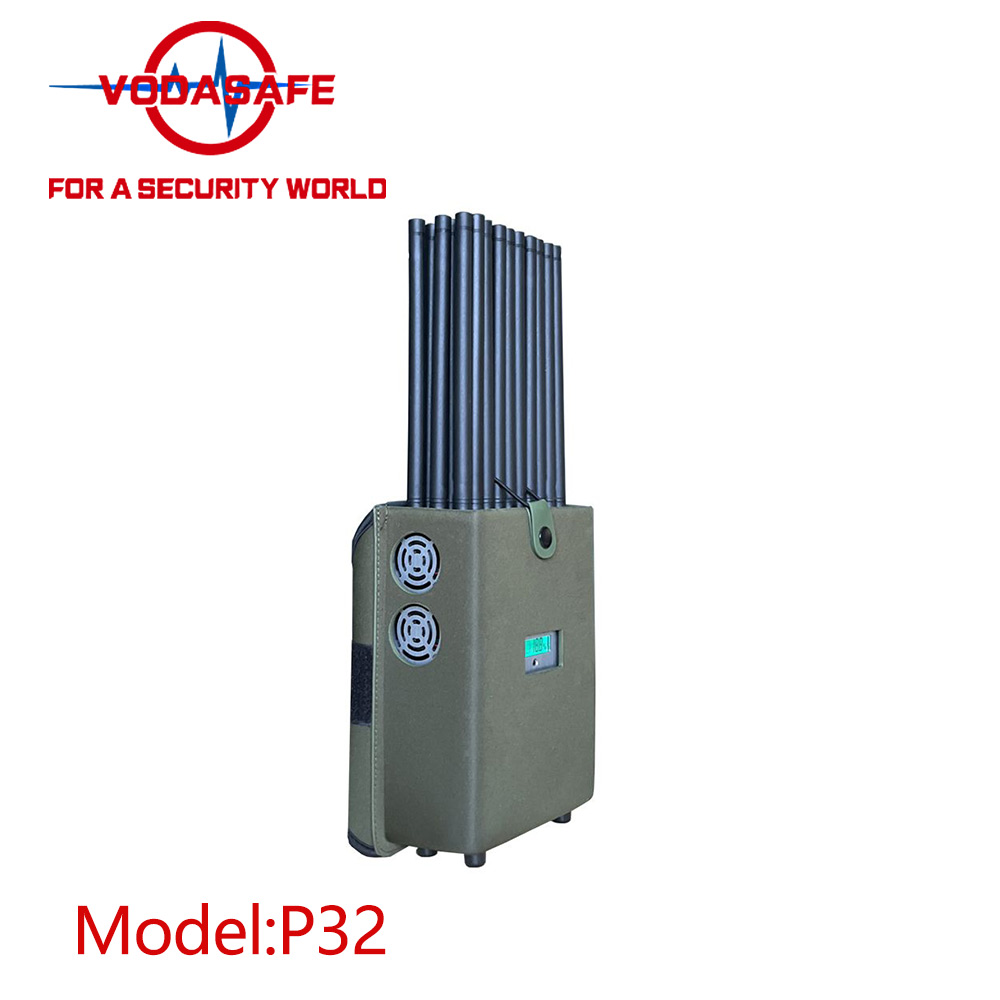

Vodasafe 31 Channels Worldwide Cellphone Used Jammer Blocks All 2g 3G 4G 5g Signals Across The World, and WiFi7e RF GPS FM Radio etc,
31 channels worldwide cellphone used portable signal jammer blocks all 2G 3G 4G 5G signals across the world, and WIFI7E RF GPS FM Radio etc,. with new high gain 2.5dbi antennas
This 31 channels multifunctional portable cell phone jammer is independently design and produced by JinYaTong Technology,Which blocks all 2G, 3G, 4G, 5G cellphone signals worldwide and GPS, WIFI, UHF VHF, RF,LOJACK, FM Radio,Lora signals,total 31 channels.Designed to meet your blocking needs for the most common affected frequency types.
Specifications:
Cover interface standards: Vodasafe P32
| No. | Band Name | Frequency Range (MHz) |
|---|---|---|
| 1 | FM Radio | 87 - 108 |
| 2 | LOJACK/VHF | 135 - 174 |
| 3 | RF | 315 |
| 4 | RF | 433 |
| 5 | RF | 868 |
| 6 | UHF/CDMA450 | 400 - 470 |
| 7 | 5G600 | 617 - 698 |
| 8 | 4G700 | 698 - 803 |
| 9 | 4G800 | 738 - 821 |
| 10 | CDMA850 | 850 - 894 |
| 11 | GSM900 | 925 - 960 |
| 12 | LoRa | 900 - 930 |
| 13 | GPS L2/L5 | 1170 - 1280 |
| 14 | GPS L3/L4 | 1370 - 1390 |
| 15 | GPS L1/BeiDou B1 | 1560 - 1620 |
| 16 | 5G1500 | 1427 - 1518 |
| 17 | 4G1700 | 1700 - 1800 |
| 18 | DCS | 1805 - 1880 |
| 19 | PCS | 1920 - 2000 |
| 20 | 3G-TD | 2010 - 2025 |
| 21 | 3G | 2110 - 2180 |
| 22 | 4G2300 | 2300 - 2400 |
| 23 | Wi-Fi 2.4G | 2400 - 2485 |
| 24 | 4G2500 | 2496 - 2690 |
| 25 | 4G2600 | 2570 - 2690 |
| 26 | 5G3300/3500 | 3300 - 3600 |
| 27 | 5G3700 | 3600 - 3900 |
| 28 | 5G | 3900 - 4200 |
| 29 | Wi-Fi 5.2G | 5100 - 5500 |
| 30 | Wi-Fi 5.8G | 5500 - 5900 |
| 31 | Wi-Fi 6E | 5925 - 6450 |
| 32 | Wi-Fi 7E | 6450 - 7125 |
We can also customize the frequencies according to different requirements,Please feel free to contact us anytime!
Parameters:
Output Power: 30W
Power Supply: AC100-240V to DC12V 10A IN
Full set Weight: 3.74 KGS
Size: 208*147*70(not include Antennas)
Length of antenna : 193mm Gain:2.5dbi
Shielding Radius: 10-25meters at-70dBm (depends on the signal strength in the given area)
Battery: Built-in battery 7.4V/17000mAh
Working Time: More than 100 Minutes
Cooling System: High efficiency aluminum alloy radiator, Build-in 3x cooling fans
Feature and Advantages:
1. With longer 2.5dbi gain omni antennas
2. With DIP Switch,Support the adjust or turn off of any single band without influencing the other bands's operation.
3. Can be used in car directly by using the car charger and AC charger comes with the order.
4. Inside 3 cooling fans and Bigger heatsink design ensure continuous operation of the device
5. Press the Power screen display to check the power percentage, Current, voltage, working current data easily.
6. Supports working while charging

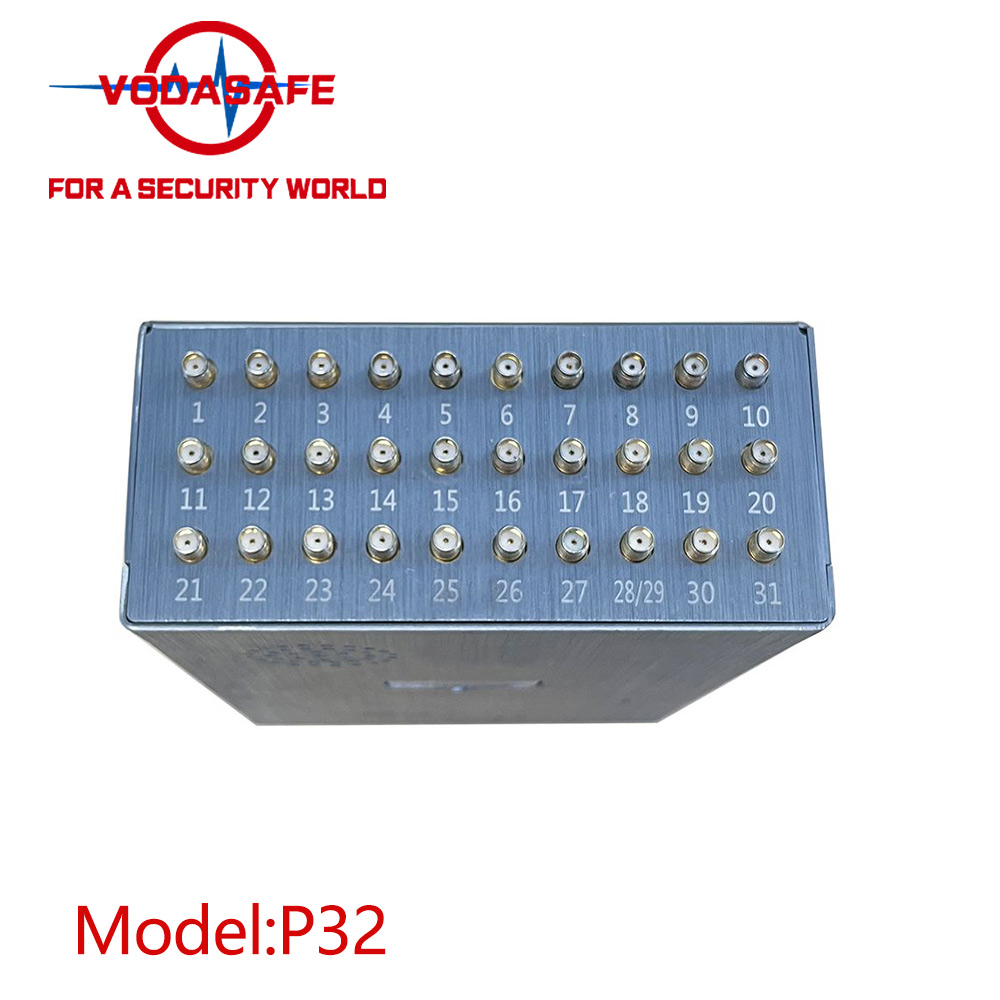

7. External Omni-directional antennas. all the TX frequency covered down link only.
8. Small size design,easy to cary.
9. The shileding distance up to 25m, Depends on the signal strength in a given area.
10. Built-in rechargeable 7.4v 17000Mah battery, Working time more than 90 Minutes.
11. ODM orders are welcome.
12. Silkscreen OEM service can be offered.
Application:
1.It can be applied at meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more;
2.For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument.
Warranty: one year from delivery date.
