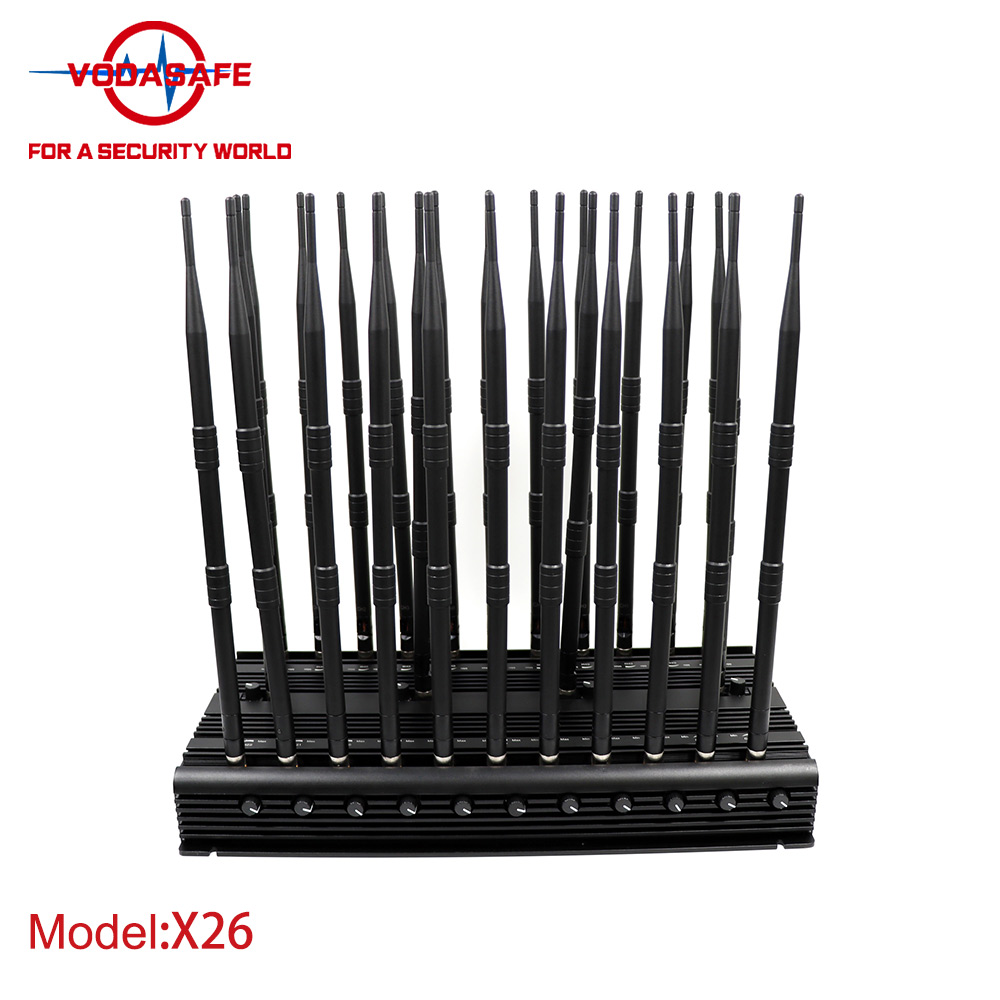

Vodasafe World First 26 Antennas Wireless Signal Jammer For Full Bands 5GLTE 2G 3G 4G Wi-Fi2.4G 5G 6G GPS LOJACK FM Radio, Output Power 50 Watt With Infrared Remote Control Turn ON /OFF Power
Model: x26
Color: Black
Basic Specifications
Jam Signal Type：
Full Bands Mobile Phone 5GLTE 4G/3G/2G +WiFi2.4G/5G/6G+ GPSL1-L5 +Walkie-Talkie UHF/VHF+ Remote Control 433/315/868+FM Radio
Output Power：Total 66W，1-4W each band
Jam Radius：2-40meters
Power Supply：AC110 or 220V to DC12V
Cooling System：High efficiency aluminum alloy radiator, Build-in 5 cooling fan
Working Time：Not-stop Working
Product Size：450x 238x 60 mm（not Include Antenna）
Product Weight: appr.8.5kg
Package Contents：Jammer Host x 1, AC adapter x 1,antenna x26,Car storage battery cable x1, Infrared Remote Control x1
Product description:
This is the latest designed with 26 Antennas all-in-one for mobile phone 5GLTE GSM 3G 4GLTE signals which bring us a strong jamming ability. also block Wi-Fi2.4G 5GHz 6GHz GPS LOJACK tracking, remote control 315 MHz 433MHz 868MHz 915MHz, VHF UHF Walkie-Talkie & Wireless Headset/Microphone and FM radio 80-108MHz signals. Full bands jammer is power full to blocks all the signals, Jamming frequencies the jamming radius up to 40meters
Advantages:
Full bands 26 chancel design, Customized for special frequency range
High output power, Total up to: 66W, jamming up to 40m (Still depends on the strength signal in given area)
External Omni-directional antennas all the TX frequency covered down link only
Connect with DC12V Car storage battery cable can be used in car
Built-in good cooling system inside, Working non-stopped
Can adjust or turn off any single band without influencing the other bands operation
2-5meters with Infrared Remote Control Turn ON /OFF Power
OEM Customized Service
Silkscreen OEM service can be offered
Application
It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
|
Key technical specifications: X26 |
|||
|
Channel |
Output port |
Frequency range |
Average out-putting power |
|
1 |
CDMA/RC868 |
850-894MHz |
36dbm / 4W |
|
2 |
GSM/LORA |
900-960MHZ |
36dbm / 4W |
|
3 |
DCS 1800 |
1805-1880MHZ |
35dbm / 3W |
|
4 |
PCS 1900 |
1920-2000MHZ |
35dbm / 3W |
|
5 |
3G UMTS 2100 |
2110-2180MHZ |
35dbm / 3W |
|
6 |
4G 700 |
700-803MHZ |
36dbm / 4W |
|
7 |
4G 800 |
791-821 |
36dbm / 4W |
|
8 |
4G 2500 |
2496-2570MHZ |
33dbm / 2W |
|
9 |
4G 2600 |
2570-2690MHZ |
33dbm / 2W |
|
10 |
4G 1700 |
1710-1780MHZ |
33dbm / 2W |
|
11 |
4G 2300 |
2300-2400MHZ |
33dbm / 2W |
|
12 |
5G 600 |
617-698MHZ |
36dbm / 4W |
|
13 |
5G 3300/3500 |
3300-3600MHZ |
30dbm / 1W |
|
14 |
5G 3700 |
3600-3900MHZ |
30dbm / 1W |
|
15 |
5G 4000 |
3900-4200MHZ |
30dbm / 1W |
|
16 |
5G 1500 |
1427-1518MHZ Z |
35dbm / 3W |
|
17 |
WIFI 2.4G 11.b &g |
2400-2500MHZ |
33dbm / 2W |
|
18 |
WIFI 5.2G 11.a |
5100-5500MHZ |
33dbm / 2W |
|
19 |
WIFI 5.8G 11.a |
5500-5900MHZ |
33dbm / 2W |
|
20 |
WIFI 6E 802.11ax |
5925–6425MHz |
30dbm / 1W |
|
21 |
GPS: L1 + Glonass L1 |
1570-1580Mhz |
33dbm / 2W |
|
22 |
GPSL2+L3+L4+L5 |
1170-1390MHZ |
33dbm / 2W |
|
23 |
FM Radio |
80-108MHz |
35dbm / 3W |
|
24 |
VHF/ Lojack |
135-175Mhz |
35dbm / 3W |
|
25 |
UHF/433 Remote Control |
400-470MHZ |
35dbm / 3W |
|
26 |
315 Remote Control |
310-330MHZ |
35dbm / 3W |
|
Power supply: AC adapter 50 to 60Hz, (110 or 220V AC-12V DC) DC12V Car storage battery Charger Cable |
|||
|
Dimensions: (length ,width, height) 450x 238x 60mm（not Include Antenna） |
|||
|
Packing size: 55*44*15cm Net weight: 8kg Gross weight: 9.0kg |
|||
|
Total power:66W |
|||
|
Warranty: one year from delivery date |
|||
