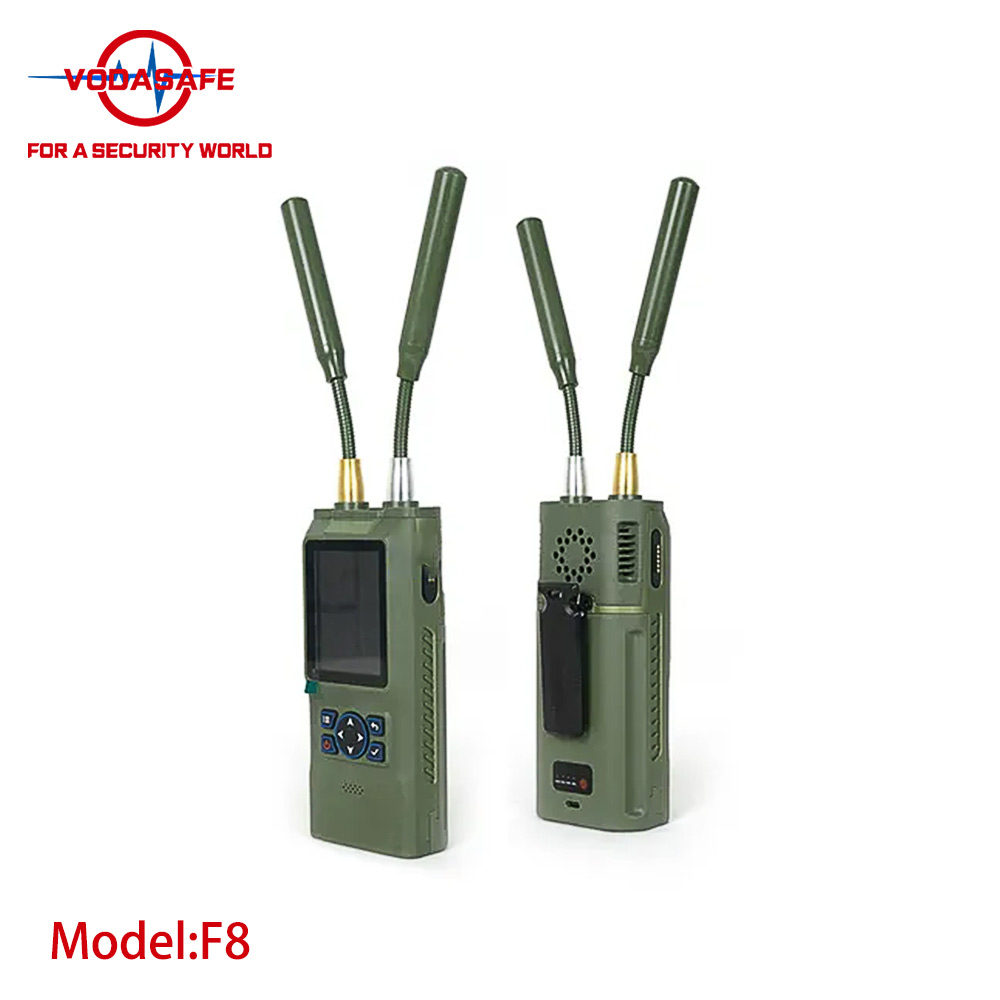

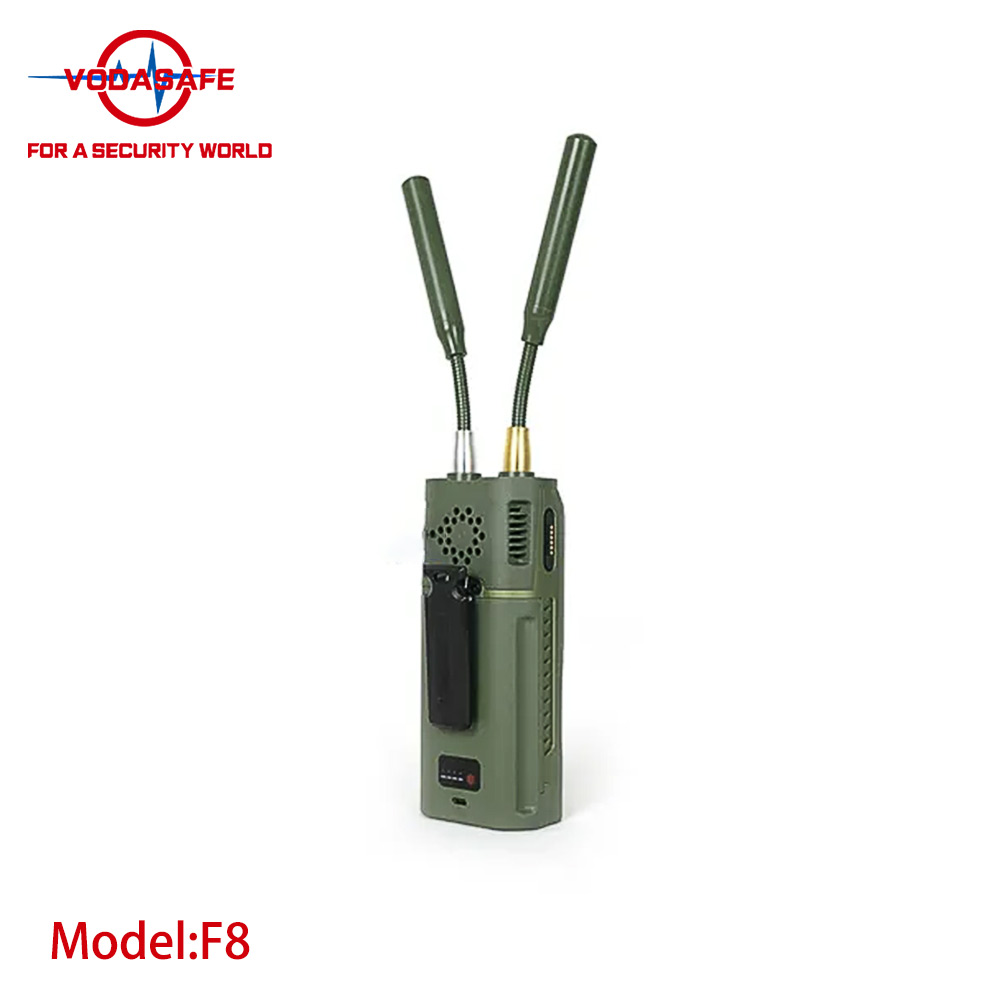

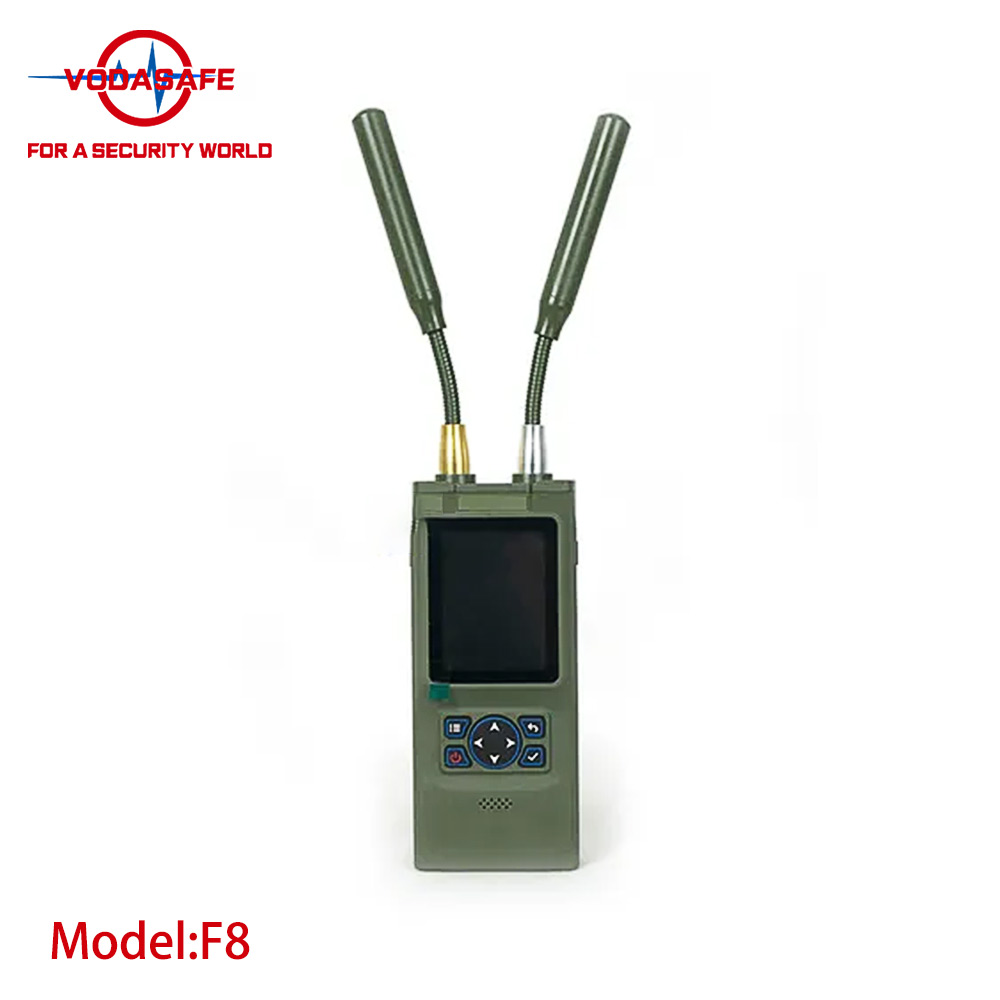

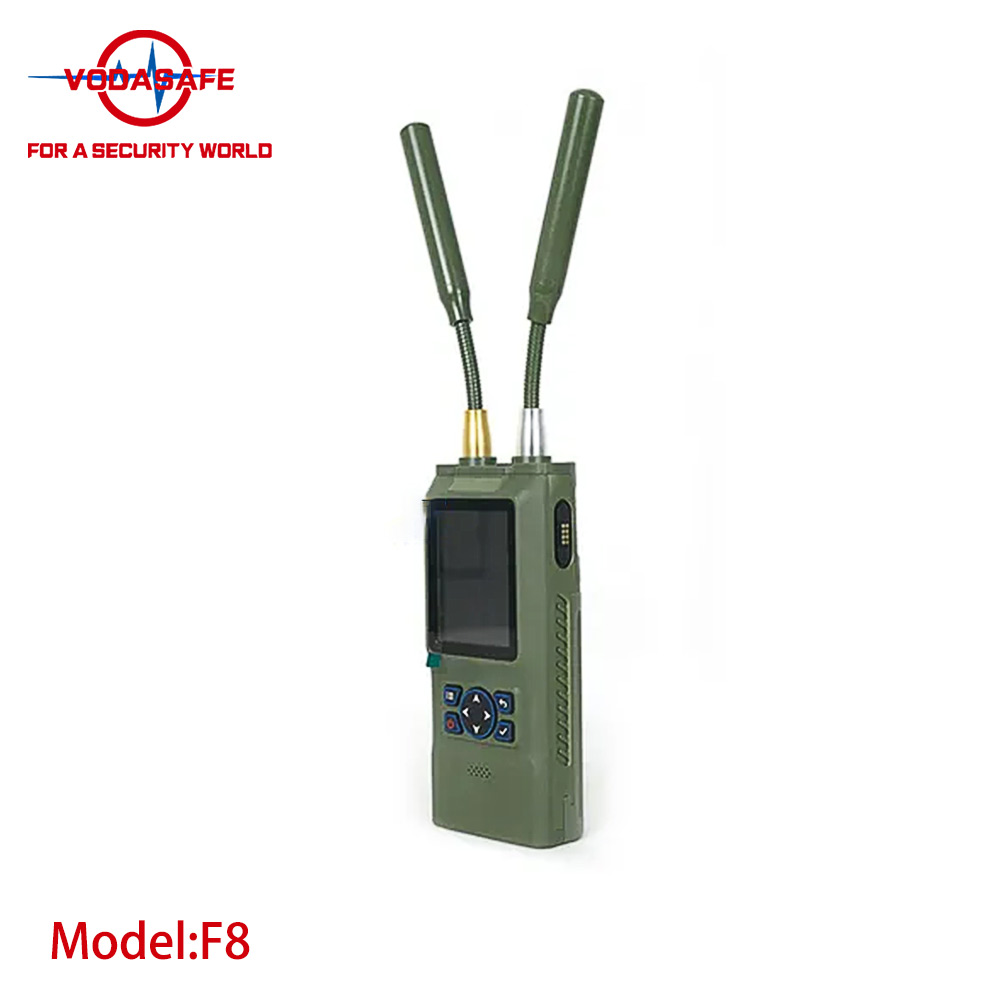

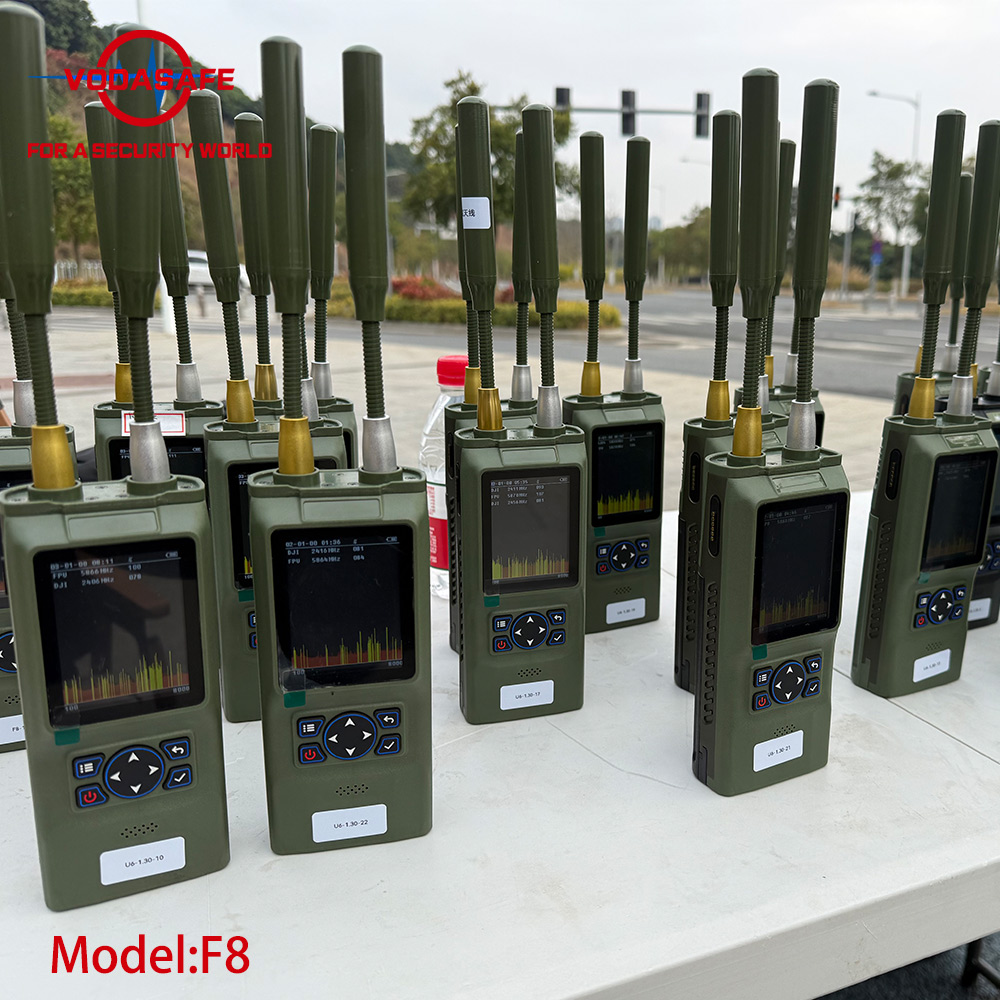

The F8 Ultra-Wideband Portable Drone Detection System utilizes a superheterodyne architecture to identify high-definition OFDM-based digital video signals from industry-leading brands such as DJI and Autel across the 100 MHz – 8 GHz frequency range. It also detects FM analog video signals from FPV drones.
Featuring dual-antenna hardware and multi-channel parallel scanning technology, the system delivers key operational advantages, including:
Rapid response
High sensitivity
Extended detection range
Minimal false alarm rate
Full-Spectrum Precision Detection
Ultra-wideband coverage from 100 MHz to 8 GHz with a 1 MHz tuning step, ensuring no blind spots. Captures real-time analog video signals with industry-leading low false alarm rates, while displaying drone type, signal frequency, and signal strength.
Broad Industry Compatibility
Supports detection of mainstream drone brands, including DJI, Autel, and other leading manufacturers.
Enhanced Direction-Finding (DF) Capabilities
Optional directional antennas allow operators to locate signal sources by analyzing dynamic signal strength changes, improving locking efficiency and detection accuracy.

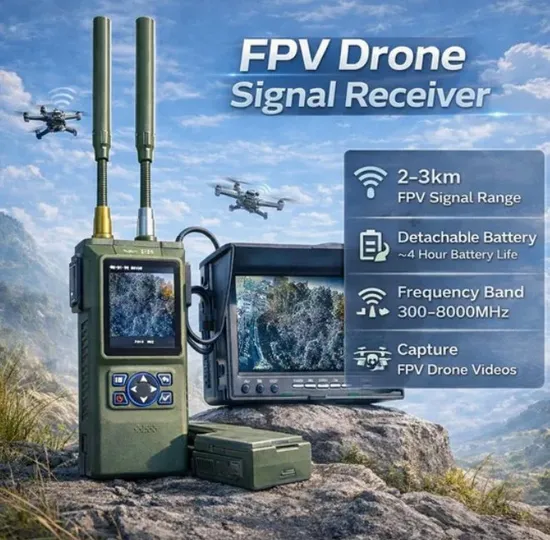

Real-Time Video Feedback

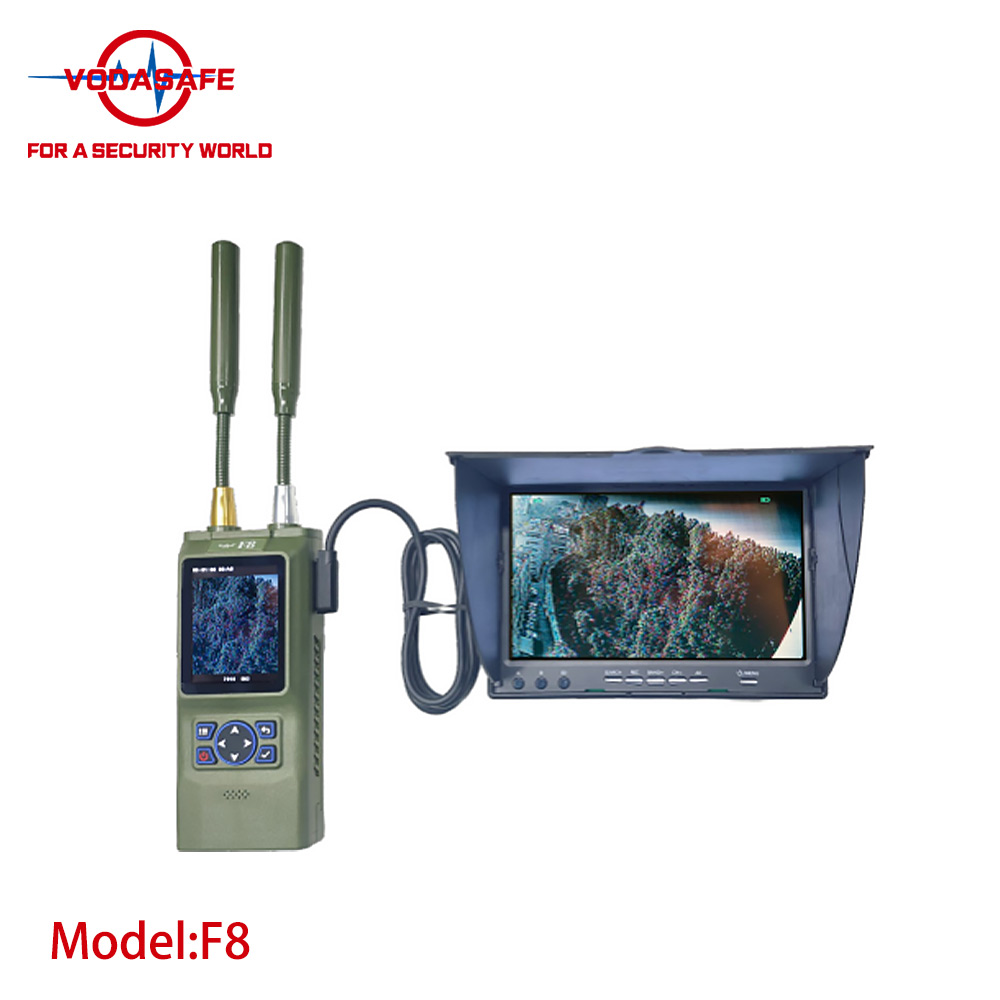

Intercepts real-time FPV analog video feeds within 100 MHz – 8 GHz. Features dual display modes: direct viewing on the integrated screen or exporting HD imagery via a proprietary magnetic interface.
Countermeasure System Integration
The magnetic interface enables rapid synchronization with backpack-type jammers, forming an integrated "detect-and-defeat" platform to enhance airspace control.
Ruggedized Environmental Adaptability
Stable, fault-free operation from -20 °C to +60 °C.
Superior Ingress Protection
Rated IP54 – dust and splash resistant for harsh outdoor environments.
High-Efficiency Power Management
Supports 35W fast charging – fully charged in just 1 hour.
Extended Battery Life
Replaceable 2,900 mAh high-performance lithium-ion battery provides up to 7 hours of continuous operation.
Wireless Data Synchronization
Integrated Bluetooth for real-time telemetry and monitoring data transmission to remote terminals.
| Description | Specifications |
|---|---|
| Frequency Range | 100 MHz – 8000 MHz |
| Video Frequency Range | 100 MHz – 8000 MHz (analog video transmission) |
| Recognition Type | OFDM HD video transmission signal, FM analog video transmission through the aircraft |
| Detection Range | ≥ 1 km (varies by frequency band and transmission power; high-gain directional antenna can extend range) |
| Alert Modes | Vibration, Sound |
| Data Logging | Built-in storage records |
| Interface | Proprietary Magnetic Cable |
| Startup Mode | Long press power button for 3 seconds |
| Power Supply | Removable lithium battery (supports Type-C fast charging) |
| Endurance | 2,900 mAh battery provides approx. 7 hours of use (single battery) |
| Control Method | Button operation (sound adjustment, screen backlight, drone detection info) |
| Environmental Adaptation | Operating Temp: -20 °C to +60 °C; Storage Temp: -40 °C to +85 °C |
| Protection Rating | IP54 (dust and splash resistant) |
| Dimensions & Weight | Approx. 164 mm × 44 mm × 68 mm (main unit without antenna); Approx. 580 g (including battery and antenna) |
Notes
All specifications are subject to change without prior notice or liability.
Avoid using near strong interference sources such as radar stations or jammers, as high-power signals may cause equipment damage.

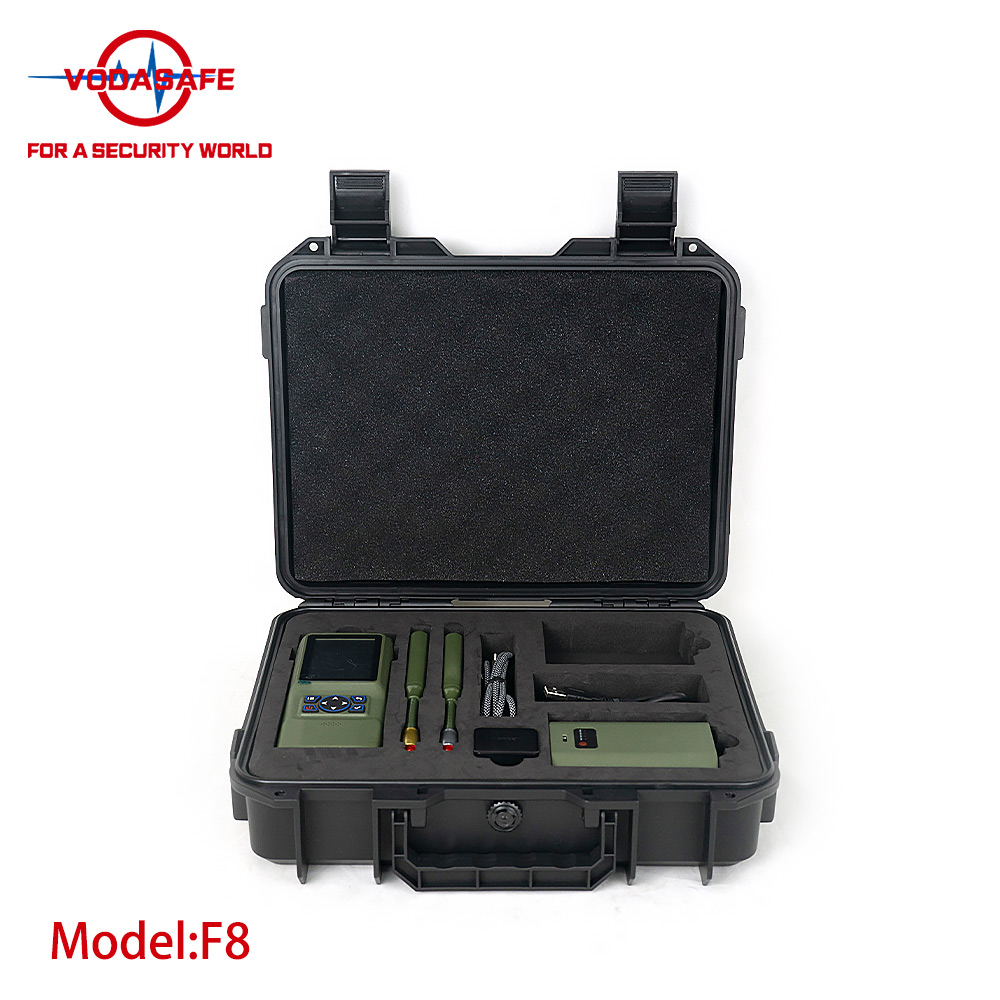

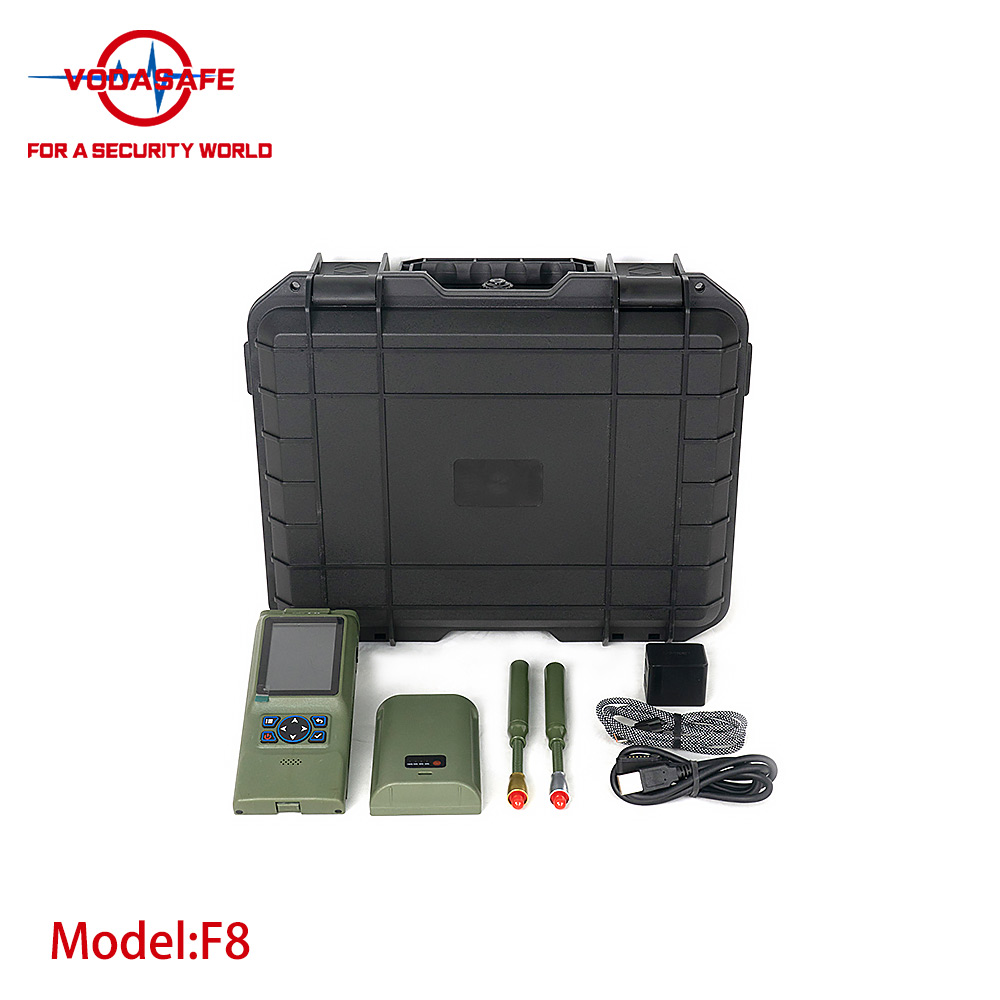

| Order Number | Item Name | Quantity |
|---|---|---|
| 1 | Main Unit | x1 |
| 2 | Lithium polymer battery | x1 |
| 3 | Exploring antenna | x2 |
| 4 | Debug Cable | x1 |
| 5 | Type-C charging Cable | x1 |
| 6 | Charger | x1 |
