1. Introduction

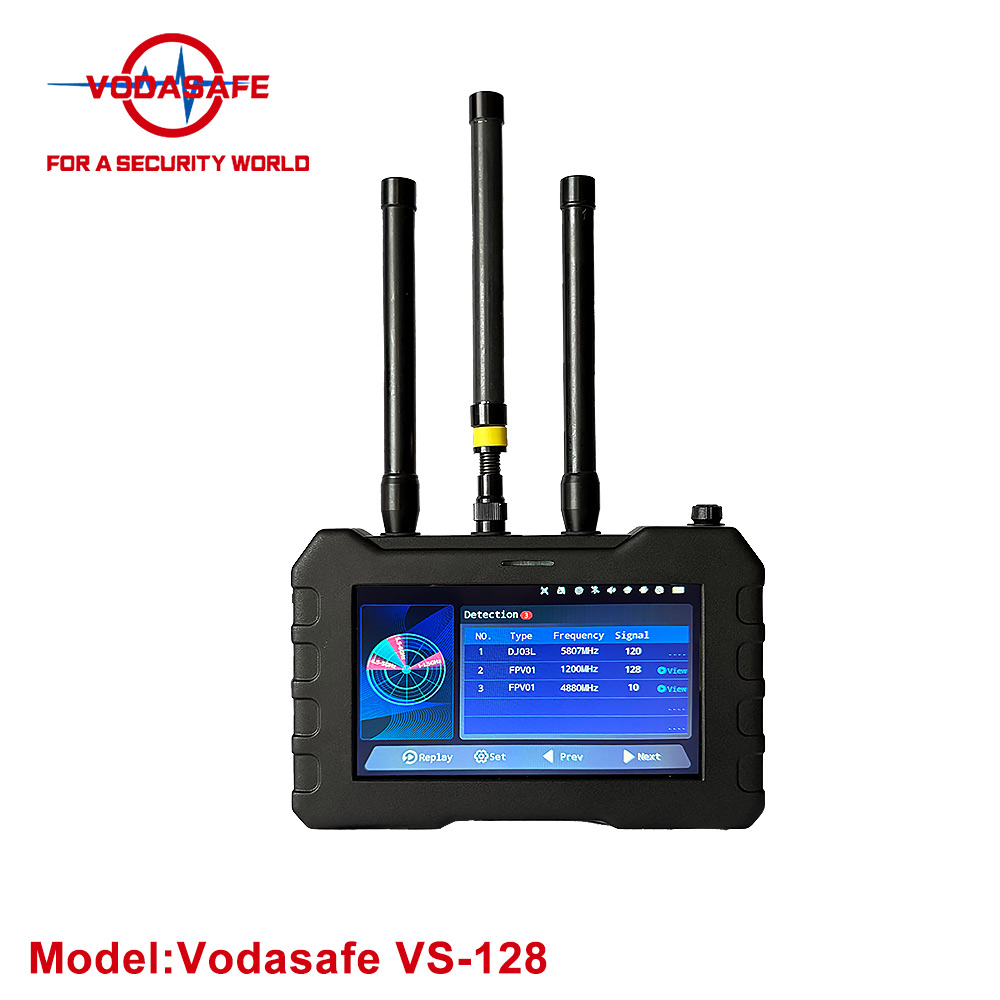

Name: Vodasafe VS-128 portable FPV Detection
Brand: Vodasafe/Professional wireless signal security for Enterprise&Goverment
SKU: Vodasafe VS-128 portable FPV
Availability: InStock
Rating: 5 (1 reviews)

With the rapid development and popularization of drone technology, drones have shown great application potential in aerial photography, agriculture, rescue, security and other fields, but at the same time they have also brought increasingly serious safety risks. Incidents such as illegal intrusions, malicious reconnaissance, and privacy violations occur frequently, posing serious threats to national security, public safety, and personal privacy. Therefore, the development of efficient and advanced drone jamming technology has become an urgent need to maintain airspace security and ensure social stability.
2. Device Overview

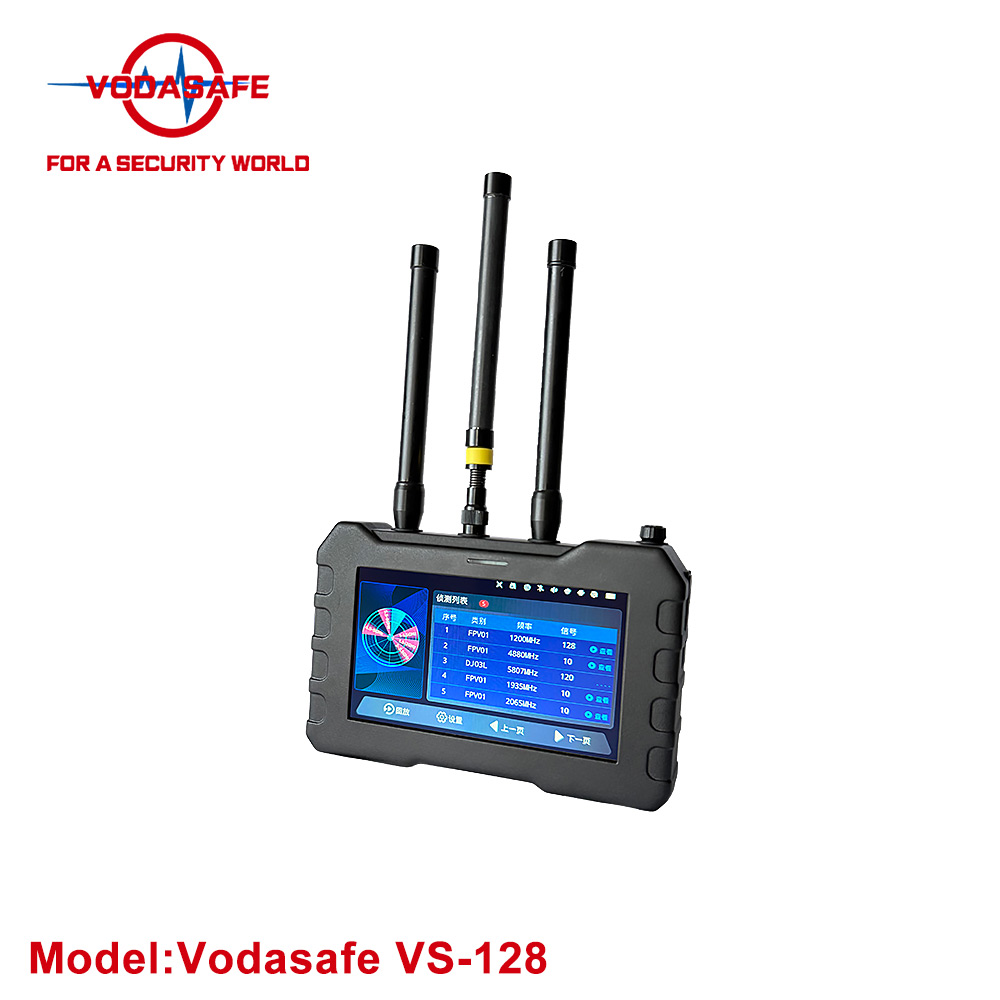

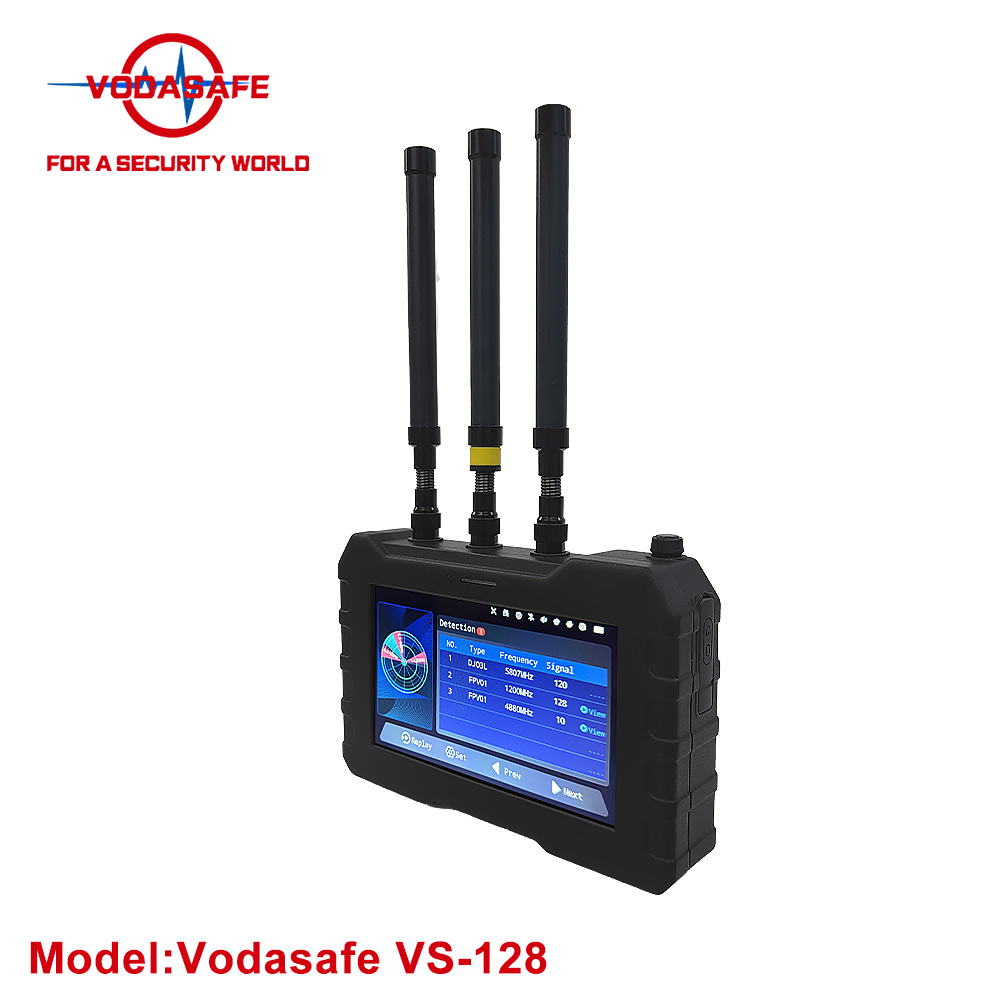

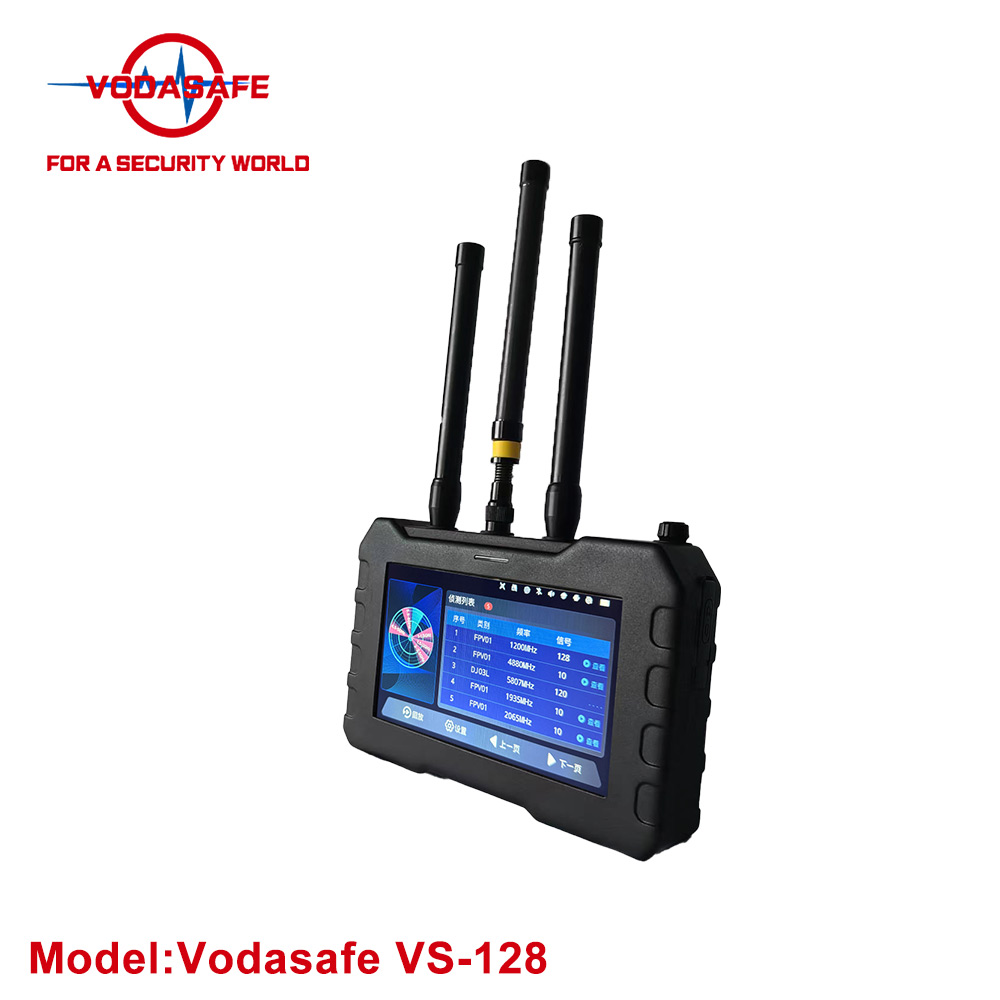

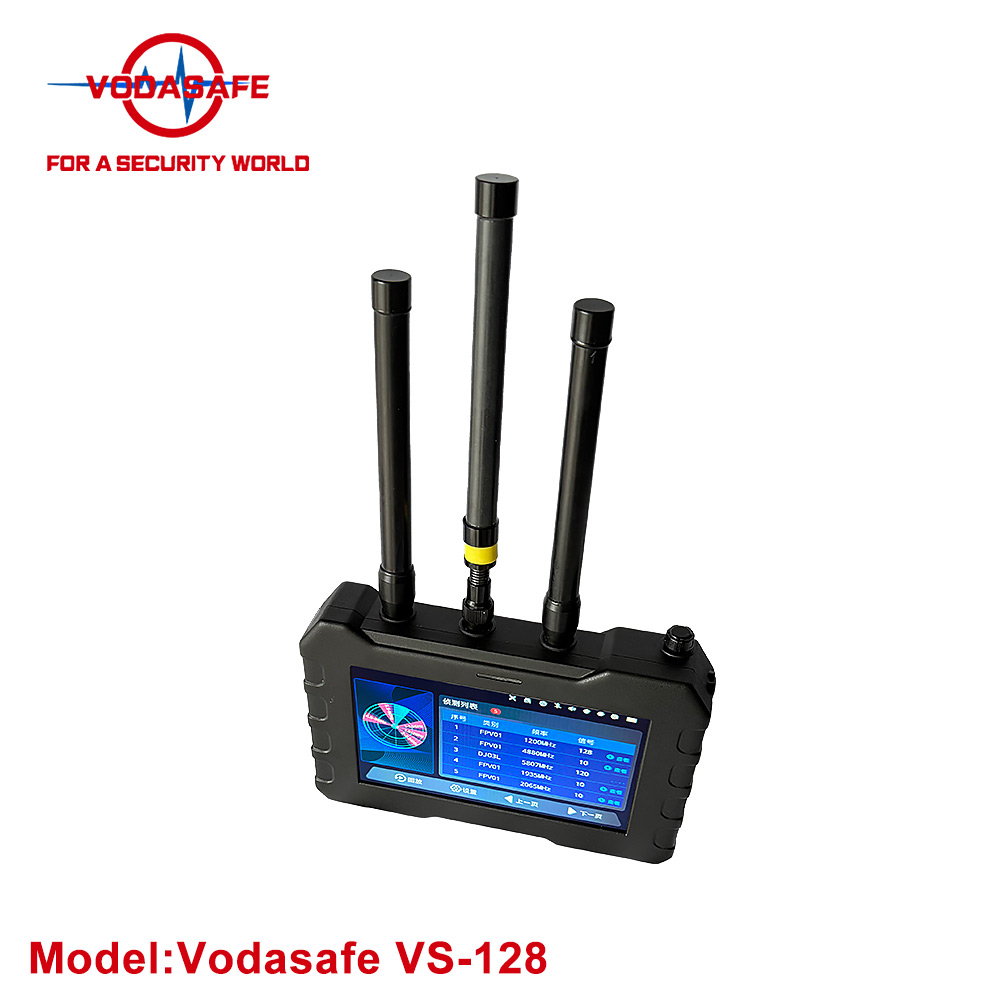

The portable FPV detection and video transmission capture device integrates detection, video interception, and video storage into one system. It features full-band detection, FPV analog video transmission detection, video interception, display control, and video storage functions. In complex electromagnetic environments, it can accurately identify quadcopters, fixed-wing drones, DIY models, and FPV drones, and provide sound, light, and vibration alarms. This device is suitable for scenarios such as routine patrols, critical target protection, unit-level operations, and investigation and evidence collection.
2.1 Device Name
VS-128 portable FPV detection and video transmission capture device
2.2 Device Model
VS-128
Vodasafe Vs-128 Full-Band Scanning Real-Time Analog Video Capture Handheld Anti-Drone Terminal

Vodasafe Vs-128 Full-Band Scanning Real-Time Analog Video Capture Handheld Anti-Drone Terminal

2.3 Device Usage
Incidents such as illegal intrusions, malicious reconnaissance, and privacy violations occur frequently through drones, posing a serious threat to national security, public safety, and personal privacy. Therefore, the development of efficient and portable drone countermeasures technology has become an urgent need to maintain airspace security and ensure social stability.
2.4 Device Features and Functions

Full-band detection: Capable of detecting the entire 70 MHz-6.2 GHz range.
Comprehensive FPV band coverage: Fully supports analog video transmission detection within the 500 MHz-6 GHz range.
Video interception: Intercepts all analog video transmissions, allowing "first-person view" analysis of FPV intrusion targets and real-time dynamics.
Video storage: Real-time captured video can be stored as evidence.

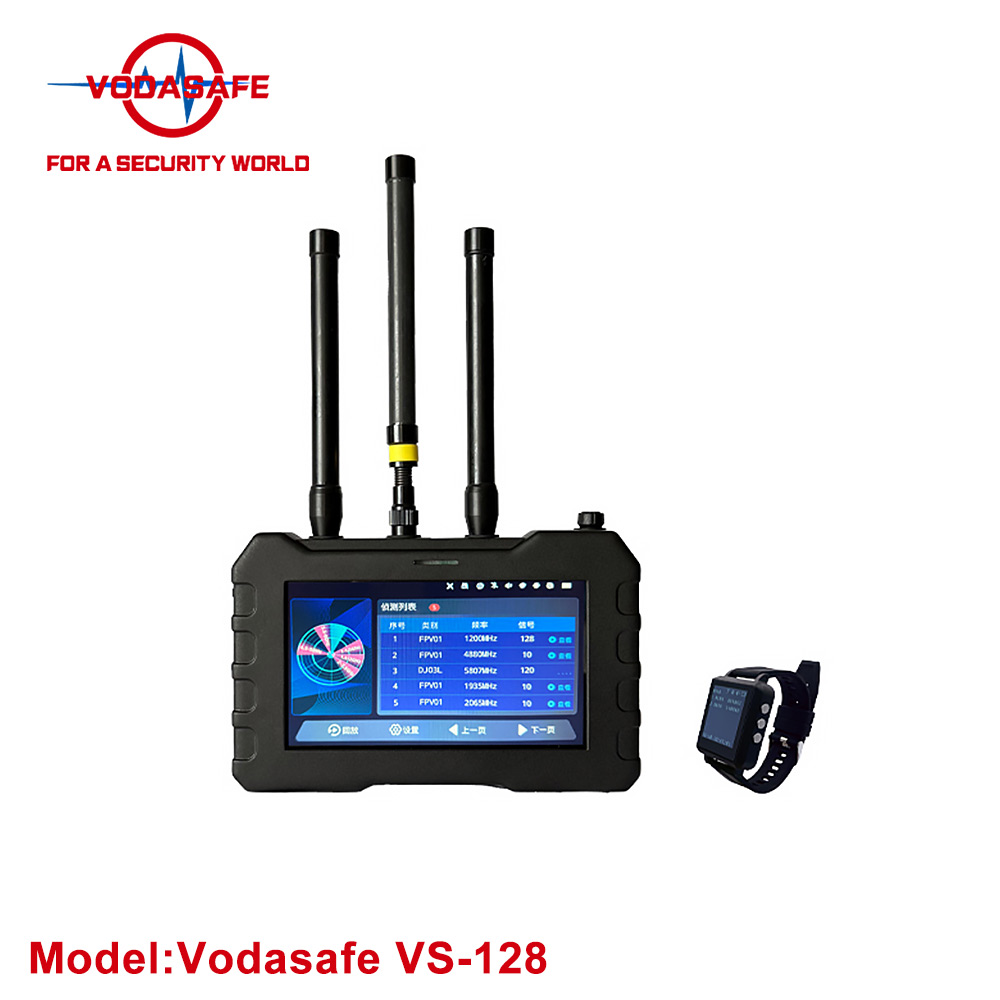

Team collaboration: Features a 1+N mode with master-slave device design, enabling alarm linkage and coordinated operations (wrist watch is optional).

Device Technical Parameters

Number	Name	Specifications
1	Identification types	Supports mainstream drones such as DJI, Autel, Hubsan, as well as FPV racing drones and DIY drones
2	Frequency range	Supports customizable scanning from 70 MHz to 6.2 GHz. Default detection bands: 400 MHz, 800 MHz, 900 MHz, 1.2 GHz, 1.4 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz (other bands can be customized)
3	FPV video transmission detection	Supports detection of all analog video transmissions within the 500 MHz-6 GHz frequency range (user-customizable)
4	Detection radius	≥ 1.5 km (line-of-sight, clean electromagnetic environment).
5	Video capture distance	≥ 1.5 km (line-of-sight, clean electromagnetic environment).
6	Video storage capacity	≥32 GB memory card, max to 256GB
7	Detection response time	≤3s(8 bands);≤5s(12 bands)
8	Battery life	≥5s (both the screen brightness and the operating mode are in their default state)
9	Alarm modes	Sound, vibration, and light
10	Screen size	7-inch touchscreen
11	Power supply	Powered by lithium battery
12	Battery capacity	7.4V/7000mAh
13	Device weight	≤ 1.2kg
14	Device size	215mm44mm150mm(LWH)

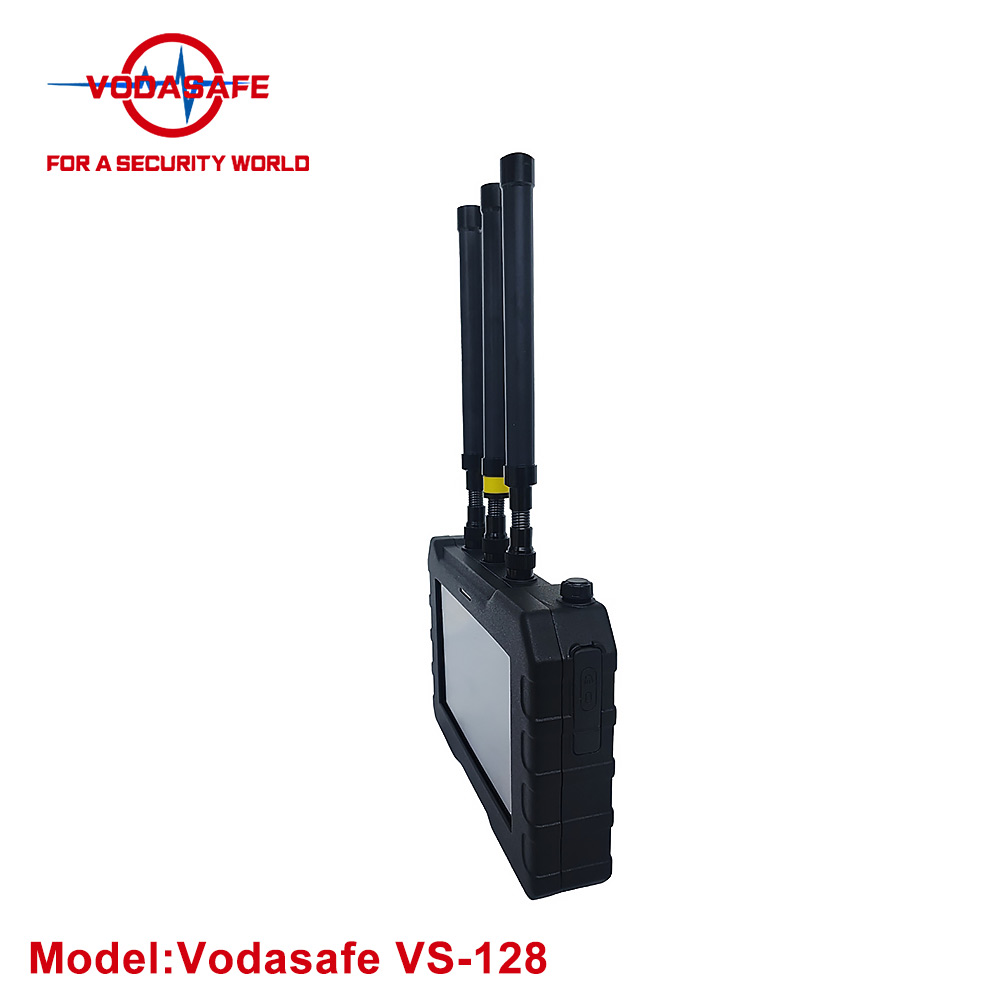

4. Device Structure and Components
Vodasafe Vs-128 Full-Band Scanning Real-Time Analog Video Capture Handheld Anti-Drone Terminal

Figure 1 Device three views

No.	Name	Function
1	Function Button	One-key screen off function: press to turn off the screen, press again to turn it on.
2	SD Card Slot	Used for installing an SD memory card.
3	Antenna SMA Connector	Used for installing a full-band image capture antenna.
4	Antenna SMA Connector	Used for installing a 5.8G image capture antenna (yellow ring antenna).
5	Antenna SMA Connector	Used for installing a full-band detection antenna to receive UAV signals for detection.
6	Power Knob	Power switch / alarm volume adjustment (turn clockwise to power on/increase volume, counterclockwise to power off/decrease volume).
7	Alarm Indicator Light	Warning or alarm light prompt after detecting a UAV. This function can be enabled or disabled in the settings (see subsequent button operation instructions).
8	7-inch Touch Display	Displays working status and detection results.
9	Charging Port	Charging voltage: DC 8.4V / 2A.
10	Headphone Jack / TYPE-C Upgrade Port	External 3.5mm headphone / model feature library upgrade port.
11	Strap Buckle	Used for attaching a wrist strap.

5. Packaging and equipment configuration list
5.1. Device List

No.	Product Name	Product Picture	Quantity		Remarks
1	Main Unit		1	Standard Configuration	With SD memory card
2	5.8 GHz Image Capture Antenna		1	Standard Configuration
3	Full-band Antenna		2	Standard Configuration
4	EU Standard 8.4V Charger		1	Standard Configuration
5	USB Data Cable		1	Standard Configuration
6	3.5mm Headphones		1	Standard Configuration
7	Packing Box		1	Standard Configuration
8	Card Reader		1	Standard Configuration
9	Wrist Strap		1	Standard Configuration
10	Shoulder Strap		1	Optional Configuration
11	Detection Information Receiver Terminal		1	Optional Configuration	With wrist watch charging cable
12	USB Charger		1	Optional Configuration
13	Full-band Spring Soft Antenna		2	Optional Configuration

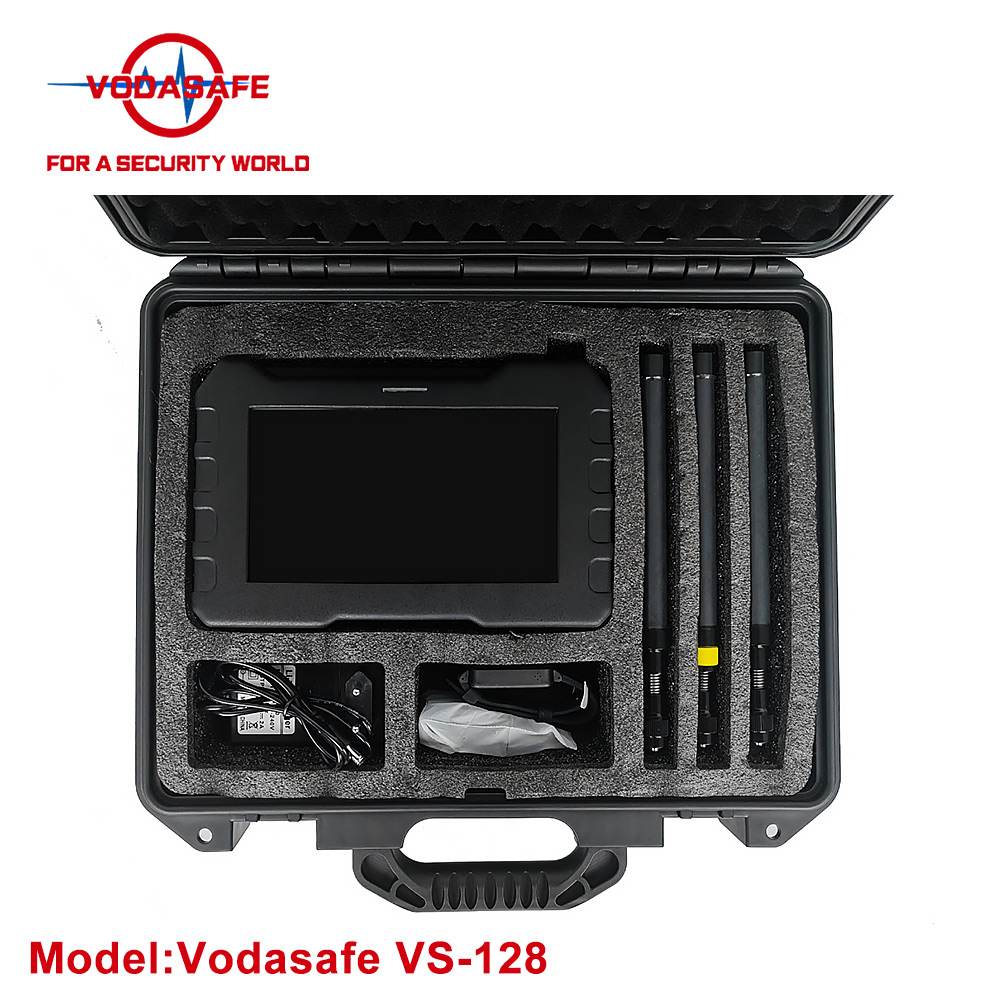

5.2 .Device Security Protection
Aviation case:
Packaging size:Length 350mm* Width 300mm* Height 100mm
Vodasafe Vs-128 Full-Band Scanning Real-Time Analog Video Capture Handheld Anti-Drone Terminal

6. Device Maintenance
Power on the device regularly to check its status.
