SZ Vodasafe VS-331 Multifunctional RF Signal Detector
Description:
The SZ Vodasafe VS-331 Multifunctional Detector is developed to tackle the rising security risks from hidden surveillance devices like pinhole cameras, audio bugs, and GPS trackers. As these gadgets become increasingly miniaturized and camouflaged, they pose threats to personal privacy, business secrets, and information security. The detector integrates three core technologies to non-contact detect such devices by analyzing electromagnetic waves (RF), optical lenses, and infrared signals.

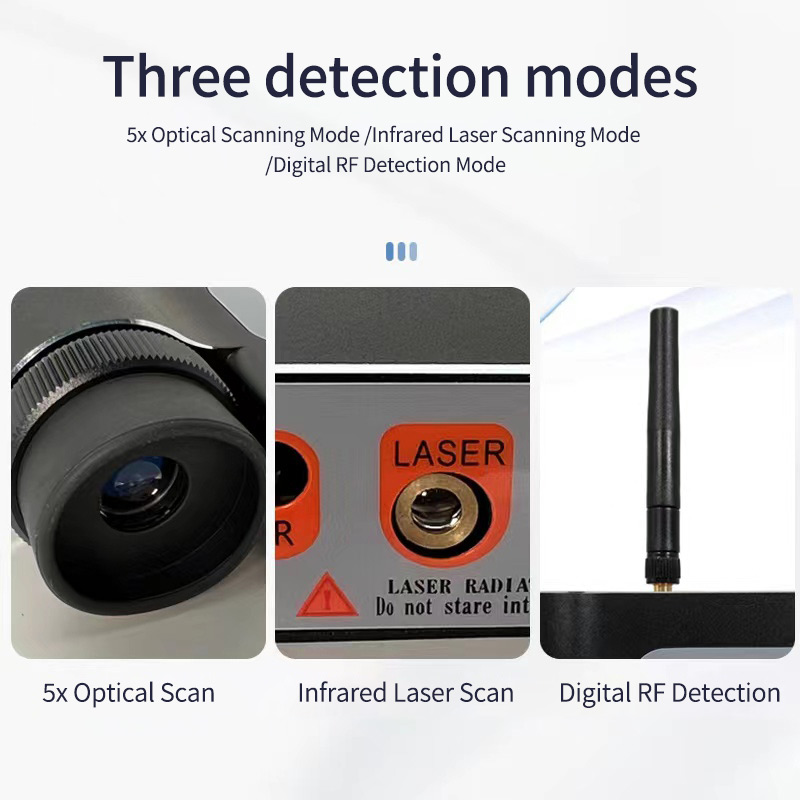

Detection Principles & Modes
|
Detection Type
|
Technical Principle
|
Operation Steps
|
|
Electromagnetic (RF) Detection
|
Target devices emit RF signals for communication (via cellular/WiFi). The detector’s built-in antenna senses these signals, with intensity shown by front-panel LED lights and audible alerts from the buzzer.
|
1. Power on (default to RF mode by rotating the top knob clockwise).
2. Adjust sensitivity: Clockwise rotation increases sensitivity (1st LED lights up at max).
3. Use medium sensitivity for trackers/bugs; higher sensitivity for WiFi cameras.
|
|
Optical Lens Detection
|
All cameras require optical lenses for imaging. The detector emits a special-wavelength beam. When the beam hits a lens (typically convex), it reflects back to the eyepiece, creating a 1.6Hz flashing light spot visible through 5x optical magnification.
|
1. Power on and press the SCAN button to activate the beam generator.
2. Look through the eyepiece and scan areas—flashing spots indicate hidden lenses.
|
|
Infrared (IR) Detection
|
Miniature cameras use IR fill lights for low-light shooting. The detector senses intense IR signals and triggers audio-visual alarms, with a laser indicator pinpointing the source.
|
1. Long-press the Speaker On/Off button for 2 seconds to switch to IR mode.
2. Scan the environment; the laser will point to IR-emitting devices (e.g., camera IR lights).
|
Features:
Optical System:
Multi-layer coated lens with high-light-transmission prism for clear reflection detection.
5x optical magnification enables spotting 1mm micro-lenses from 5 meters.
Soft silicone eyepiece for comfortable, eye-friendly long-term use.
IR Detection:
650nm super-bright light source for enhanced IR signal identification.
Build & Design:
Full aluminum alloy body with CNC precision machining for durability.
Compact design for portable security checks.
Specifications
|
Detection Modes
|
RF signal, optical lens, infrared radiation
|
|
RF Sensitivity Adjustment
|
Stepless via top knob (low to max sensitivity indicated by LEDs)
|
|
Optical Magnification
|
5x
|
|
IR Wavelength
|
650nm
|
|
Power Source
|
2x AA batteries (not included)
|
|
Dimensions
|
130mm × 70mm × 40mm
|
|
Weight
|
250g
|
Operation Guide
Power On/Off:
Clockwise rotate the top knob to power on (RF mode default).
Counterclockwise rotation to power off.
Mode Switching:
RF mode: Default on power-up.
IR mode: Long-press Speaker On/Off for 2s.
Optical lens mode: Press SCAN button after powering on.
Applications
Hotel rooms, offices, and private spaces for anti-spy camera checks.
Corporate environments to prevent commercial secret theft.
Vehicle or personal item inspections for unauthorized trackers.
Package Inclusion
VS-331 Multifunctional Detector
User manual (Chinese & English)
Protective carrying case
[Optional: Battery adapter or cleaning cloth]
Designed for security-conscious users, the VS-331 combines advanced technology with intuitive operation to safeguard against hidden surveillance threats efficiently.
