Vodasafe VS-8NLP: Advanced RF Signal Detector with Laser Pointer and Lens Finder

SZ Vodasafe VS-8NLP: Advanced RF Signal Detector with Laser Pointer and Lens Finder

Description:

The SZ Vodasafe VS-8NLP is a state-of-the-art Radio Frequency (RF) signal detector designed to safeguard your privacy and security. Equipped with cutting-edge technology, this device efficiently detects wireless signals from hidden cameras, listening devices, and other unauthorized transmitting equipment across a broad frequency range. With its user-friendly interface and enhanced features, the VS-8NLP sets a new standard in personal and professional security solutions.

Features

Wide Frequency Detection Range

Frequency Range: 50 MHz to 6.0 GHz, covering most wireless devices, including:

2.4GHz and 1.2GHz wireless cameras

GSM/2G mobile phone signals

Hidden listening devices and transmitters

Enhanced Visual and Auditory Alarms

Tri-color LED Indicator System:

Green: Low signal strength/normal operation

Yellow: Medium signal strength

Red: High signal strength/imminent threat

Multiple Alert Modes:

Audible beep alarm with variable intensity

Vibration mode for silent detection

Earphone jack for discrete monitoring

Laser Pointer for Directional Locating

3mW Laser Diode:

Wavelength: 650nm (visible red laser)

Aids in precisely pointing to the source of RF signals

Activates automatically when a signal is detected, helping users triangulate the signal origin

Improved Lens Finder Design

Top-Mounted Lens Finder:

8 ultra-bright LED lights for scanning

Integrated viewfinder for easy camera lens identification

Detects both active and powered-off hidden cameras by reflecting light off lens surfaces

Plug-and-play design with secure top-mounted connection ports

User-Friendly Sensitivity Adjustment

Digital Sensitivity Display:

Adjustable from 0 to 8 via up (▲) and down (▼) buttons

Defaults to sensitivity level 6 on power-up

Allows users to fine-tune detection range:

Higher settings for long-range detection

Lower settings for eliminating background noise

Power System

Battery Configuration:

4 x AAA rechargeable NiMH batteries (included)

12V DC 1A switching power adaptor (included)

Battery Life:

Up to 2.5 days of continuous standby use when fully charged

Charging Time:

8 hours (power off)

16 hours (power on)

Low Battery Indicator: Rightmost red LED lights up when battery needs charging

Specifications

Note: Detection distance may vary based on signal strength and environmental interference.

How to Use

Power On and Self-Test

Pull out the antenna and switch on the device.

The central LED will display numbers from 8 to 0 for self-test, then settle at 6 (default sensitivity).

The leftmost green LED indicates power is on.

Sensitivity Adjustment

Increase Sensitivity: Press ▲ to extend detection range (suitable for low-noise environments).

Decrease Sensitivity: Press ▼ to reduce detection range and filter out background noise.

Ideal setting: Only the leftmost green LED is on, with no alarm sounds.

Signal Detection and Location

Scan for Signals: Hold the device with the LED panel facing you, antenna upright.

Sweep Area: Make a semi-circular scan. Stronger signals will trigger more LEDs (from green to red) and faster beeping.

Laser Guidance: The laser pointer will aim towards the signal source; follow the laser to narrow down the location.

Fine-Tune Location:

Lower sensitivity by pressing ▼.

Rescan and move towards the strongest signal direction.

Repeat until the signal source is identified.

Lens Finder Operation

Attach Lens Finder: Plug the lens finder into the top-mounted sockets of the device.

Activate Lights: Press the red On/Off switch; 8 ultra-bright LEDs will blink.

Scan Area: Shine the lights on suspected areas, looking for strong, fixed reflections.

Viewfinder Check: Use the viewfinder to confirm if a reflection is a camera lens.

Silent Detection Modes

Vibration Mode: Hold ▲ or ▼ before powering on, then release after switching on.

Earphone Mode: Plug in earphones for private monitoring (earphone jack located on the device).

Safety and Maintenance Guidelines

Important Warnings

Unauthorized Modification: Do not repair or dismantle the device; this voids the warranty.

Power Adaptor: Use only the manufacturer-provided 12V DC 1A adaptor to avoid circuit damage.

Environmental Hazards:

Keep away from water and moisture.

Do not store in high-temperature environments.

Avoid dropping or impacting the device.

Antenna Use: Never touch metal surfaces or signal emitters with the antenna to prevent static damage (not covered by warranty).

Battery Care

Regular Checks: If unused for long periods, check battery power every 3 months. Recharge for 8 hours if weak.

Charging Limits:

Do not charge for more than 2 days to prevent overcharging.

Avoid leaving the device on during battery depletion to prevent over-discharge.

Warranty Exclusion: Damage from overcharging or over-discharging is not covered by the warranty.

Warranty and Copyright

Warranty: Manufacturer's warranty applies to defects in materials and workmanship, excluding damage from misuse, unauthorized repair, or environmental factors.

Copyright: © 2025 SZ Vodasafe. All rights reserved. No part of this manual may be reproduced without written permission.

Specifications: Subject to change without prior notice to improve product performance.

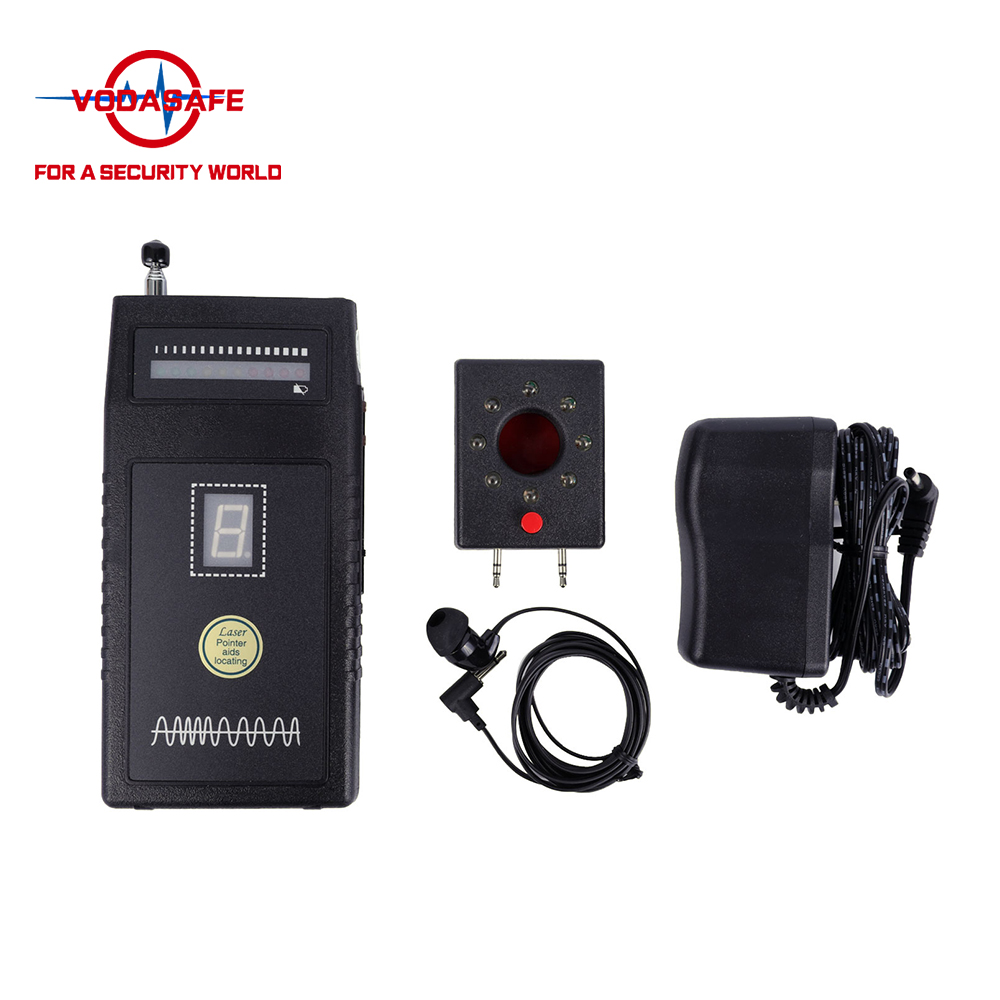

Package Contents

1 x VS-8NLP RF Signal Detector

1 x Lens Finder attachment

4 x AAA NiMH rechargeable batteries

1 x 12V DC 1A switching power adaptor

1 x User manual

1 x Warranty card

The SZ Vodasafe VS-8NLP combines advanced technology with user-friendly design, making it an essential tool for protecting privacy in homes, offices, hotels, and other sensitive areas. Trust in VS-8NLP to keep your environment secure from unauthorized surveillance.
