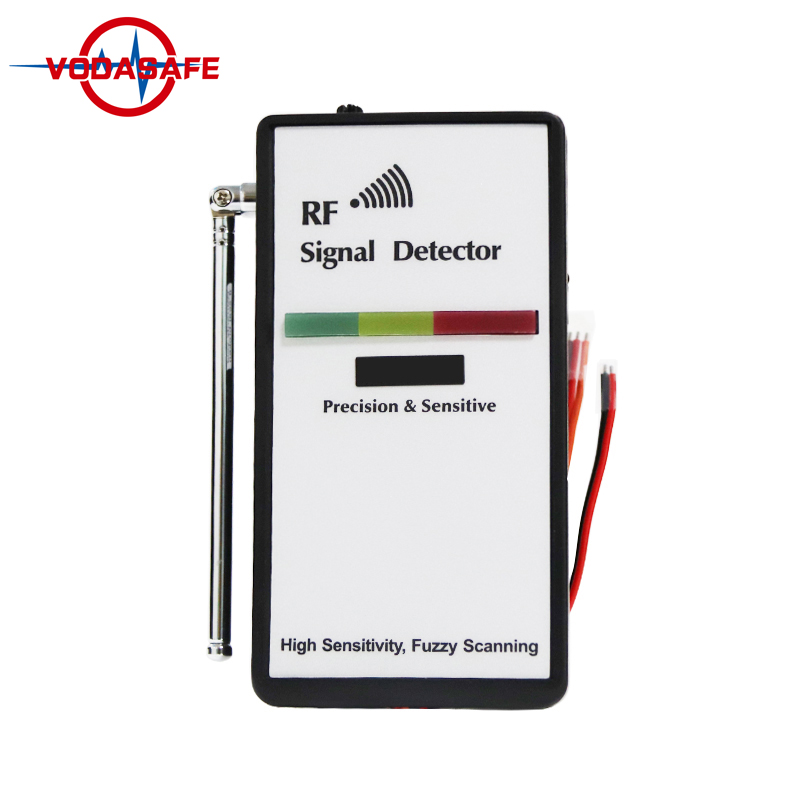

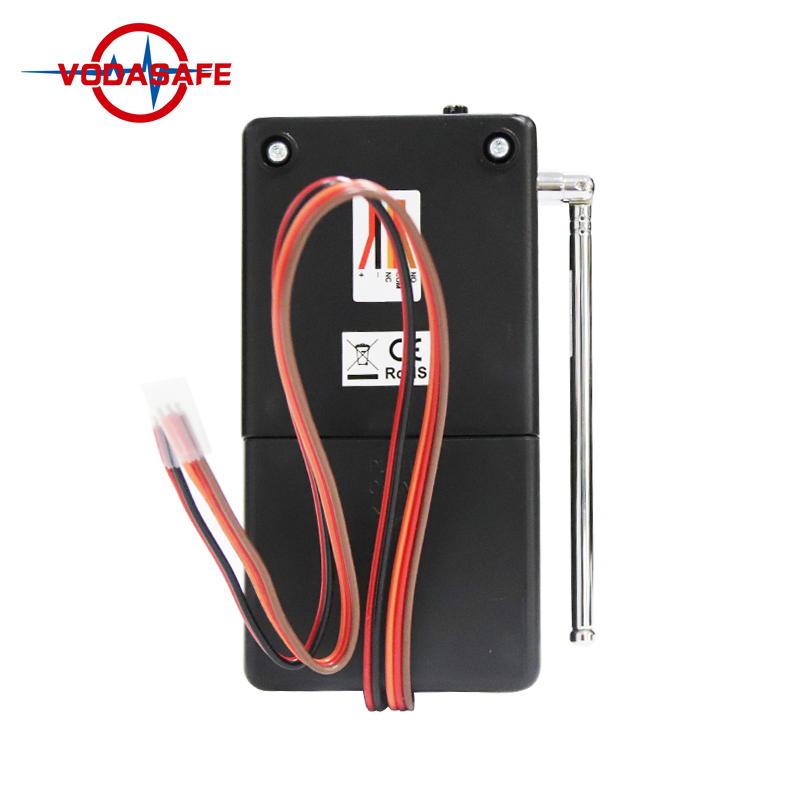

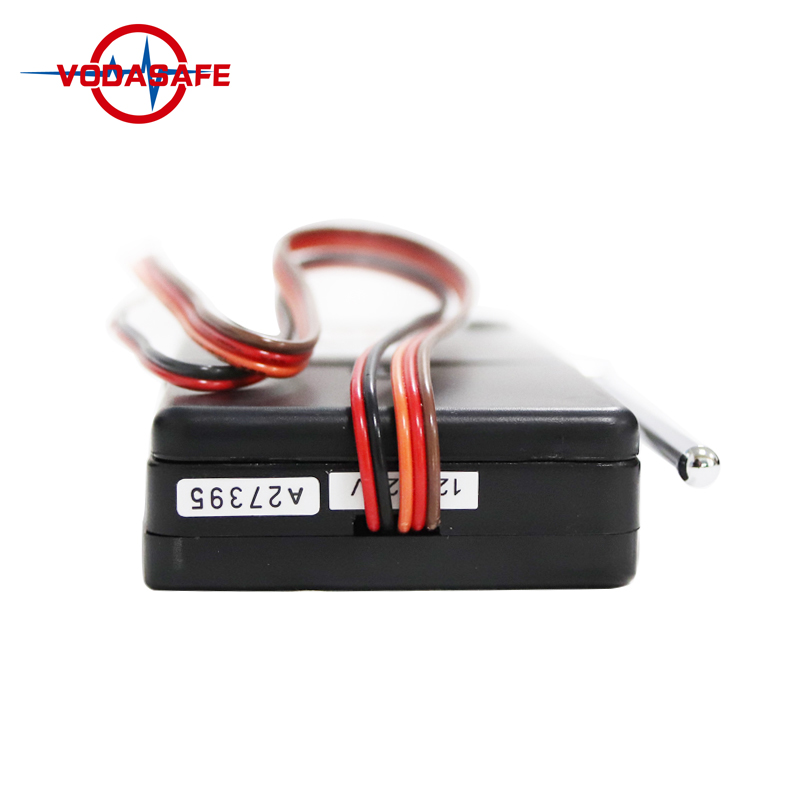

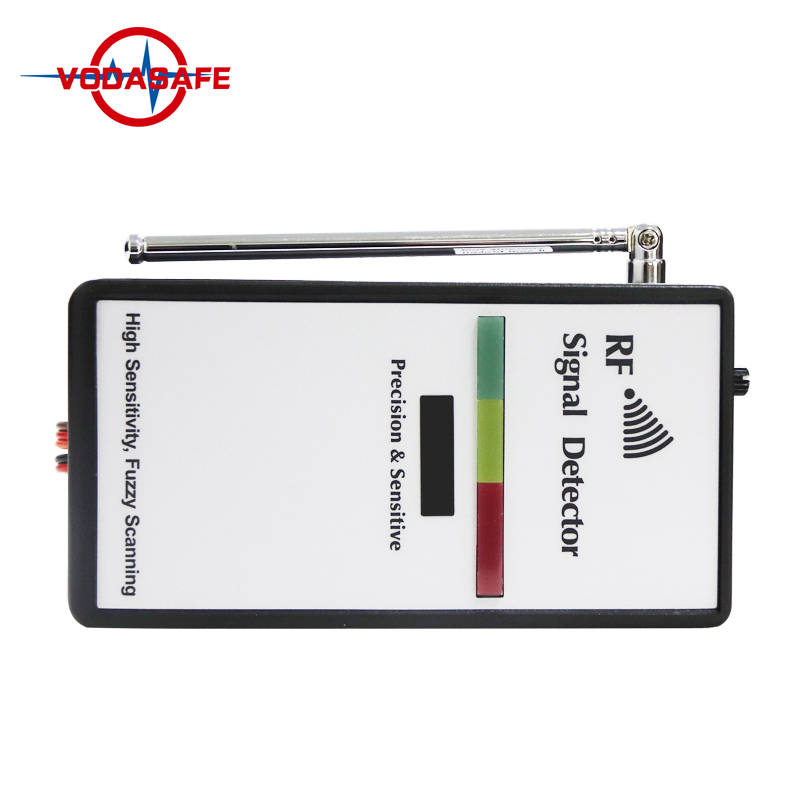

VS-JD101 Jamming Signal Detector by SZ Vodasafe
Description:
The VS-JD101, developed by SZ Vodasafe, is a professional-grade jamming signal detector engineered to safeguard fleet management and GPS tracking systems. Leveraging advanced fuzzy scanning technology, this device efficiently detects jammer signals across a broad frequency range of 50 MHz to 6.0 GHz. Notably, it operates without interfering with essential wireless communications, including cell phones, WiFi, WLAN, Bluetooth, and DECT phones.
Features:
Advanced Signal Detection
Fuzzy Scanning Technology: Enables precise identification of jamming signals while minimizing false positives.
Wide Frequency Range: Covers 50 MHz to 6.0 GHz, effectively detecting common cellphone, WiFi, and GPS jammer signals.
Signal Strength Indication: Utilizes a 10-LED array to visually represent detected signal strength, transitioning from green to yellow to red as signal intensity increases.
Intelligent Environmental Adaptation
Environment Noise Verified Circuit: Reduces false alarms by filtering out background noise.

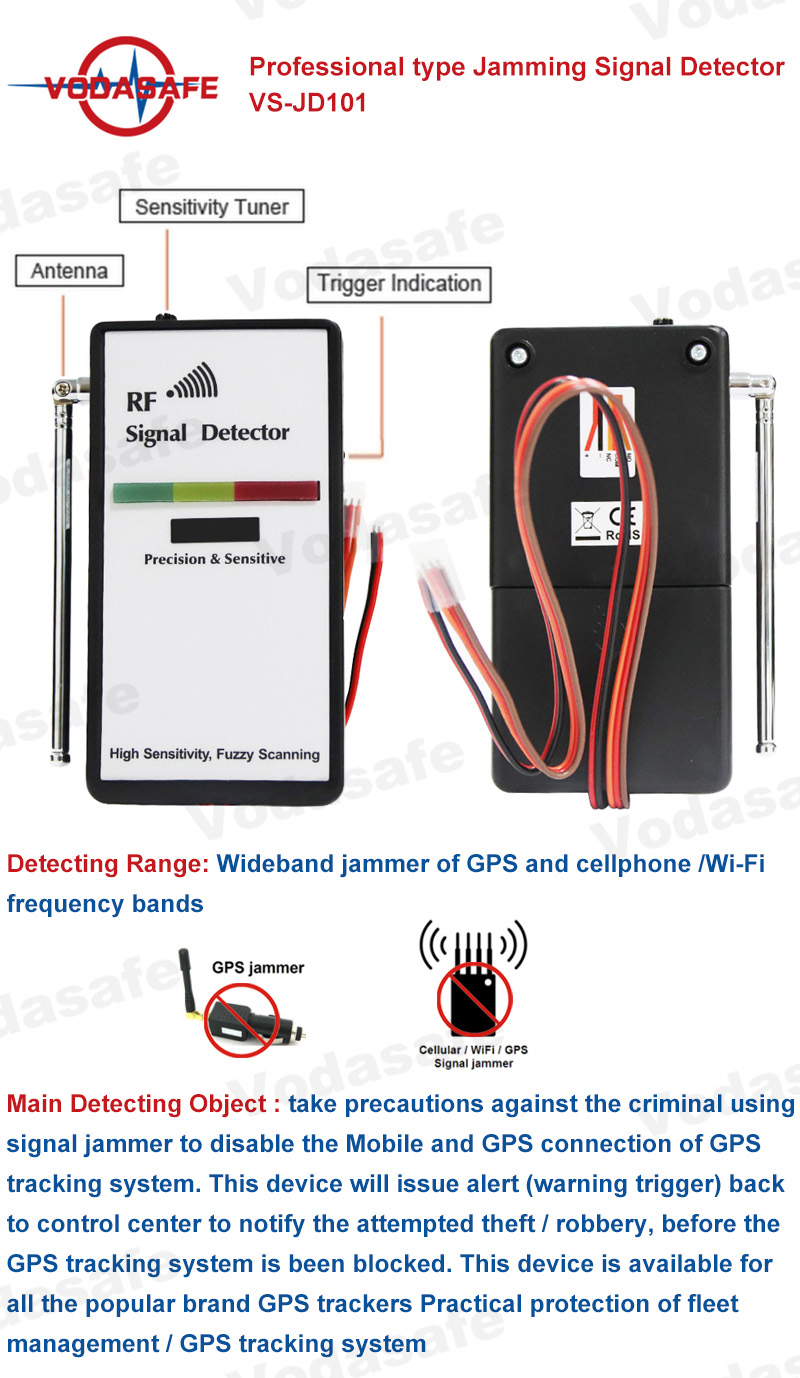

Sensitivity Tuner: Allows manual adjustment to eliminate environmental interference. Factory-set at a 5-minute clock position for optimal performance in most scenarios.
Noise Adjustment Switch: Located in the battery compartment with "H" (High) and "L" (Low) settings. The default "L" setting is suitable for standard environments, while "H" can be used in high-noise areas to minimize false triggers.
Flexible Relay Output System
Dual SOS Trigger Modes:
Mode 1: Hold the SOS button for over 3 seconds to activate automatic dialing.
Mode 2: Press and release the SOS button after 3 seconds to trigger dialing.
Relay Configuration:
NO (Normal Open): Ideal for standard emergency button circuits (brown and red wires).
NC (Normal Close): Connects to GPS power input for quicker triggering, bypassing the 3-second delay (orange and red wires).
1.0A Relay Output: Supports both NO and NC configurations for compatibility with various GPS tracker brands.
Robust Construction and Safety
Compact Design: Measures L 130 x W 68 x T 26 mm (5.1" x 2.7" x 1"), weighing approximately 195g for easy integration.
Wide Power Compatibility: Operates on 12V-24V DC at 150 mA, suitable for automotive applications.
Durability Features:
Water-resistant design (avoid direct exposure).
Heat-resistant construction (do not store in excessively hot environments).
Impact-resistant housing (protect from knocks and drops).
Technical Specifications
|
Dimension |
L 130 x W 68 x T 26 mm (5.1" x 2.7" x 1") |
|
Weight |
Approximately 195g |
|
Power Supply |
12V-24V DC, 150 mA |
|
Detecting Frequency |
50 MHz - 6.0 GHz (wideband for cellphone, WiFi, and GPS jammers) |
|
Warning System |
10-LED signal strength indicator (green to red) |
|
Alarm Output |
1.0A relay with NO (Normal Open) and NC (Normal Close) outputs |
|
Sensitivity Tuner |
Adjustable to eliminate environmental interference |
|
Environmental Noise Switch |
"H" and "L" settings (factory-set to "L") |
Operational Guidelines
Installation Steps
Connect the power input wires (red = +, black = -) to the vehicle's VCC and GND, ensuring correct polarity.
Verify proper operation: The leftmost green LED and the trigger indication LED (upper right) should illuminate.
Signal Detection Process
When a jammer signal is detected, the 10 LEDs will light up sequentially from green to red based on signal strength.
Upon confirming a jammer signal, the relay output triggers the GPS tracker's SOS button to send a help warning. The trigger indication LED will turn off during this process.
Relay Wiring Guide
First GPS Tracker Type (NO Connection):
Connect brown (NO) and red (COM) wires to the emergency button circuit.
Second GPS Tracker Type (NC Connection):
Connect orange (NC) and red (COM) wires to the GPS VCC and GND circuit.
Sensitivity Adjustment
Turn the Sensitivity Tuner to "-" to decrease sensitivity (shorter detection distance).
Turn to "+" to increase sensitivity (longer detection distance). Only adjust if necessary due to strong environmental noise.
Safety and Warranty Notice
Warning
Use as an auxiliary tool; it does not replace comprehensive supervision.
Performance may vary based on environmental conditions.
The manufacturer disclaims liability for damage caused by misuse or malfunction.
Warranty Terms
Unauthorized repair or disassembly voids the warranty.
Damage from water, heat, impact, static electricity, or feedback is not covered.
The manufacturer reserves the right to modify specifications without prior notice.
Package List
VS-JD101 Jamming Signal Detector
Power input wire (red/black)
Relay output wiring harness
User manual
Applications
Fleet management systems
Commercial vehicle tracking
Logistics and transportation security
Asset protection for valuable equipment
For technical support or customization inquiries, contact SZ Vodasafe's customer service team. Trust the VS-JD101 to provide reliable protection against signal jamming threats, ensuring the continuous operation of your GPS tracking systems.
