SZ Vodasafe JM-UAV 50W Anti-UAV RF Module
SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module SZ Vodasafe JM-UAV 50W Anti-UAV RF Module

SZ Vodasafe JM-UAV 50W Anti-UAV RF Module

Item No.: Vodasafe-JM-UAV 50W
SZ Vodasafe JM-UAV 50W RF Module effectively jams drone remote control and video transmission signals, safeguarding core area security.
Request Quote
Description

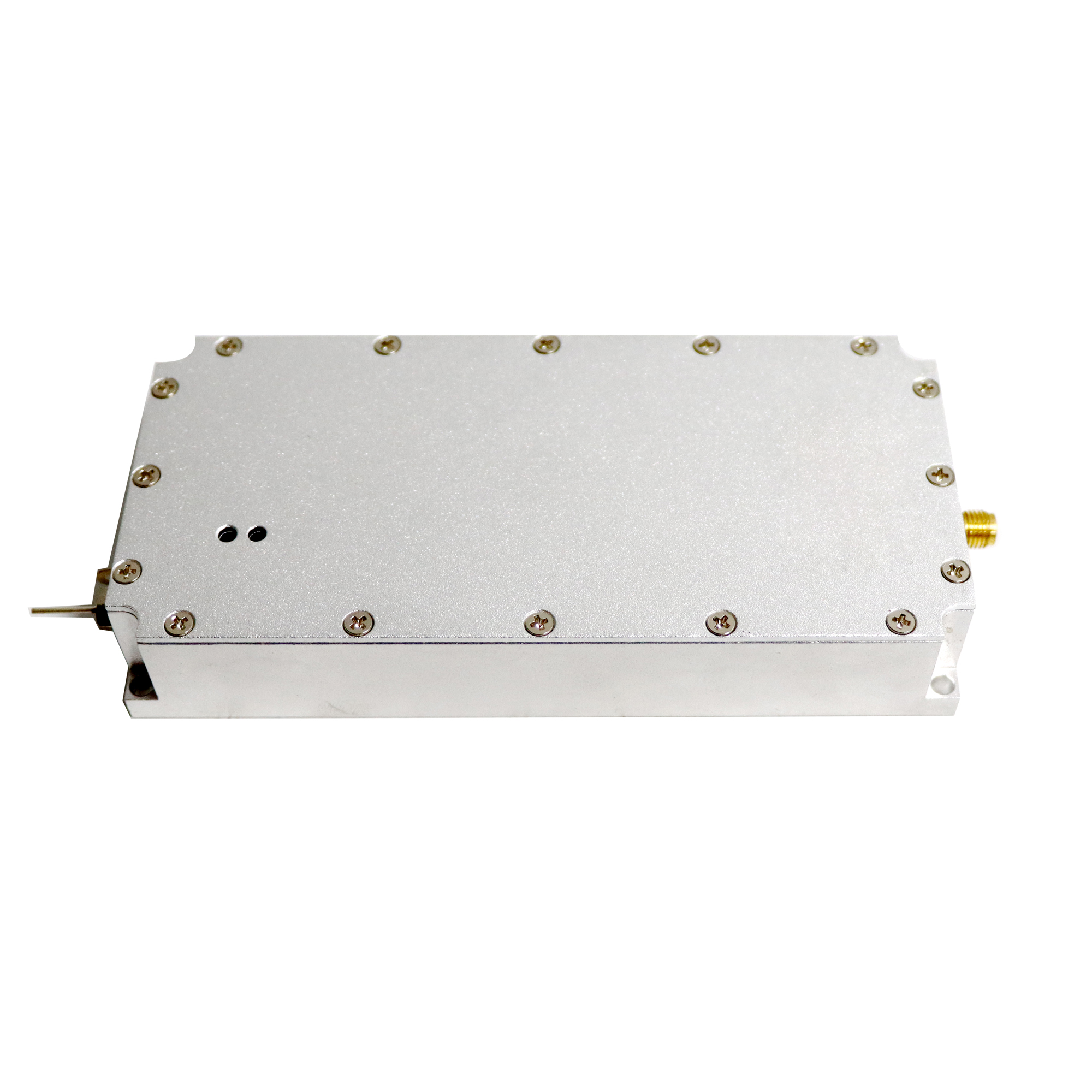

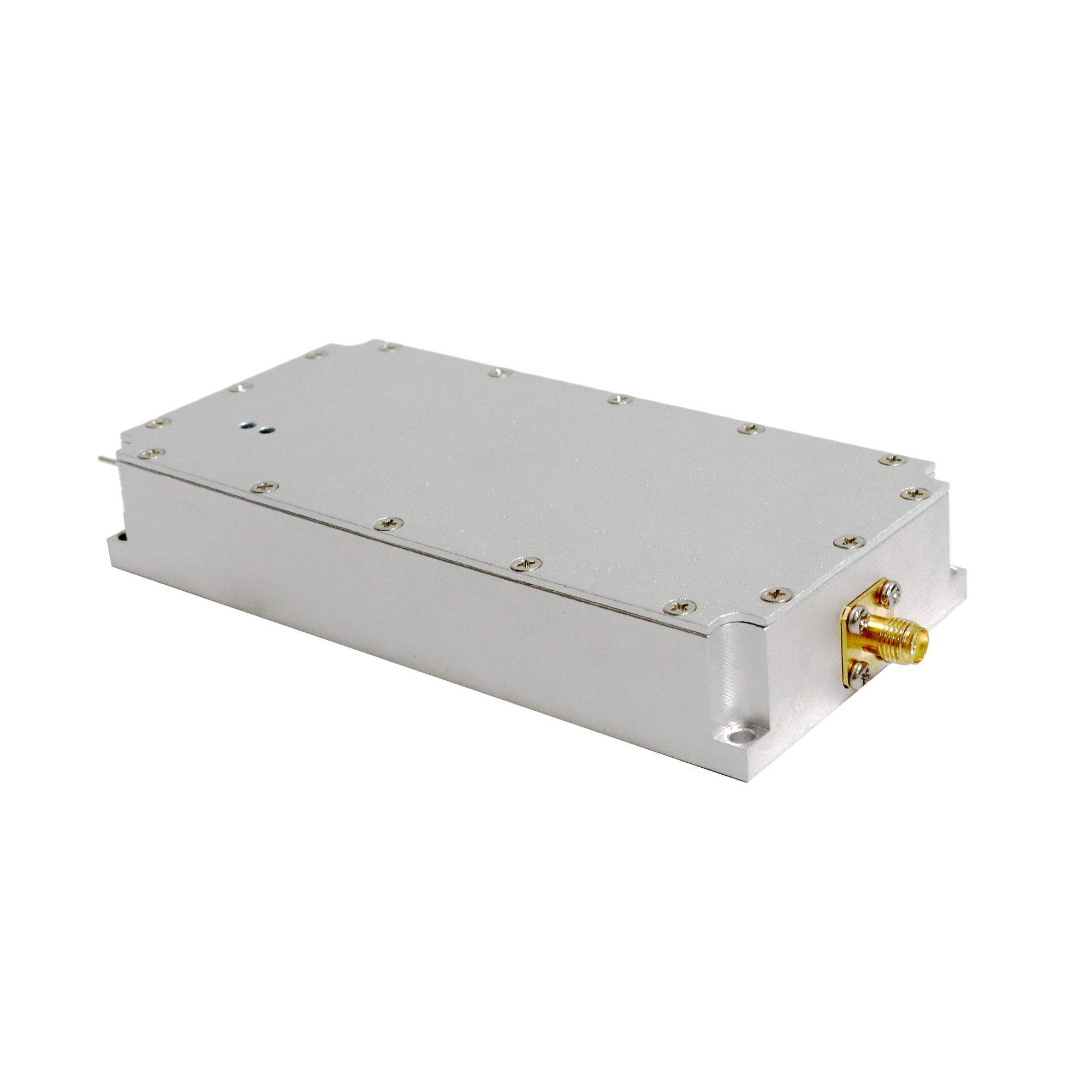

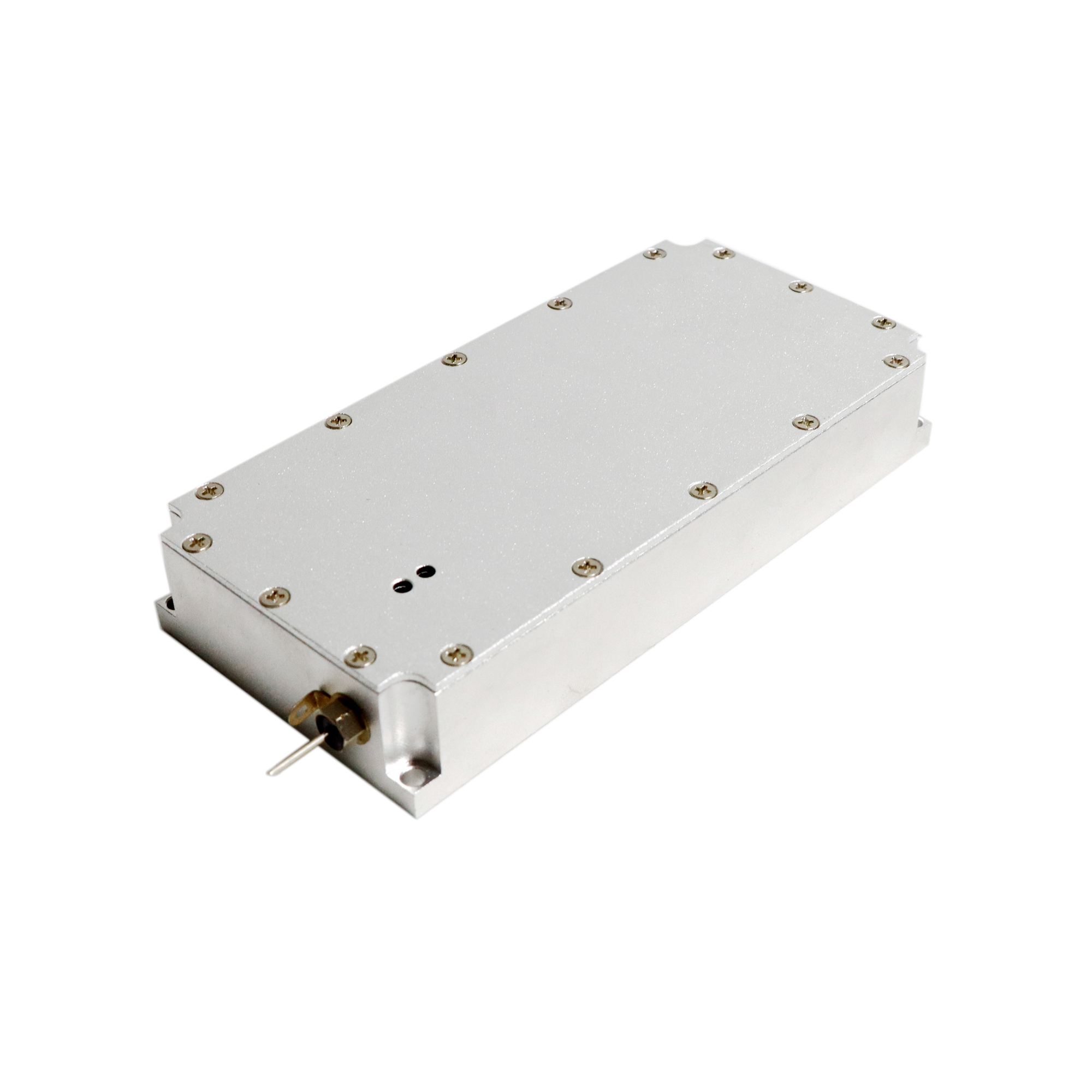

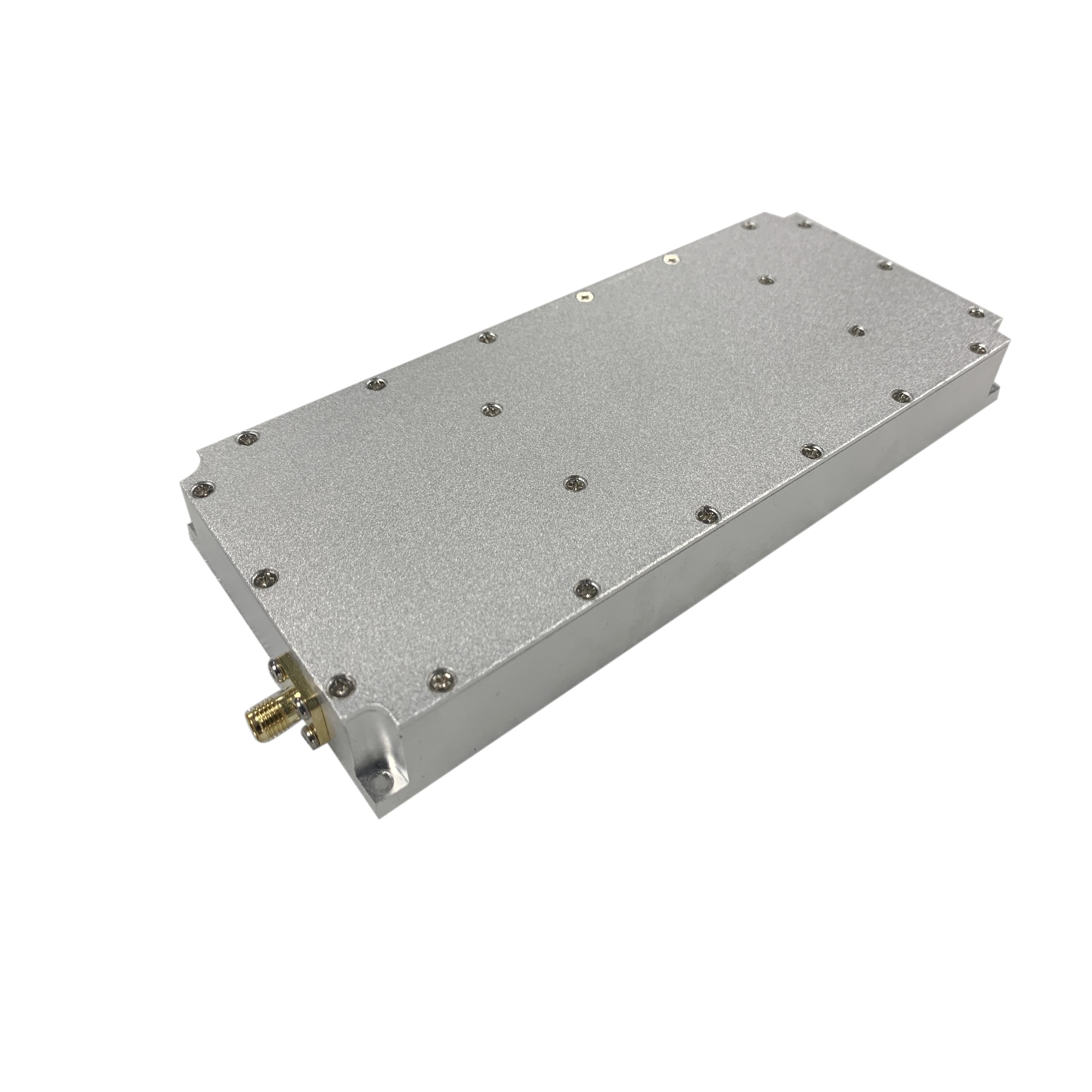

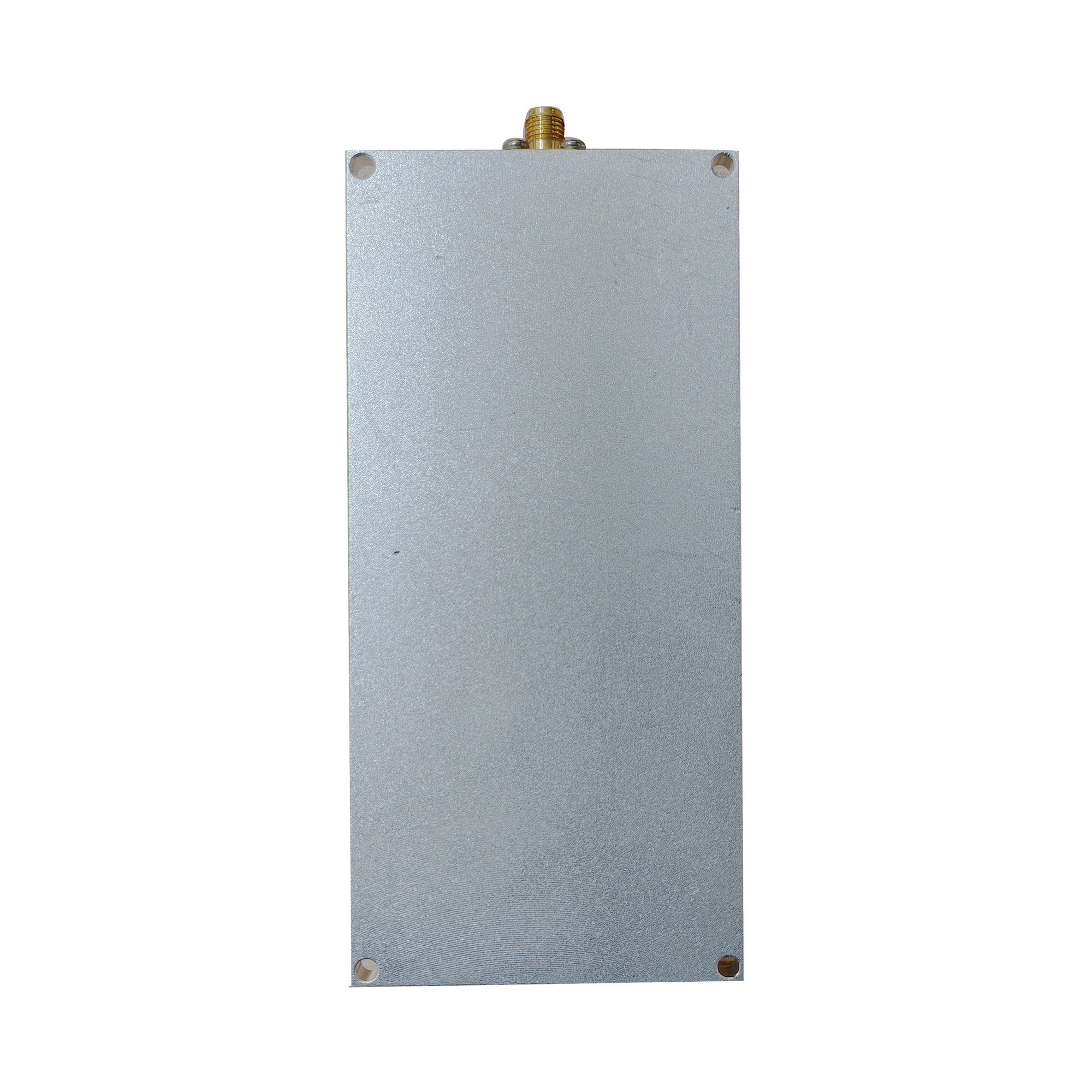

SZ Vodasafe JM-UAV 50W Anti-UAV RF Module
The SZ Vodasafe JM-UAV 50W Anti-UAV RF Module is a high-performance radio frequency (RF) module specifically designed for anti-UAV (Unmanned Aerial Vehicle) and anti-FPV systems. It effectively interferes with the remote control and video transmission signals of drones, ensuring the security of restricted areas such as conference centers, commercial buildings and public venues. With stable output power, wide frequency coverage, and excellent environmental adaptability, this module serves as a core component for reliable anti-drone solutions.

Specifications
Brand Name SZ Vodasafe
Model Number JM-UAV
Place of Origin Guangdong, China
Output Power 50W (47dBm ±1dBm)
Frequency Coverage Multi-channel design to target key drone signal bands:
- CH1 (2.4G Band): 2400-2500MHz
- CH2 (5.8G Band): 5725-5850MHz

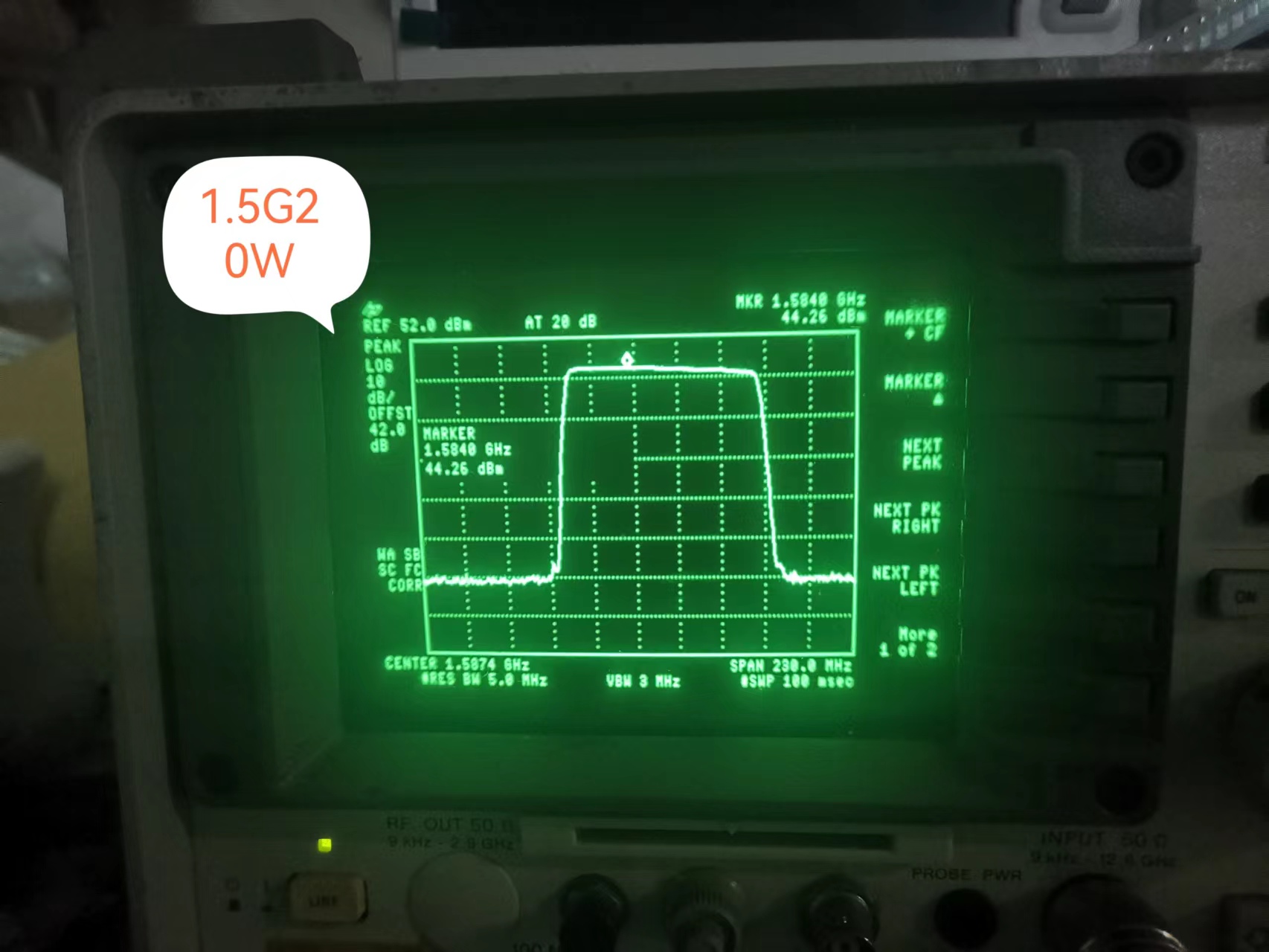

- CH3 (1.5G Band): 1560-1610MHz
- CH4 (5.2G Band): 5150-5350MHz
- Customizable frequency ranges (e.g., 100-200MHz, 200-300MHz, 300-400MHz, ..., 900-1000MHz, 3200-3500MHz) available upon request
Signal Source Voltage-Controlled Oscillator (VCO)
Working Voltage DC 24-28V
Working Current 6.0A ±1.0A
Voltage Standing Wave Ratio (VSWR) ≤1.5 (ensures efficient signal transmission and reduces power loss)
Connector Type Female SMA / N Type (for stable RF signal connection)
Product Size 125×59×21.5mm (without connector); 80×47×20mm (alternative compact size option)
Installation Hole Dimensions 120×54mm, hole diameter Ø3.2mm (for easy and secure mounting)
Product Weight 0.3±0.1kg (standard version); 0.5kg (alternative version)
Working Environment Temperature -20ºC ~ 80ºC (adapts to various indoor and outdoor temperature conditions)
Humidity Resistance 30%-95% (operates normally in high-humidity environments)
Quality Warranty 12 Months (covers manufacturing defects and performance issues)
Features
High-Efficiency Signal Interference: With 50W stable output power, the module effectively blocks drone remote control and video transmission signals (Remote Control/Video Transmission), preventing unauthorized drones from entering restricted airspace.
Wide Frequency Adaptability: The multi-channel frequency design covers mainstream drone working bands (2.4G, 5.2G, 5.8G, 1.5G) and supports customized frequency ranges to meet specific anti-drone scenario requirements.
Reliable Performance: Equipped with a VCO signal source, the module ensures stable signal output. The VSWR ≤1.5 minimizes power reflection, reducing module heating and extending service life.
Easy Installation & Integration: Compact size and standardized installation holes allow for seamless integration into various anti-drone devices (e.g., portable anti-drone guns, fixed anti-drone stations). The SMA/N-type connectors facilitate quick and secure signal connections.
Strong Environmental Adaptability: Operates normally in a temperature range of -20ºC to 80ºC and humidity of 30%-95%, making it suitable for both indoor (conference centers) and outdoor (airports, residential perimeter areas) applications.

Application Scenarios
The JM-UAV 50W Anti-UAV RF Module is widely applicable in scenarios requiring UAV flight restriction and airspace security, including:
Commercial & Civil Venues: Office buildings, high-security commercial complexes and residential care facilities to prevent drone-related privacy breaches or disturbance.
Large-Scale Events: Conferences, sports competitions, and cultural festivals to avoid drone disruptions or privacy violations.
Critical Infrastructure: Airports, power plants, and communication towers to protect facilities from drone collisions or signal interference.
Private & Commercial Areas: High-end residential communities, shopping malls, and industrial parks to maintain a quiet and secure environment.
Packaging & Delivery
Packaging Details: The module is packaged in a sturdy paper box to protect it from damage during transportation.
Supply Ability: 10,000 Cartons per Month (supports large-batch orders for project needs).
Lead Time:
7 days for 1-50 pieces (sample or small-batch orders).
15 days for 51-200 pieces (medium-batch orders).
Negotiable for orders with quantity >200 pieces (large-batch orders).
Port of Shipment: Shenzhen, China (convenient for international logistics and timely delivery).
