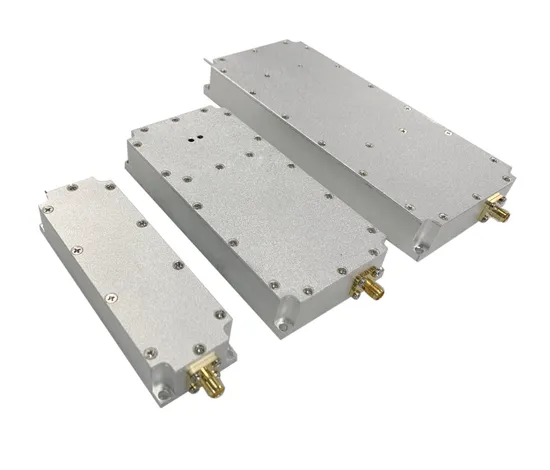

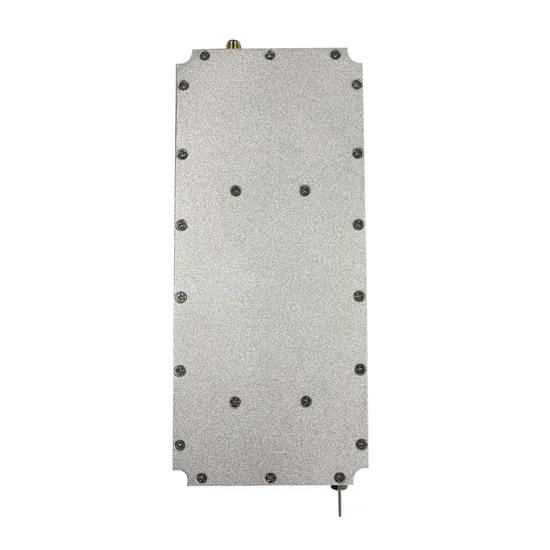

SZ Vodasafe JM-UAV 30W Anti-UAV RF Module
SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module SZ Vodasafe JM-UAV 30W Anti-UAV RF Module

SZ Vodasafe JM-UAV 30W Anti-UAV RF Module

Item No.: Vodasafe-JM-UAV 30W
SZ Vodasafe JM-UAV 30W RF Module, efficiently jams drone remote control, video transmission, and positioning signals with stable power output. Specifically designed to safeguard core areas and large-scale events.
Request Quote
Description
SZ Vodasafe JM-UAV 30W Anti-UAV RF Module
The SZ Vodasafe JM-UAV 30W Anti-UAV RF Module is a high-performance radio frequency (RF) component tailored for anti-Unmanned Aerial Vehicle (UAV) and anti-FPV systems. It efficiently interferes with the remote control, video transmission, and positioning signals of drones, safeguarding restricted areas such as conference centers, civil administrative buildings, and public event venues. Boasting stable 30W output power, wide-frequency coverage, and robust environmental adaptability, this module serves as a core part of reliable anti-drone solutions for both indoor and outdoor scenarios.

Specifications
Specification Item Details
Brand Name SZ Vodasafe
Model Number JM-UAV
Place of Origin Guangdong, China
Output Power 30W

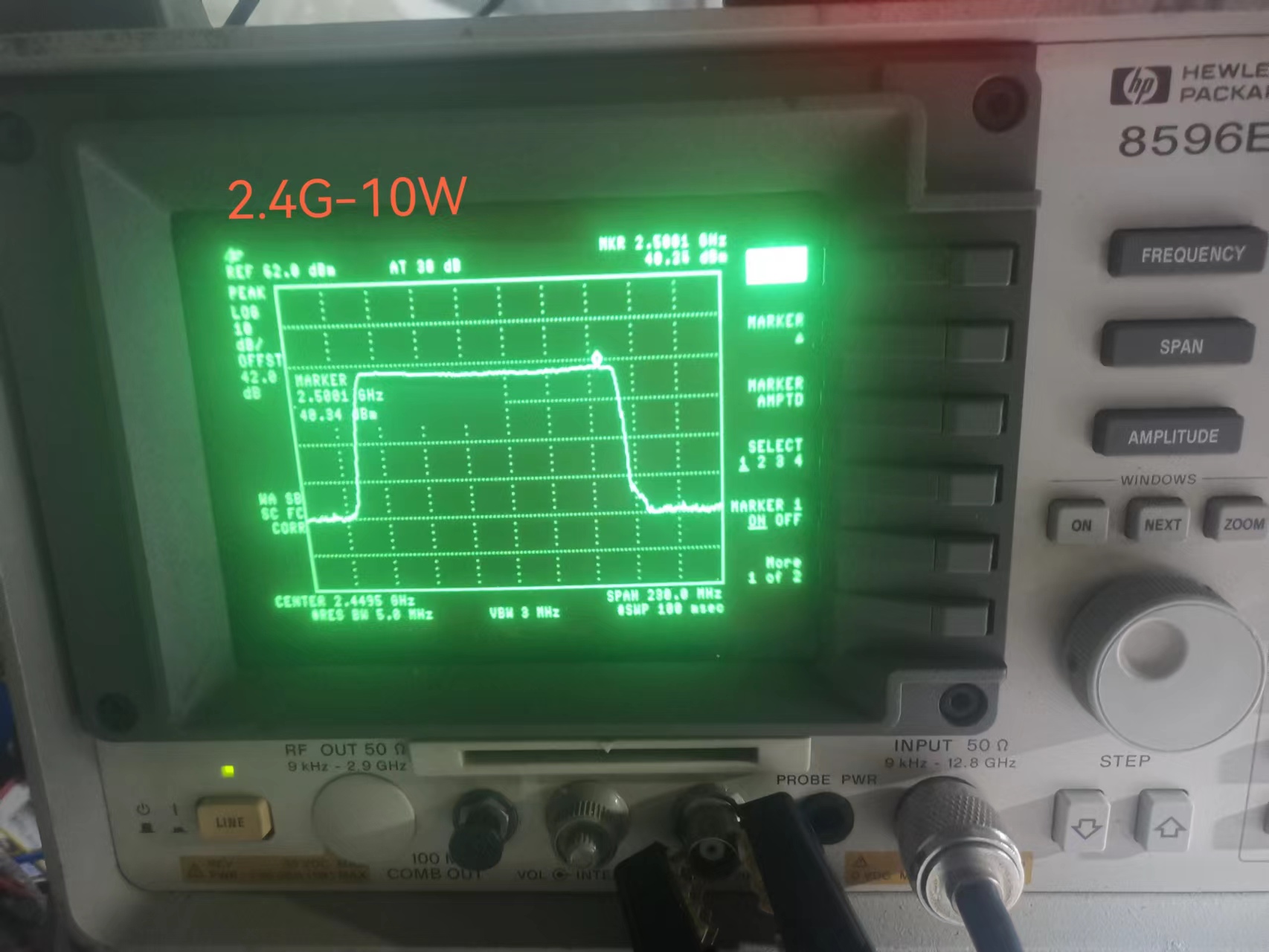

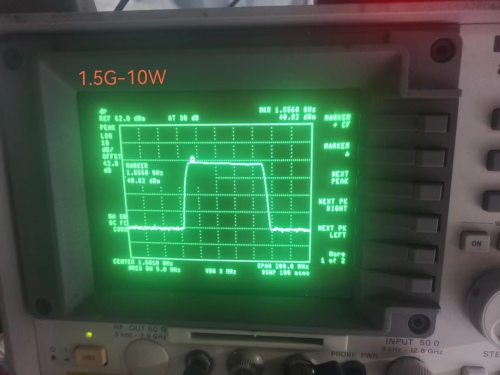

Frequency Range Standard bands: 2.4G (2400-2500MHz), 5.8G (5725-5850MHz), 1.5G (1560-1610MHz), 5.2G (5150-5350MHz)
Customizable band: 260-340MHz (available upon request)
Signal Source Voltage-Controlled Oscillator (VCO)
Working Voltage DC 24-28V
Voltage Standing Wave Ratio (VSWR) ≤1.5
Connector Type Female - SMA / N Type

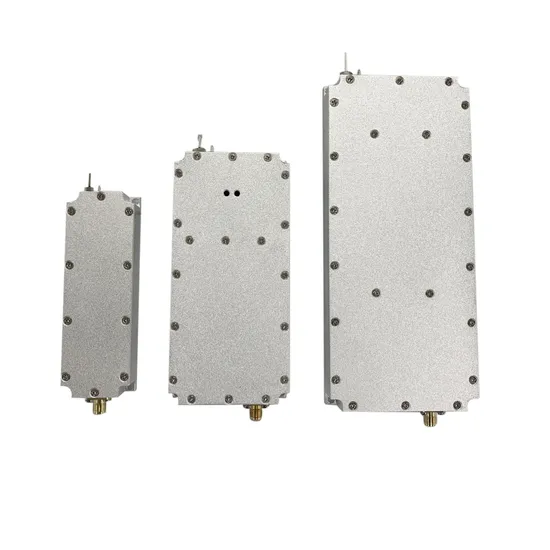

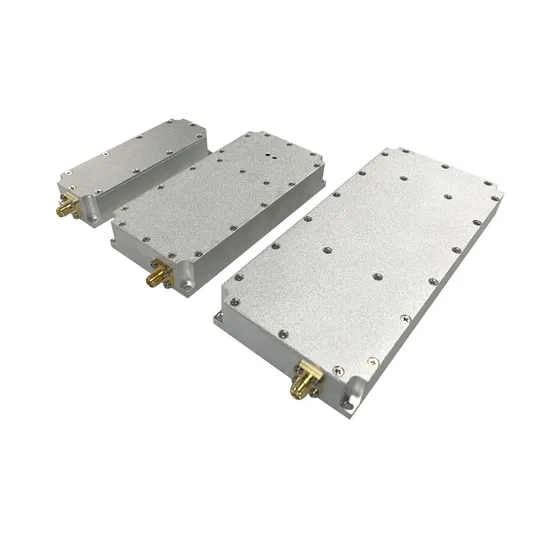

Product Size Option 1: 125×59×21.5mm (without connector)
Option 2: 80×47×20mm (compact design)
Product Weight 0.3±0.1kg (base version); 0.5kg (alternative version)
Working Environment Temperature -20ºC ~ 80ºC
Humidity Resistance 30%-95%
Quality Warranty 12 Months


Features
Efficient Signal Interference: With a stable 30W output power, the module effectively blocks critical drone signals (including remote control, video transmission, and positioning signals), preventing unauthorized drones from entering protected airspace.
Flexible Frequency Coverage: It covers mainstream drone working bands (2.4G, 5.2G, 5.8G, 1.5G) by default and supports customization of the 260-340MHz band, meeting diverse anti-drone requirements in different scenarios.
Reliable Performance: Equipped with a VCO signal source, the module ensures consistent and stable signal output. The VSWR ≤1.5 minimizes power loss, reduces module heating, and extends the overall service life.
Easy Integration & Installation: The compact size (available in two dimension options) and standardized connectors (SMA/N Type) enable seamless integration into various anti-drone devices, such as portable anti-drone guns and fixed anti-drone stations. Installation is simplified for quick deployment.
Strong Environmental Adaptability: It operates normally in a temperature range of -20ºC to 80ºC and humidity of 30%-95%, making it suitable for harsh indoor and outdoor environments.
Application Scenarios
The JM-UAV 30W Anti-UAV RF Module is widely applicable in scenarios requiring UAV flight restriction and airspace security, including:
Civil Administrative & Public Service Areas: Civil administrative buildings and public service compounds to prevent drone-based unauthorized filming, privacy intrusion, or potential safety disturbances.
Large-Scale Events: Conferences, sports competitions, and cultural festivals to avoid drone disruptions, privacy violations, or safety hazards.
Critical Infrastructure: Airports, power plants, and communication towers to protect key facilities from drone collisions or signal interference that may cause operational disruptions.
Commercial & Private Spaces: High-end residential communities, shopping malls, and industrial parks to maintain a quiet, secure, and orderly environment.
Packaging & Delivery
Packaging Details: Each module is packaged in a durable paper box to ensure protection against damage during transportation.
Supply Ability: 10,000 Cartons per Month (capable of meeting large-batch order demands for project-scale applications).
Lead Time:
7 days for orders of 1-50 pieces (sample or small-batch purchases).
15 days for orders of 51-200 pieces (medium-batch orders).
Negotiable for orders with quantity >200 pieces (large-batch orders).
Port of Shipment: Shenzhen, China (facilitates efficient international logistics and timely delivery to global customers).
