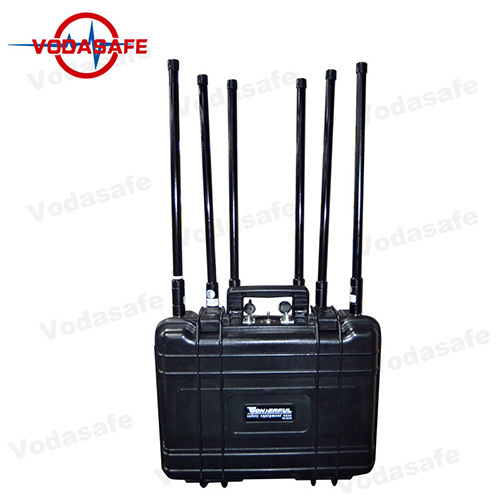

800W High power Jail Cellular Jammer Model:CPJ6022
Bomb Jammer

High Power 6band jammer/Blocker/Isolator Jamming for All Mobile Phone 3G/2g (GSM/CDMA/DCS) /4glte/Wi-Fi2.4G

Item No.: PL6A
The 80 watt portable 6-antenna jammer PL6 jammers all communication equipment signals, protecting VIPs and crowds from radio control bomb explosions.
Add to Inquiry
High Power 6band jammer/Blocker/Isolator Jamming for All Mobile Phone 3G/2g (GSM/CDMA/DCS) /4glte/Wi-Fi2.4G

High Power Portable6BandJammer/Blocker
Vodasafe PL6A
Brief Description
Vodasafe PL6 Is multi-band bomb jammer can be constructed to jam up to six frequencies bands, and the overall RF output power is up to 80 Watts. It is used to prevent RCIED detonation and for convoy and VIP executive protection by creating electronic countermeasures. These powerful and durable Jammer sets are functional counter-IED tools which are currently deployed in many parts of the world, and have a proven track record for prevention of injury and loss of life.

*High-power multi-band jammer.
*Fully portable trolley-type case for easy transportation and rapid deployment.
*Each unit can jam up to 6 frequency bands simultaneously, each frequency band is separate and with adjustable power from max to off (0).
*100% safe VSWR over protection for each modular.
*Build-in AC power DC27V and Battery 27V 20Ah continue working 1.5hours.
*Battery Power and charger stative display via LED screen.
Applicable place:
Anti-terror units, Bomb squads, VIP protection, Convoys protection, Military forces, SWAT teams,Anti-drug units, Riot-control units, Embassies protection, Roadblock protection, Checkpoint protection..

Total Output power: 80W;
Cover Radius:20-100m(GPS signal for 200m,under Signal level ≤-85dBm)@according to the signal density mobile network);
Antenna type: High gain 5-7 dbi Omni-directional antennas;
Power Supply: AC adapter 50 to 60Hz,AC110-240V to DC27V;
Build-in Rechargeable Battery: 27V 20Ah;
Cooling System: High efficiency aluminum alloy radiator+ 6 x cooling fans;
Working Time: working 1.5hours by battery;
Working Temperature: -30~60℃;
Dimension(LXWXH): 460*380*180mm not include antennas;
Package Size: 550x450x300mm;
Order Information :
Vodasafe PL6A :Jamming for All Mobile phone 3G/2G(GSM/CDMA/DCS)/4GLTE/Wi-Fi2.4G
1.CDMA or GSM:851-894MHz or 925-960MHz 43dbm/20W;
2.DCS/PCS:1805-1990MHz 40dbm/10W;
3.3G: 2110-2170MHz 40dbm/10W;
4.4GLTE:700-803 or 790-862MHz; 43dbm/20W;
5.4G WiMAX:2500-2690MHz or 2300-2400MHz; 40dbm/10W;
6.Wi-Fi2.4G:2400-2500MHz 40dbm/10W;
Total Output Power:80W
Package contents:
1pc Signal Jammer
1pc AC Charger
6pcs Antennas
Order Information :
Vodasafe PL6A:Jamming for all Mobile phone 3G/2G(GSM/CDMA/DCS)
