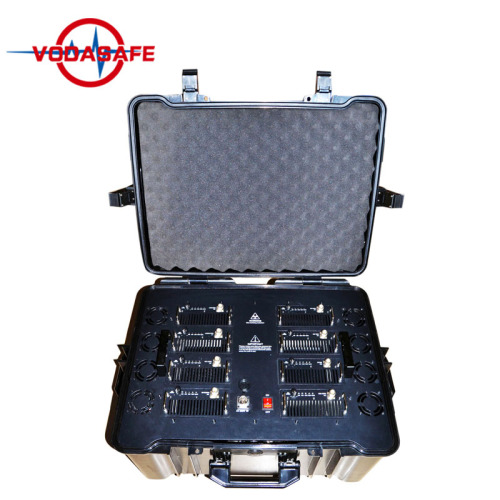

HIGH-POWER VEHICULAR MULTI-BAND JAMMING SYSTEM
Features:
1)Each module is controlled separately. easy maintenance, repair and upgrade.
2)This jammer is covered with safety case, portable, shockproof
3) The frequency band could be added as customer's requirements
4. Each module is designed with five indication lights, to show Power, Run and Alarm (Perfect VSWR Alarm System, fully protected circuit in case of disconnection of antennas)
5）Better cooling system, could work 24/7 continuously.
6）Output power is adjustable.
Technical specifications:
|
Frequency Band |
GSM,CDMA 3G 4G VHF UHF 433,315 |
|
Total output power |
Up to 800 watt |
|
Jammer module number |
8pcs |
|
Jammer Module |
Each jammer module with antenna can be used as single jammer, all modules are controlled separately |
|
Cooling system |
Systematic smart cooling system |
|
System Protection |
VSWR,over-voltage, over-current |
|
Remote control |
Full system control by remote control panel |
|
Antenna type |
High Gain Ominidirectional Antennas |
|
Number of antennas |
8pcs |
|
Power supply: |
AC110-240V,/DC27V |
|
Jammer size |
L663 x W496 x H338mm |
|
Jamming system weight |
70kgs |
|
Operator temperature range |
-35℃-+80℃ |
|
Operator humidity |
Up to 80% |
Applications:
Bomb disposal squads, VIP protection ,special (S.W.A.T),military security forces, bomb squads,anti-terro units,anti-drug units, Border control units ,checkpoint personnel used .
