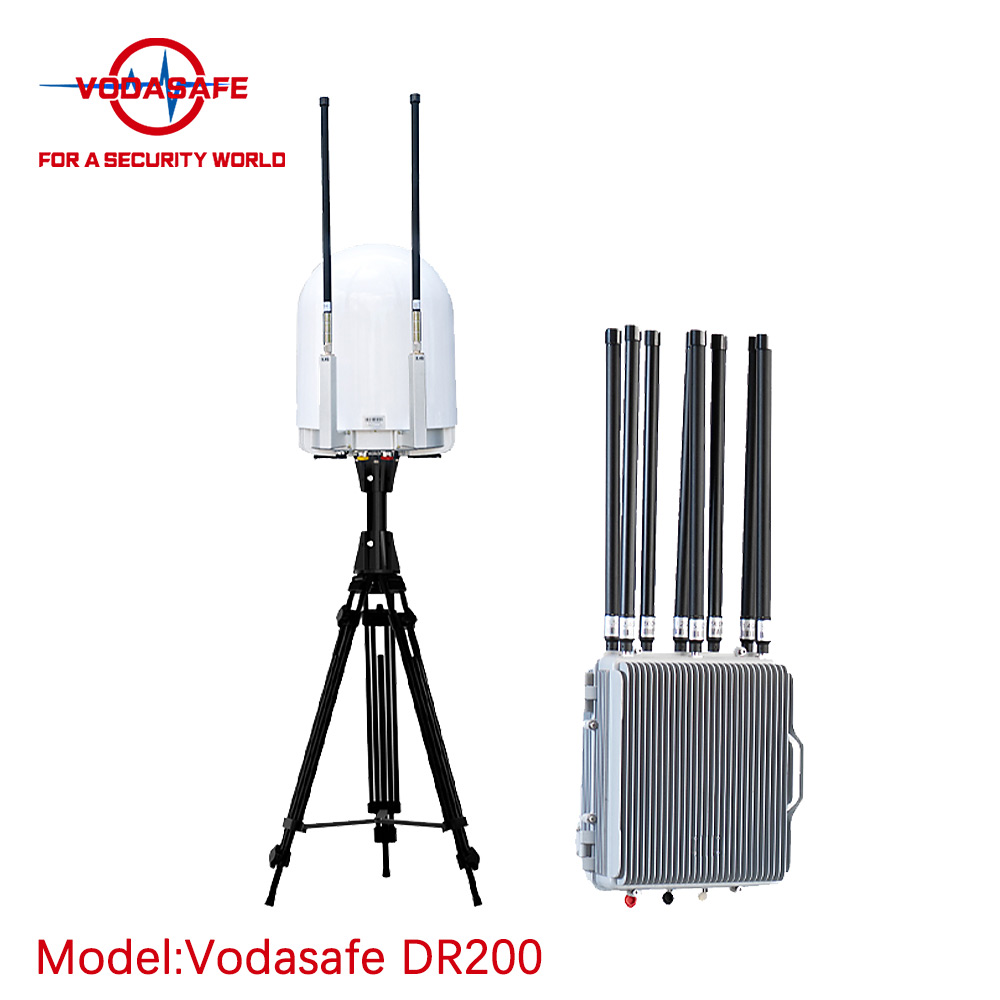

| Number | Name | Performance indicators |
|
|
Detection frequency bands | 70MHz-6GHz full frequency band scanning, detection and display (Spectrum analysis function) |
|
|
Key detection frequency bands | 433MHz, 530MHz, 750MHz, 800MHz, 900MHz, C |
|
|
Detection distance | 5km (good visibility and electromagnetic environment noise: -90 to -95dB) |
|
|
Positioning distance | DID 5 km, RID≥2 km (good visibility and electromagnetic environment noise: -90 to-95dB) |
|
|
Locate type | Devices supporting the DID protocol (O2, O3, O3+, O4, O4+),Models supporting the RID protocol, including the entire DJI and Autel product with RID functionality. |
|
|
FPV video transmission detection range | ≥1.5km (Supports viewing real-time video, good visibility, and simulated transmission power of image transfer is ≥2.5 W) |
|
|
Analog video transmission capture | Support view analog video |
|
|
Detection range | The horizontal detection angle can reach 360° |
|
|
Detection response time | The time required from when the drone is powered on to when it discovers and reports the drone ≤ 5s (Under close-range line-of-sight testing conditions: the distance between the target aircraft and the equipment is ≤500 meters) |
|
|
2.4GHz or 5GHz Direction finding accuracy | ≤±15° (RMS, Under site conditions with no obvious obstructions or obvious electromagnetic interference) |
|
|
Detection display | Drone distance, flight altitude, speed, position (including longitude and latitude, and required to be accurate to 1 meter), drone model, drone SN code, drone take-off point, drone return point, drone real-time trajectory, etc. |
|
|
Jamming distance | ≥3km (depends on working conditions, the drone takes off at 5km altitude, height ranges from 100-300m.The jamming range of Mavic 3 is ≥2.5 km, while that of Mavic 2 is ≥3 km.) |
|
|
Jamming azimuth coverage | The horizontal detection angle can reach 360° |
|
|
Jamming frequency bands | Fixed frequency bands: 740MHz~840MHz 50W 860MHz~930MHz 50W 1170MHz~1290MHz 50W 1400MHz~1490MHz 50W 1560MHz~1620MHz 50W 2385MHz~2490MHz 100W 5150MHz~5250MHz 50W 5725MHz~5850MHz 100W |
|
|
Total power consumption | ≤1800W |
|
|
Jamming response time | ≤7s |
|
|
Spoofing signals(Optional Configuration) | BDS-B1,GPS-L1C/A,GLONASS-L1,Galileo-E1 |
|
|
Spoofing radius(Optional Configuration) | 1-3km(depends on environment and drone models) |
|
|
Strategies (Optional Configuration) | Directed expulsion, area denial, spatial spoofing, time-space spoofing |
|
|
spoofing response time(Optional Configuration) | ≤4s |
|
|
Cloud platform |
(4) Log playback and statistical recording: The system records drone intrusion logs, including information such as angle, alert time, and frequency. It allows playback of drone intrusion records and can generate statistical reports on drone intrusions. (5) Positioning : The system features GPS positioning, allowing the location to be marked on a map (6) It has the ability to display device offline, standby, power-off, and abnormal status. (7) It is capable of deceptively interfering with the satellite navigation coordinate information received by drones that use satellite navigation positioning, and has functions such as straight line mode and circle mode.(Optional Configuration) |
|
|
Jamming equipment weight | ≤33kg |
|
|
Jamming equipment size | Length 461mm*width 305mm*height 531mm |
|
|
Detection equipment weight | ≤17kg |
|
|
Detection equipment size | Diameter 400mm*height 531mm |
|
|
Environmental adaptability | Working temperature -40ºC-60ºC±2ºC |
|
|
Protection level | IP66 |
|
|
AI Self-learning for Model Library Expansion | Optional Configuration |
| Serial number | System/Component Name | Component name and parameters | Quantity |
| 1 | Radio detection system | Antenna array unit (Built-in) | 1 |
| Detection signal unit (Built-in) | 1 | ||
| Positioning unit (Built-in) | 1 | ||
| FPV detector unit (Built-in) | 1 | ||
| Power supply and other components (Built-in) | 1 | ||
| Shell assembly (combination) | 1 | ||
| 2 | Radio jamming system | Omni-directional antenna element (Built-in): 800 MHz,900 MHz,1.2 GHz,1.4 GHz,1.5 GHz,2.4 GHz,5.2 GHz,5.8 GHz |
1 |
| Radio frequency module unit (Built-in): 700 MHz-840 MHz 50 W 860 MHz-930 MHz 50 W 1170 MHz-1290 MHz 50 W 1400 MHz-1490 MHz 50 W 1560 MHz-1620 MH 50 W 2385 MHz-2490 MHz 100 W 5150 MHz-5250 MHz 50 W 5725 MHz-5850 MHz 100 W |
1 | ||
| Main body shell assembly (combination) | 1 | ||
| Switching power supply 2000 W-28 V (Built-in) | 1 | ||
| Switching power supply 1000 W-30 V (Built-in) | 1 | ||
| 3 | Jamming control board | Integrated function control board (Built-in) | 1 |
| 4 | Tripod assembly | Optional (a detection tripod is included by default) | 1 |
| 5 | Internet cable | 5 m | 3 |
| 6 | Power cable | 5 m | 2 |
| 7 | Aviation box | Jamming 720 mm×570 mm×480 mm 18.2 kg Detection 750 mm×520 mm×480mm 9.7 kg |
2 |
   |
|
| Serial number | Name | Picture | Quantity | Size (mm) | Weight (kg) |

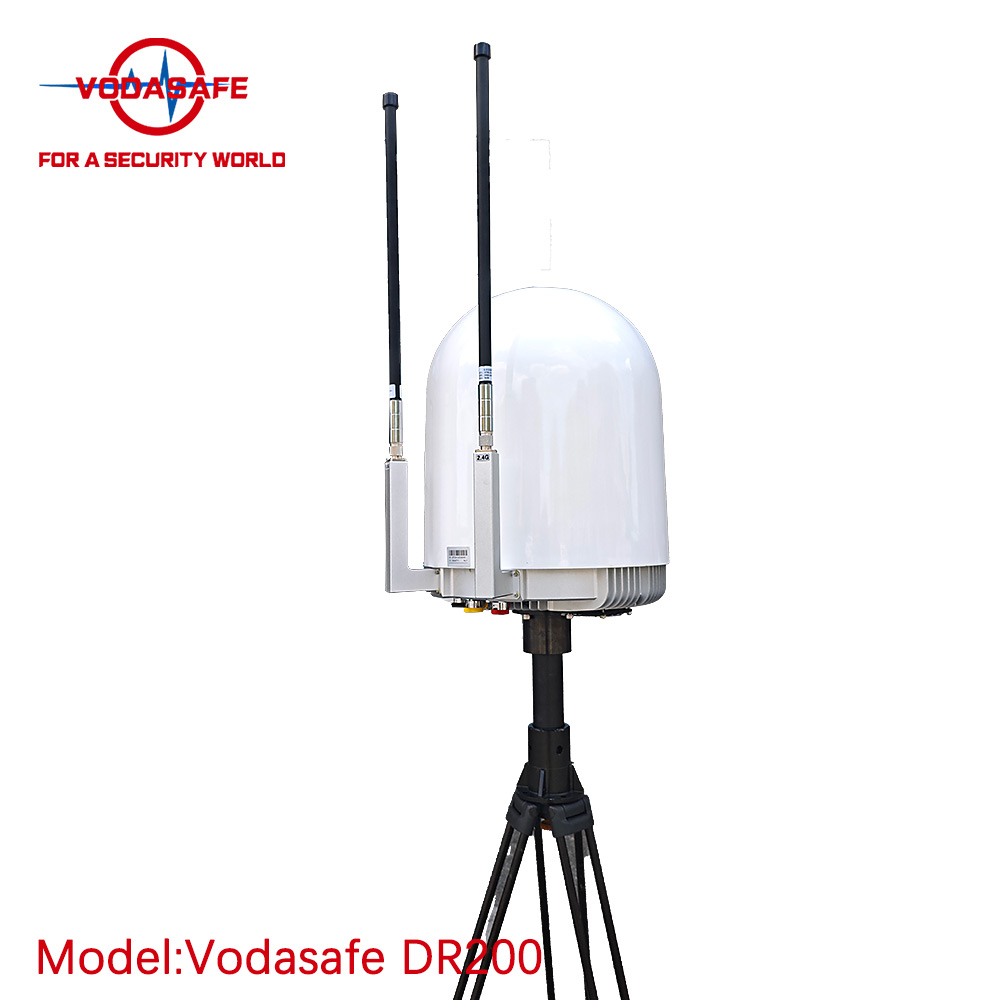

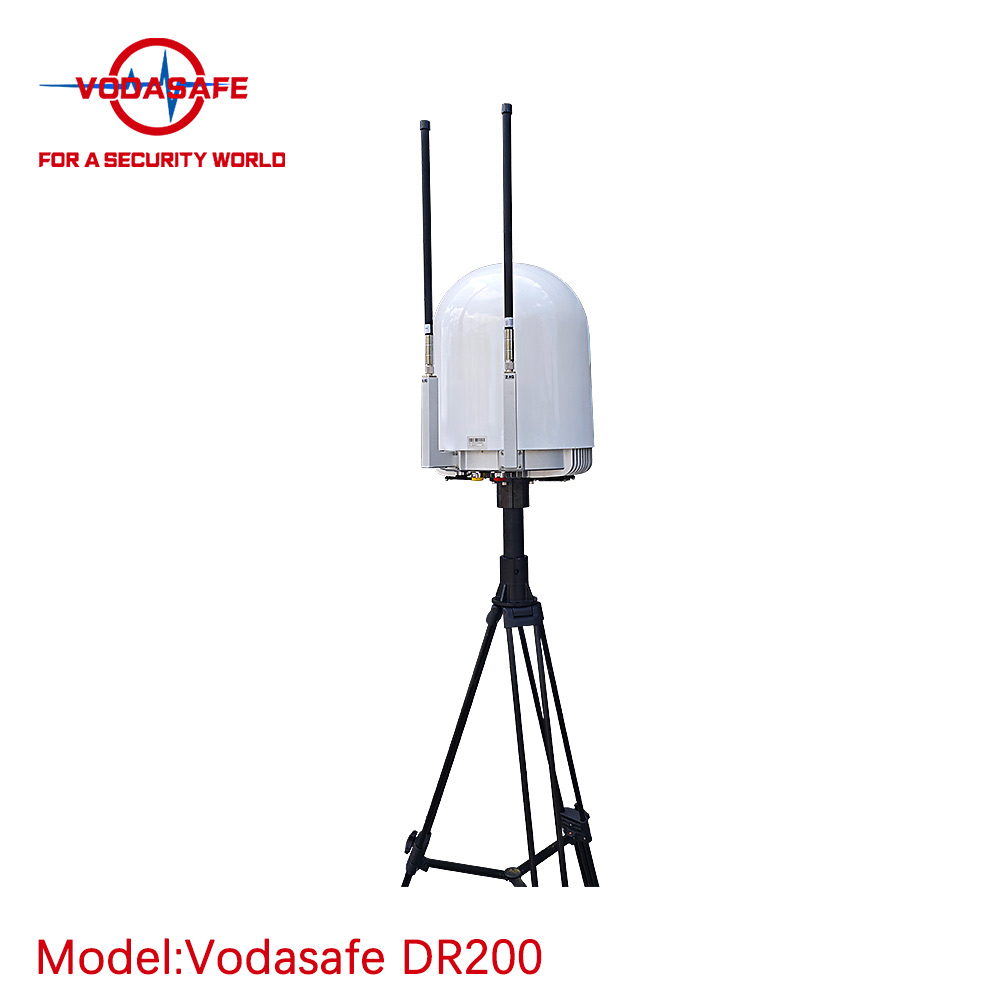

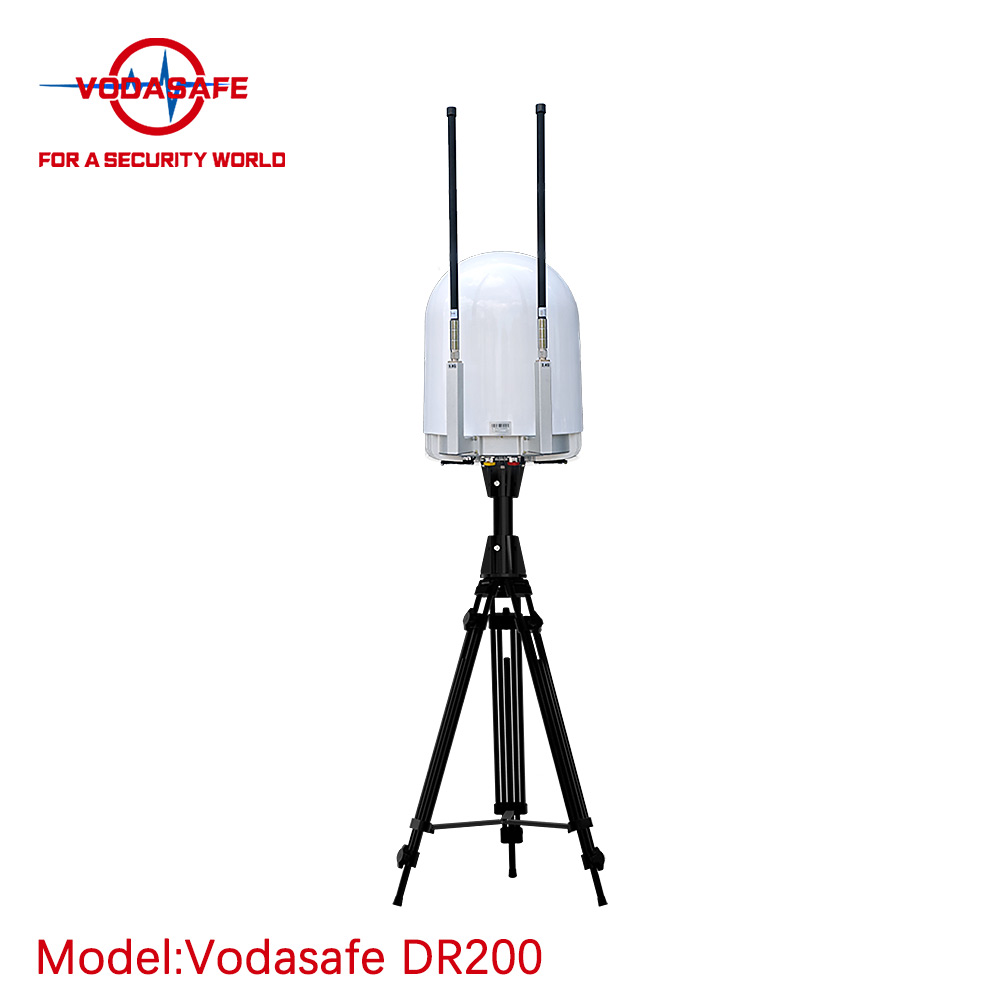

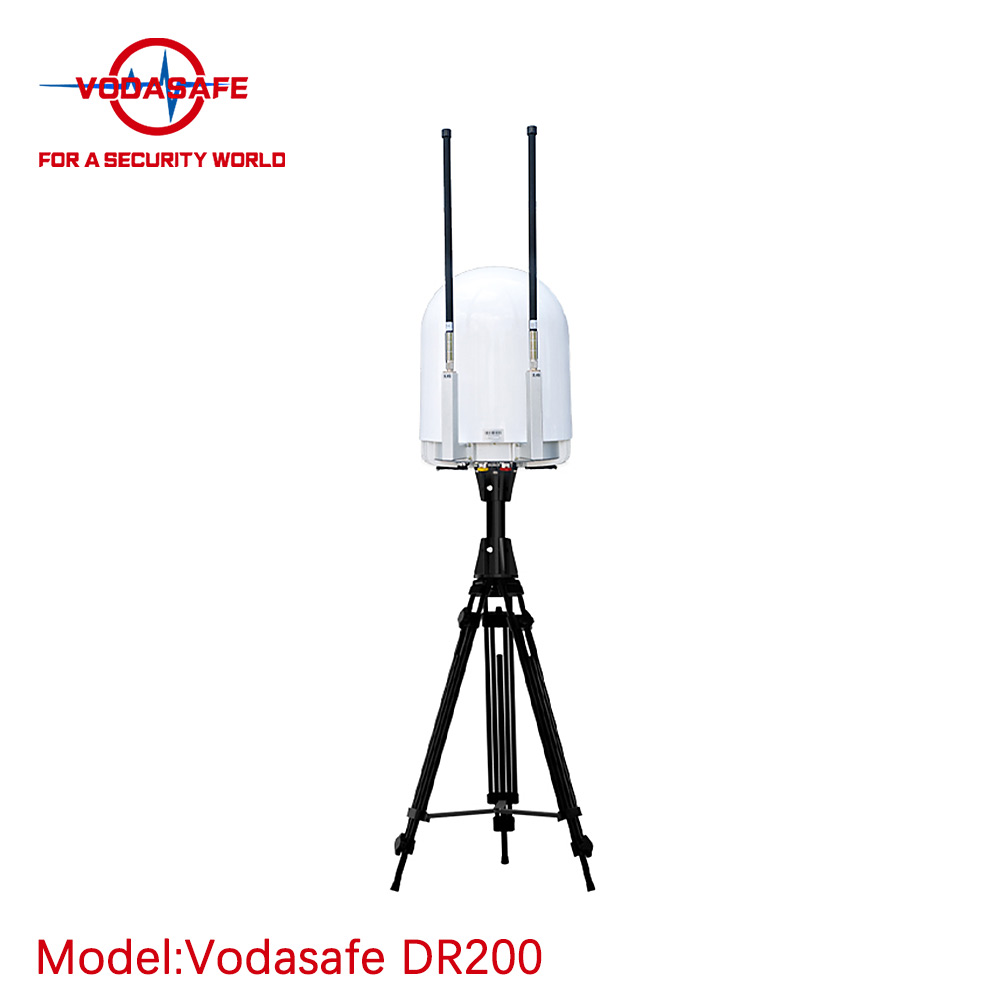

| 1 | Detection host (2 antennas) |
 |
1 | Diameter 400*height 531 | 16.1 |

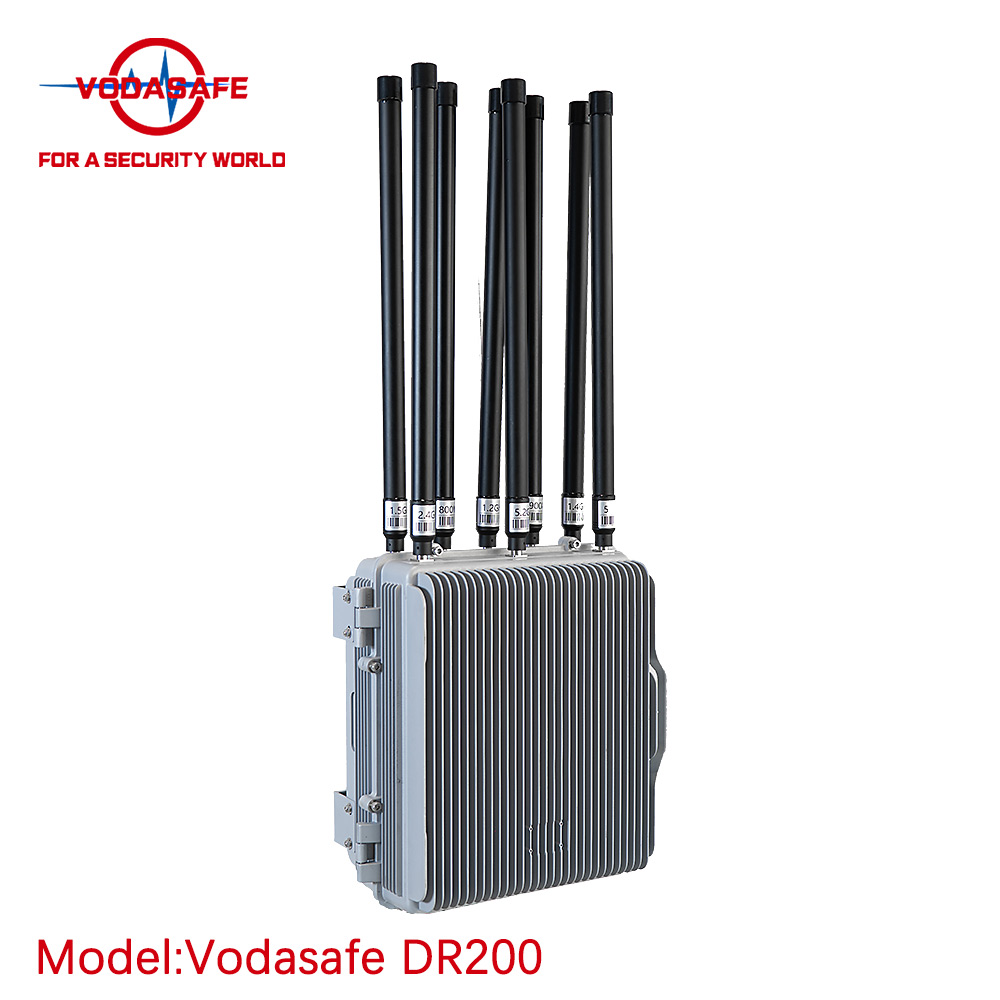

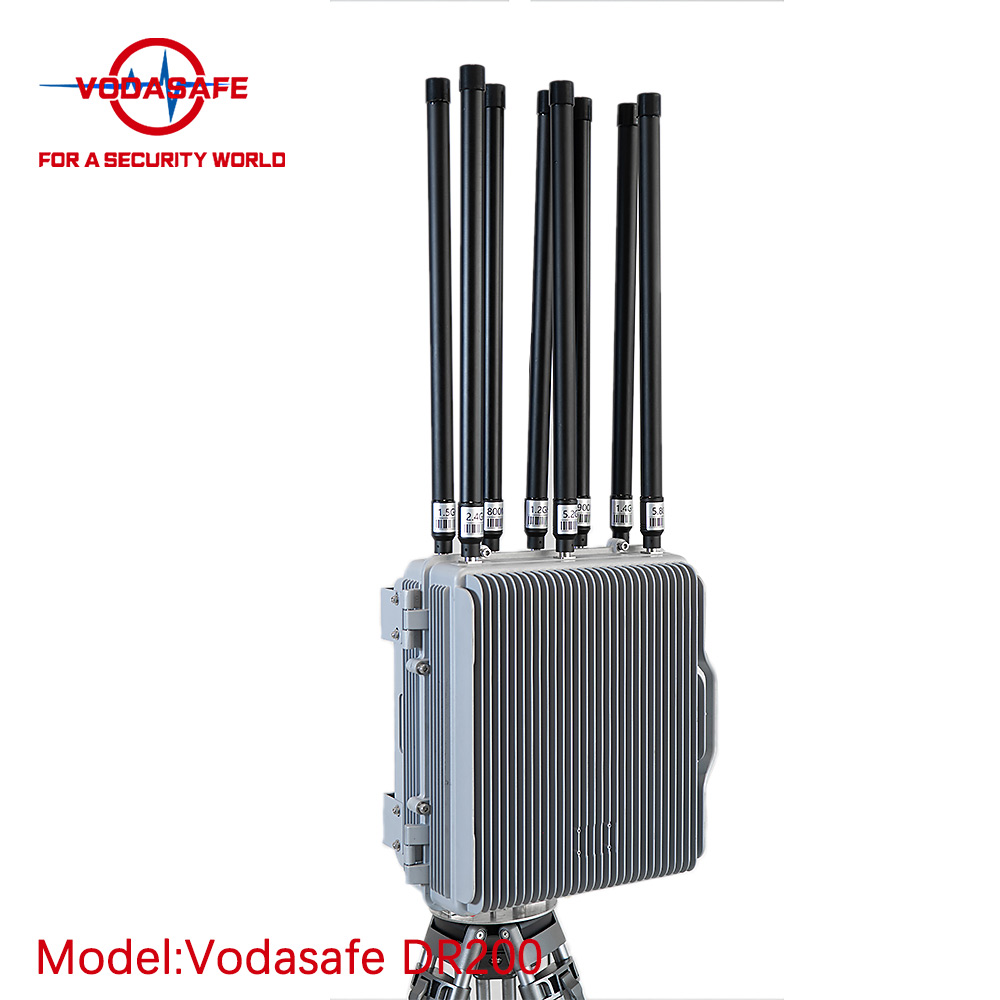

| 2 | Jamming host |  |
1 | Length 461*width 305*height 531 | 29.2kg |
| 3 | Jamming antenna |  |
8 | Diameter 32*height 650 | 0.4 |
| 4 | Detection host tripod |  |
1 | Diameter 50*height 800 | 4.45 |
| 5 | Cable |   |
5 | / | 0.55 |
| 6 | Detection host aviation box |  |
1 | 750mm×520mm×480mm | 9.7 |
| 7 | Jamming host aviation box |  |
1 | 720mm*570mm*480mm | 18.2 |
| Interface number | Interface name and description |
| 1 | Switching power supply button |
| 2 | AC IN:110V-240V |
| 3 | LAN port |
| 4 | WAN port |
| 5 | USB interface |
| 6 | Cooling fans |
| 7 | 5.8 GHz detection antenna |
| 8 | 2.4 GHz detection antenna |
| Interface number | Interface name and description |
| 1 | 5.8 GHz transmitting antenna |
| 2 | 1.2 GHz transmitting antenna |
| 3 | 5.2 GHz transmitting antenna |
| 4 | 915 MHz transmitting antenna |
| 5 | 1.4 GHz transmitting antenna |
| 6 | 800 MHz transmitting antenna |
| 7 | 1.5 GHz transmitting antenna |
| 8 | 2.4 GHz transmitting antenna |
| 9 | Signal control |
| 10 | LAN port |
| 11 | AC IN:110V-240V |
| 12 | Switching power supply button |
| Module | Power supply interface | Data interface |
| Detection equipment | 3-core power cord(AC 220V 50 Hz) | LAN(RJ45),WAN(RJ45),USB data interface |
| Jamming equipment | 3-core power cord(AC 220V 50 Hz) | LAN(RJ45),DATA (9-core) |
