Vodasafe DR600-A All-Scenario Drone Detection and Positioning Device
Technical Specifications
1. Introduction
With the rapid development and widespread adoption of drone technology, its applications across multiple fields have become increasingly extensive. However, illegal intrusions and malicious reconnaissance activities occur frequently, posing serious threats to national security, public safety, and personal privacy. The Vodasafe DR600-A All-Scenario Drone Detection and Positioning Device focuses on core requirements of "full-band detection + precise positioning + multi-scenario adaptation." With its lightweight design (≤8 kg), long endurance capability (≥6 hours), and multiple deployment modes including backpack, fixed, and vehicle-mounted configurations, it provides fast and reliable front-end drone detection support for daily patrols and critical asset protection scenarios.
2.Terms and Abbreviations
Device: All-Scenario Drone Detection and Positioning Device Vodasafe DR600-A.
Supplier: Refers to the seller or manufacturer providing the device.
User: Refers to individuals or organizations purchasing the device for use in relevant projects.
DID (Drone ID): Drone Identification Protocol, used for drone identity information transmission and identification.
RID (Remote ID): Remote Identification Protocol, used for remotely obtaining drone position, identity, and other information.
FPV (First-Person View): First-person perspective, real-time viewing of drone flight perspective through video transmission products.
GIS (Geographic Information System): Geographic Information System, used for presenting geospatial data and environmental information.
3.Product Overview
This product integrates full-band detection, drone and pilot positioning, FPV video interception and storage functions. It can accurately identify quadcopters, fixed-wing aircraft, DIY-type drones, and FPV-class drones in complex electromagnetic environments, and trigger audio-visual alarms. It is mainly applicable to daily inspection, critical asset protection, team coordinated operations, and investigation and evidence collection scenarios.
3.1 Product Name
All-Scenario Drone Detection and Positioning Device
3.2 Product Model
Vodasafe DR600-A
3.3 Product Application
This product is applicable to multiple scenarios including public security patrols, restricted zone protection, large-scale event security, and enterprise park security. It can accurately identify mainstream drones such as DJI and Autel, as well as FPV racing drones and DIY drones, achieving multi-dimensional information monitoring and positioning of drones and pilots. It supports multi-mobile terminal alarm push, facilitating team coordinated response, and provides reliable detection data support for investigation, evidence collection, and illegal intrusion handling.
3.4 Technical Parameters
| Number |
Name |
Performance Indicators |
Remarks |
-
|
Detection Types |
DJI, Autel, Hubsan and other mainstream drones, as well as FPV racing drones, DIY drones, etc. |
|
-
|
Frequency Range |
70 MHz~6.2 GHz Full-band scanning (spectrum analysis function) |
|
-
|
RID/DID Parsing and Positioning Models |
DJI full series, partial Autel models |
|
-
|
Consumer Drone Detection Range |
Mainstream models (DJI/Autel)5 km, FPV drones ≥2 km (line-of-sight environment, electromagnetic background noise -90 dB~-95 dB, FPV power ≥2.5 W) |
|
-
|
DID/RID Positioning Range |
DID ≥10 km (O2, O4 protocol models 5 km, RID ≥2 km (line-of-sight environment, electromagnetic ambient noise: -90 dB~-95 dB) |
|
-
|
Positioning Accuracy |
≤5m (line-of-sight environment, electromagnetic background noise -90~-95 dB, drone altitude 100 m-300 m, target drone is DJI series) |
|
-
|
FPV Video Transmission Detection |
Supports all analog video transmission detection within 500 MHz-6.2 GHz band, real-time video recording and interception |
Optional |
-
|
FPV Detection Radius |
≥1.5 km (line-of-sight, FPV analog video transmission transmit power ≥2.5 W; drone altitude ≥100 m) |
Optional |
-
|
Video Interception Range |
≥1.5 km (FPV analog video transmission transmit power ≥2.5 W, drone altitude 100 m) |
Optional |
-
|
Power Supply |
Lithium battery power supply: 12V-25 Ah/220 V power adapter |
|
-
|
Battery Endurance |
≥6h (main unit) |
|
-
|
Product Weight |
≤8.5 kg |
|
-
|
Product Dimensions |
283 mm×114 mm×380 mm (L×W×H) |
|
4.Product Features and FunctionsFull-Band Detection: 70 MHz~6.2 GHz full-band detection;
Parsing and Positioning: Monitoring of multi-dimensional information including drone position (latitude/longitude, azimuth), speed, flight track, and remote controller position (latitude/longitude, azimuth);
FPV Video Interception: Equipped with analog video transmission interception function, capable of viewing "first-person perspective" to analyze FPV intrusion targets and real-time dynamics;
Superior Detection Capability: Detection and decoding range up to 5 km;
Multi-Terminal Alarm Push: Multi-mobile terminal alarm information push, team coordination, efficient response;
Multi-Scenario Application: Supports backpack, fixed, and vehicle-mounted usage modes;4. Device Structure and Components.
5.Product Structure and Components

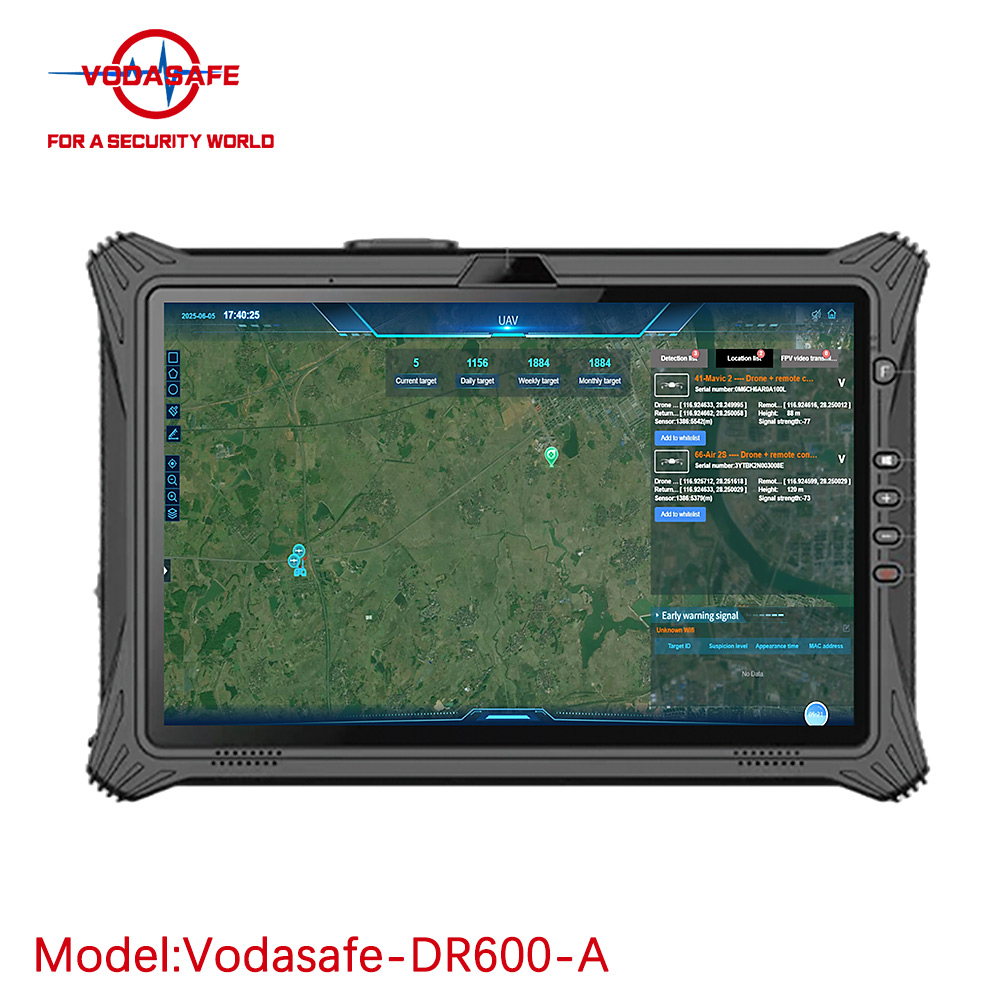

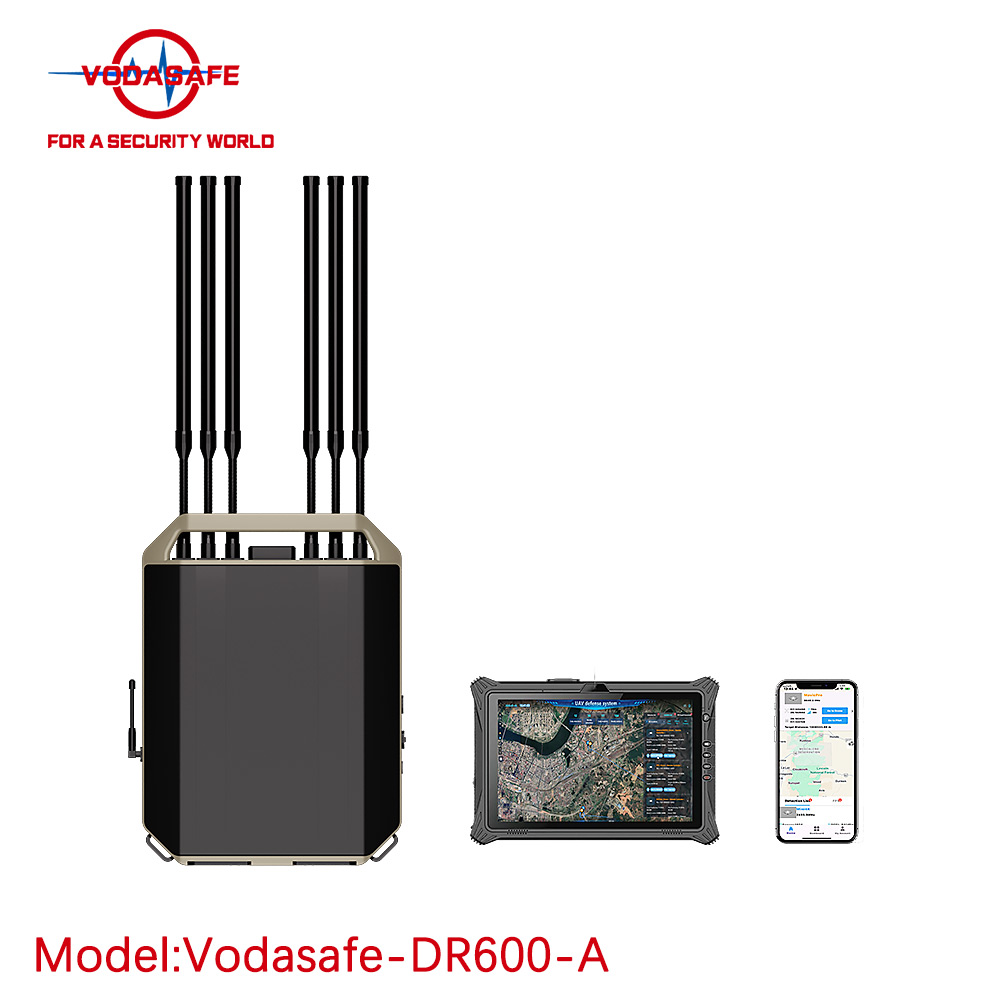

This product consists of antenna (×7) units, radio detection module, video interception module, PC terminal, main enclosure, power components, and backpack.

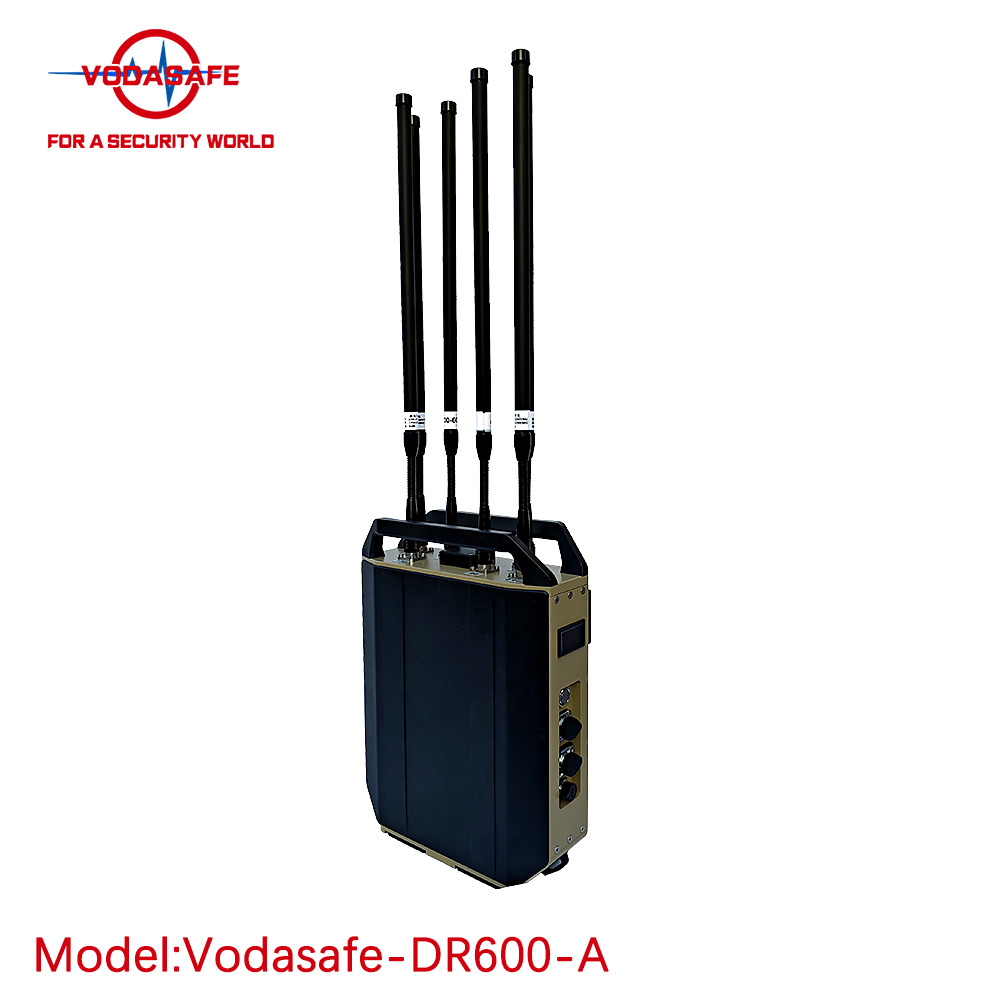

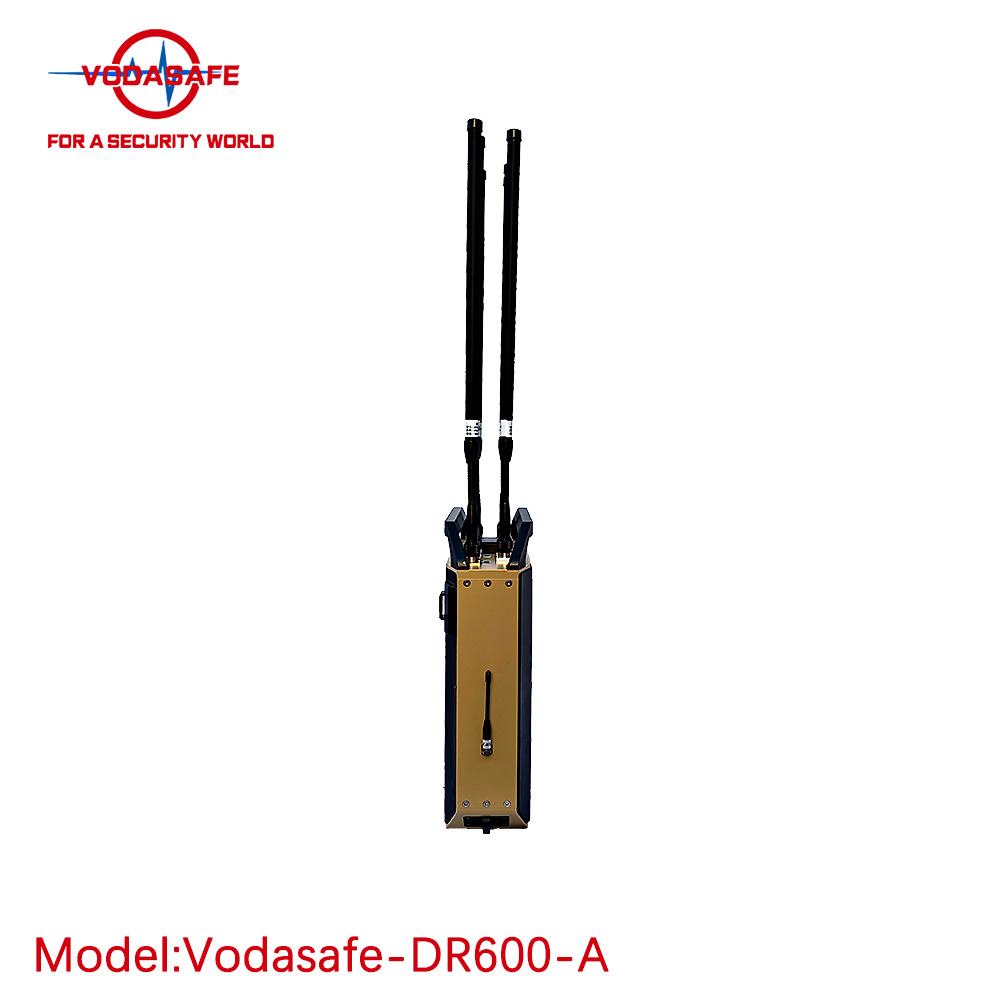

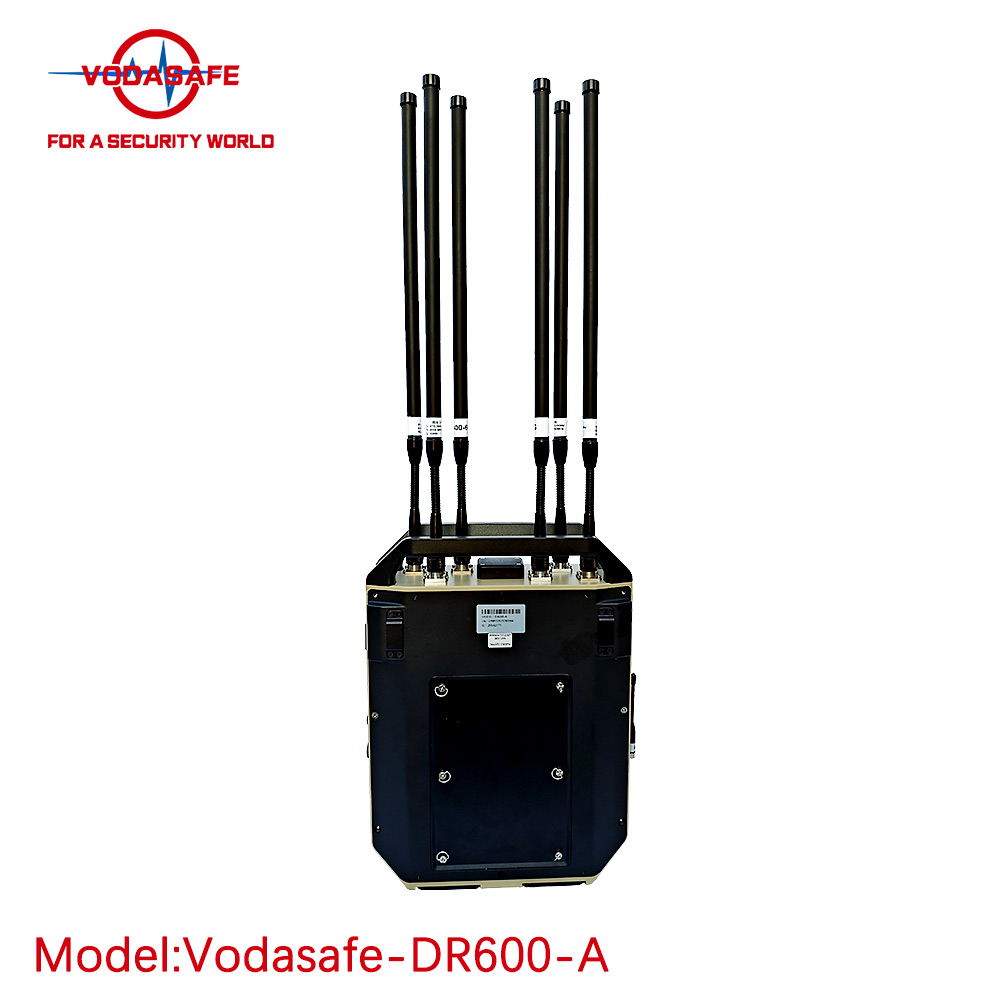

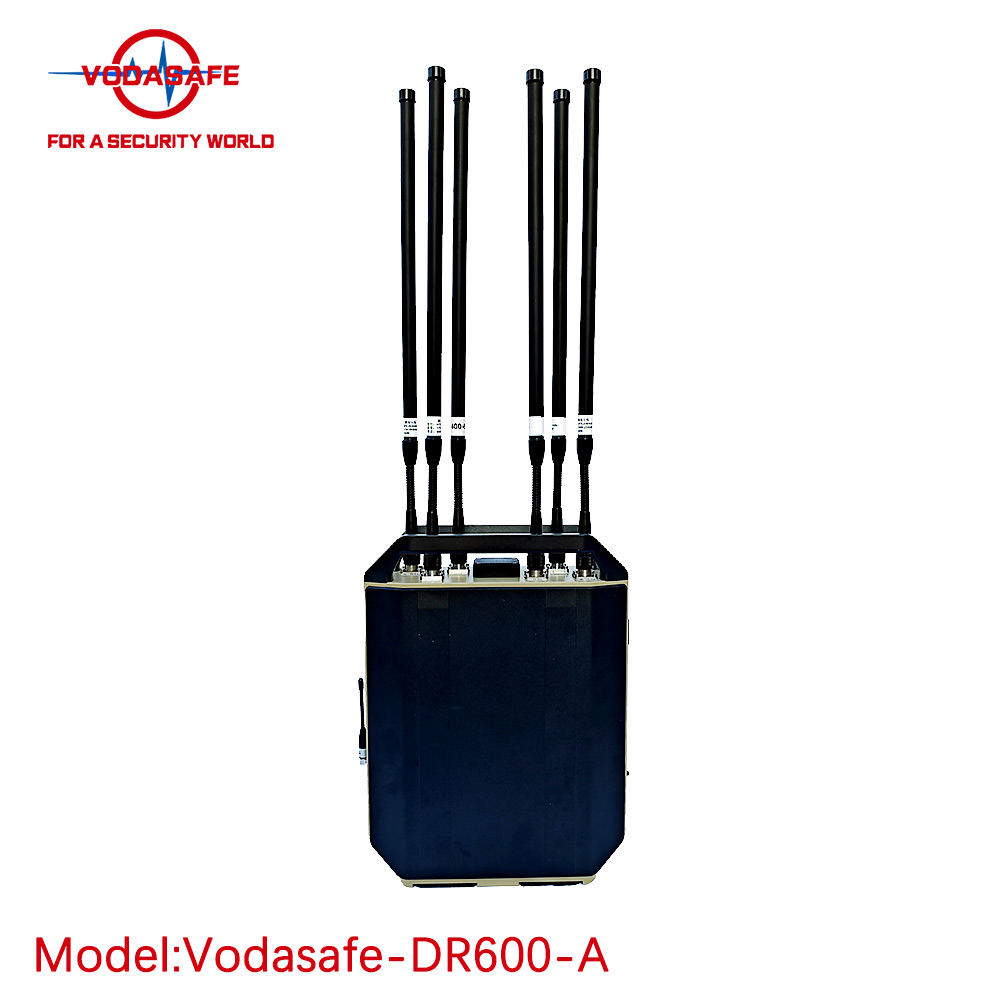

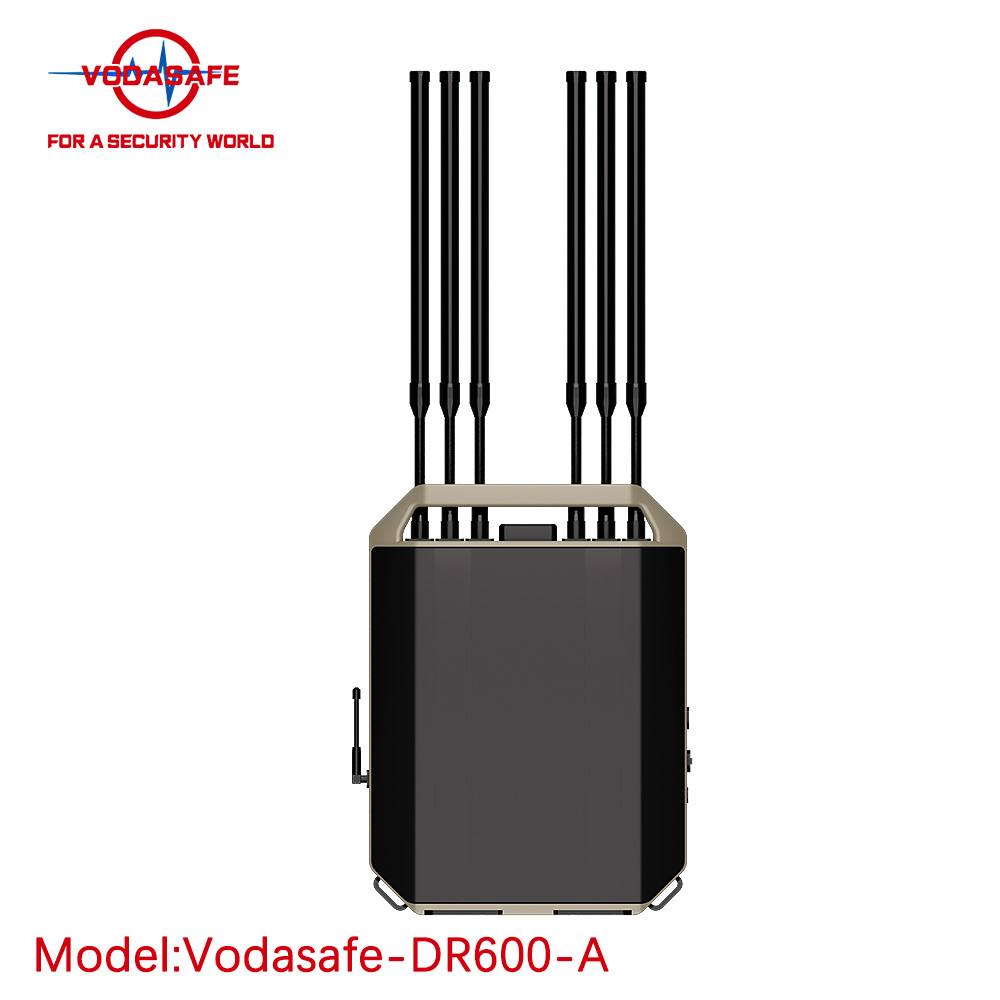

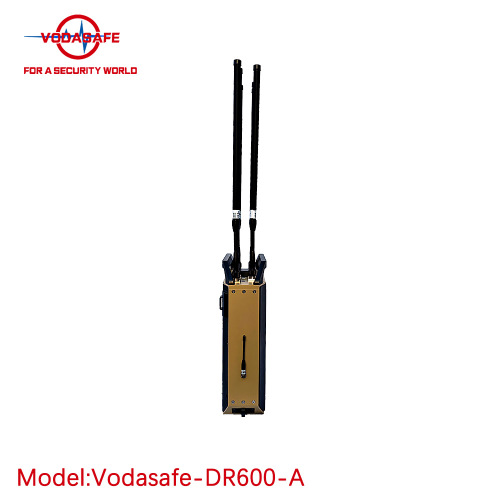

5.1 Product Four-View Drawings
5.2 Device List
| Serial number |
Product name |
Product picture |
Number |
Size(mm) |
Weight (kg) |
| 1 |
Main Unit |
 |
1 |
283×114×380 (L×W×H) |
7.5 |
| 2 |
Antenna |
 |
6 |
16×500 (Dia.×H) |
0.15 |
| 3 |
Charger |
 |
1 |
/ |
0.25 |
| 4 |
Backpack |
 |
1 |
337×475 (Dia.×H) |
0.65 |
| 5 |
Detection Unit Flight Case |
 |
1 |
550×400×240 (L×W×H) |
3.8 |
| 6 |
WIFI Antenna |
 |
1 |
/ |
Negligible |
| 7 |
Network Cable |
 |
2 |
5m |
0.1 |
6.Product Control and Interfaces
6.1Product Interfaces
Product interfaces are shown in the following diagram:
| Interface No. |
Interface Name and Description |
| 1 |
Power Switch Button |
| 2 |
Data Interface (TYPE-C) |
| 3 |
Local Area Network Port (LAN Port) |
| 4 |
Wide Area Network Port (WAN Port) |
| 5 |
2-pin 12V Charging Power |
| 6 |
6 GHz Detection Antenna |
| 7 |
5.8 GHz Detection Antenna |
| 8 |
GPS Antenna |
| 9 |
2.4 GHz Detection Antenna |
| 10 |
5.8 GHz Detection Antenna |
| 11 |
5 GHz Detection Antenna |
| 12 |
WIFI Antenna |
Note: The two 5.8 GHz antennas support interchangeable insertion without distinction.
6.2Product Interface Definitions
| Interface Type |
Specifications |
Purpose |
| Power Interface |
2-pin power cable (12 V power adapter) |
Charging the device or direct power supply |
| Network Interface |
2×RJ45 ports (LAN/WAN, 1 each) |
Local/remote network connection |
| Data Interface |
Type-C |
Direct data transmission between device and terminal, parameter debugging |
